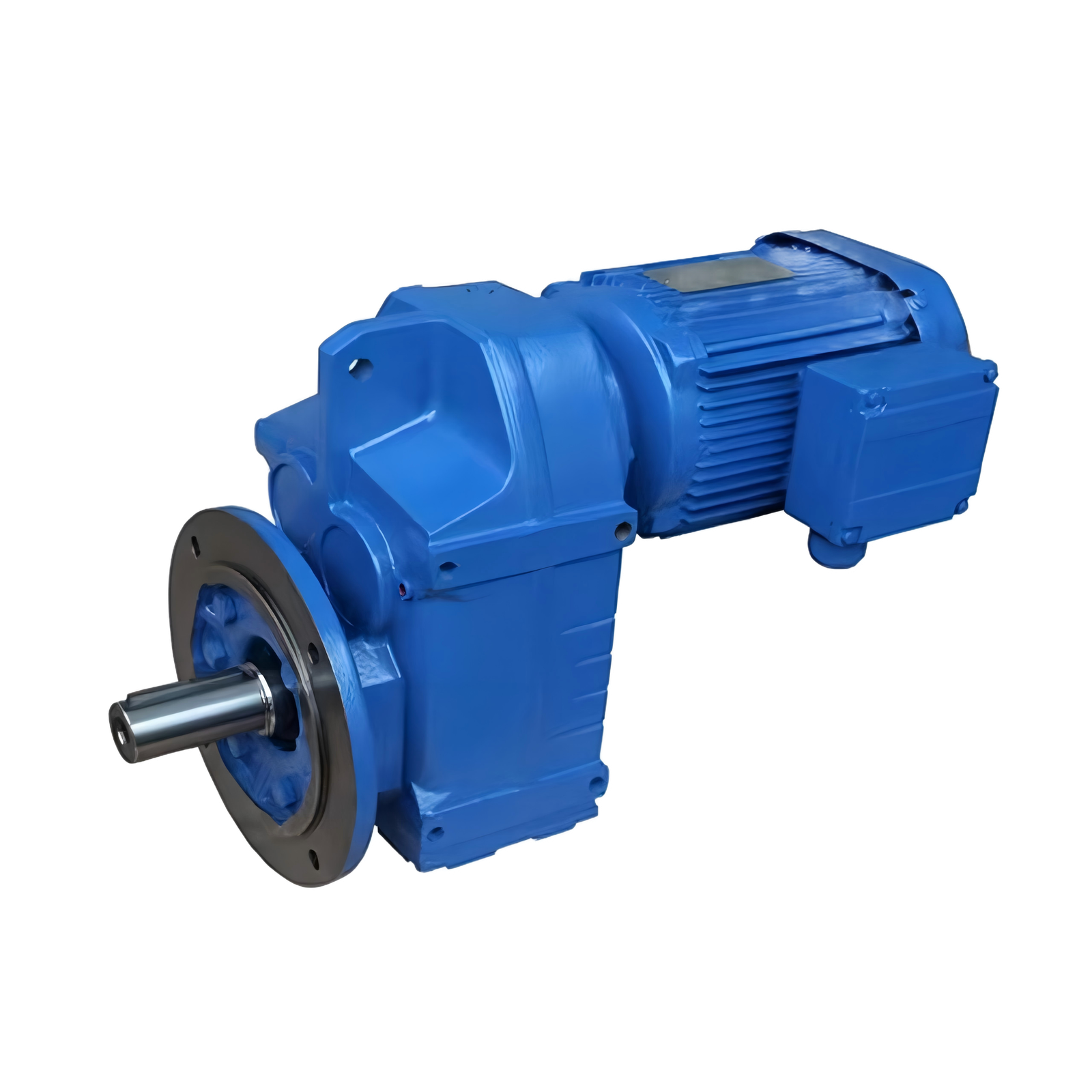

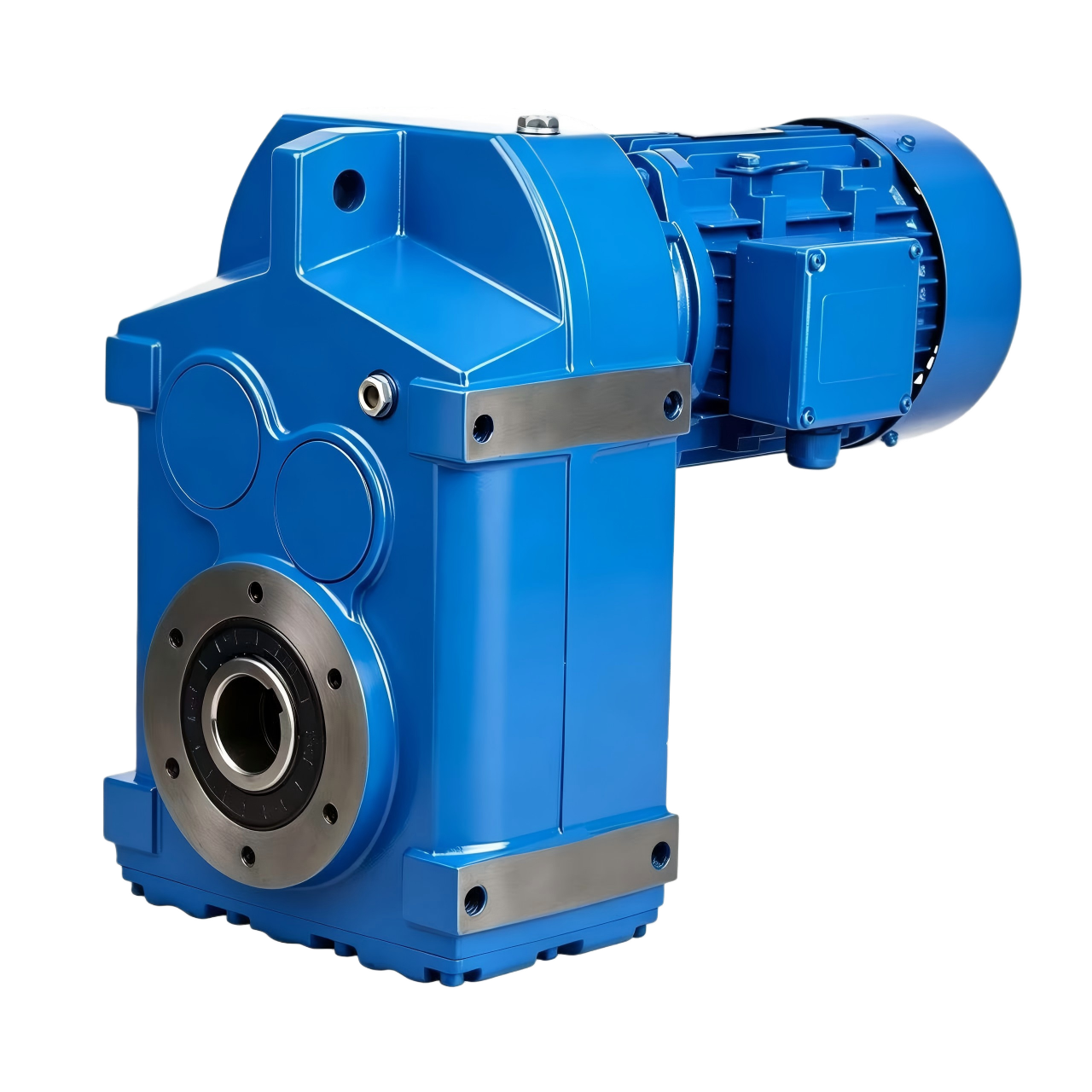

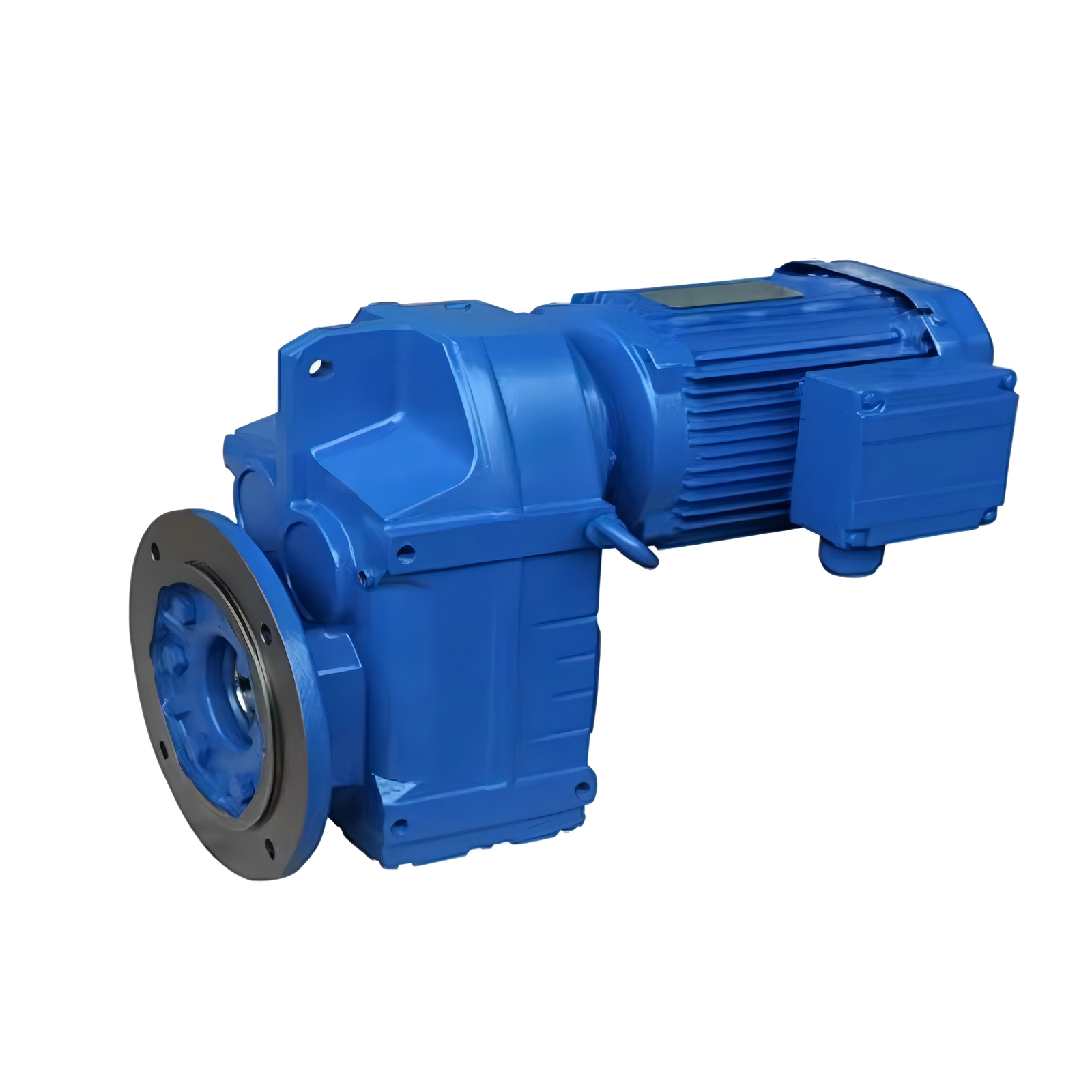

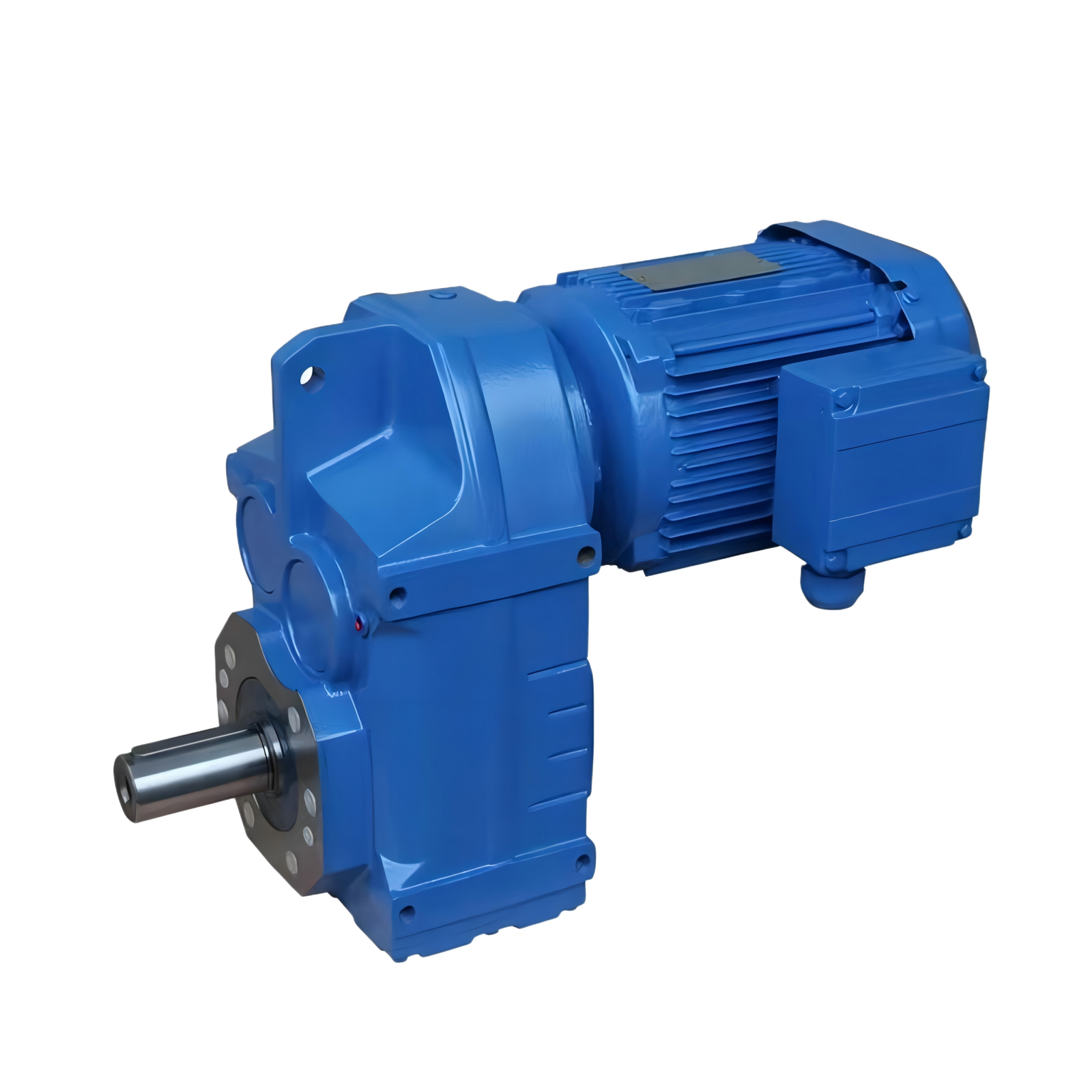

F Series Parallel Shaft Helical Gear Motor
· High-Efficiency Synchronous Drive
· Compact Parallel-Shaft Design
· High Torque & Low Noise
· Modular & Versatile Application
■ Type Designations
F①
37②
-
Y③
0.55-4P④
-
24.99⑤
-
M1⑥
-
180°⑦
-
A⑧
-
CW⑨
| Item | Technical Specification & Meaning |
|---|---|
| ① Gear units type | Parallel shaft-helical gear units |
| ② Structure |
Shaft-mounted with keywayF
Flanged hollow shaftFA
Hollow shaft with shrink diskFT
Shaft-mounted extended bearing hubFH
B5 Flange-mounted solid shaftFF
|
| ③ Size | (see selection table) |
| ④ Motor code |
Ordinary(renew)Y(Y2)
Flame-proofB
Direct currentZ
BrakeYEJ
|
| ⑤ Motor power, pole | (see selection table) |
| ⑥ Ratio | (see selection table) |
| ⑦ Mounting position | M1, M2, M3, M4, M5, M6 |
| ⑧ Position of motor thermal box | 0°, 90°, 180°, 270° |
| ⑨ Rotate direction | Clockwise (CW), Counter clockwise (CCW) |

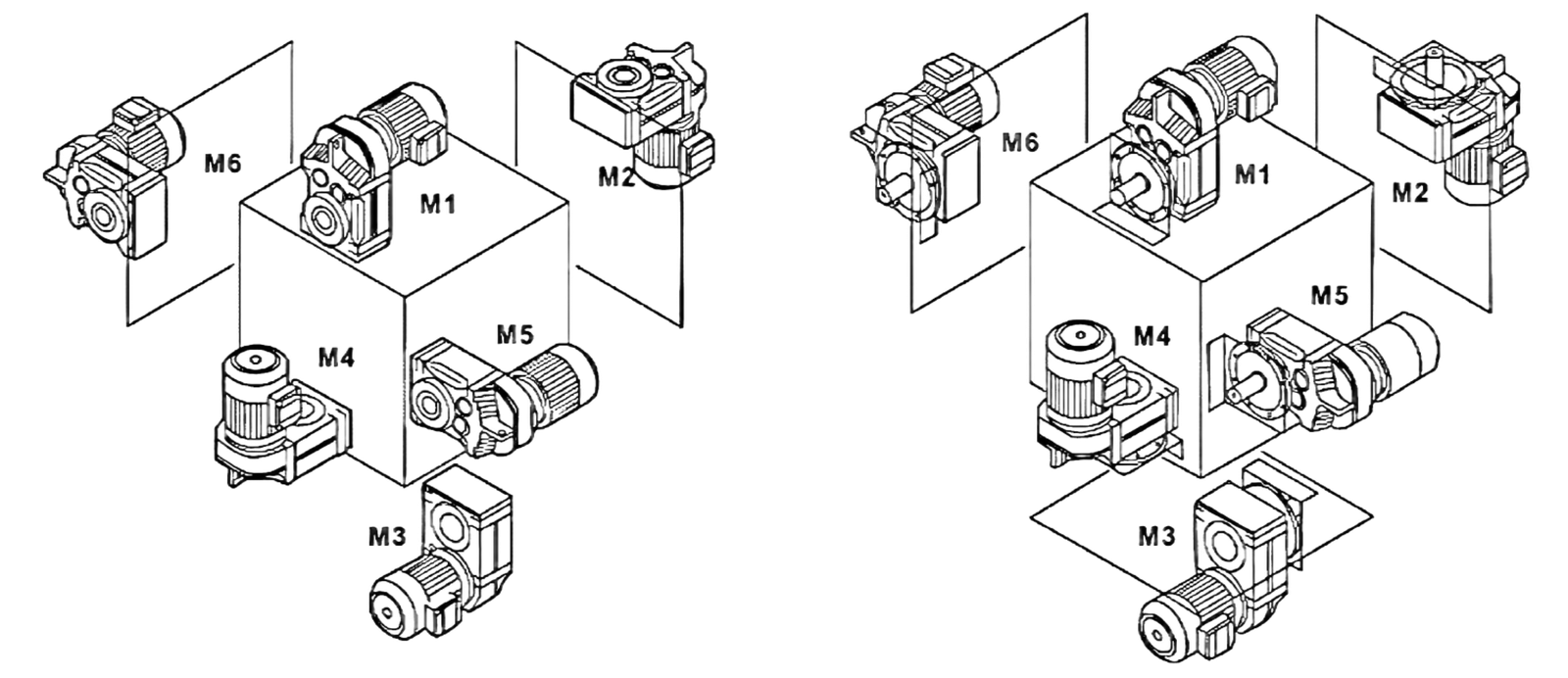

Mounting Positions (M1-M6)

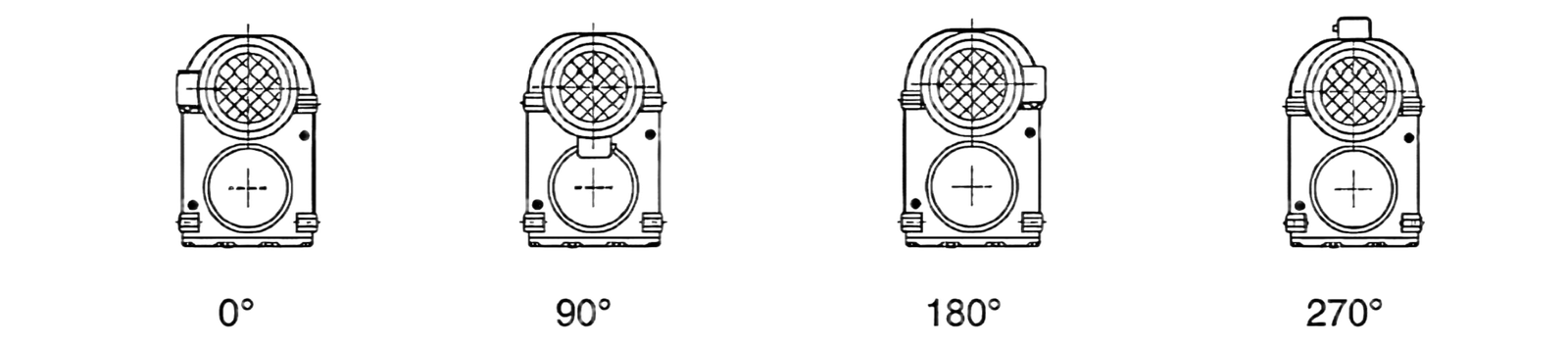

Terminal Box Position (0°-270°)
■ Technical Parameters & Lubrication Data
1. Input Power Rating and Permissible Torque
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Structure | F | FA | FT | FH | FF | |||||||||
| Input power (kW) | 0.18~3.0 | 0.18~3.0 | 0.18~5.5 | 0.18~5.5 | 0.37~11 | 0.75~22 | 1.1~30 | 3~45 | 7.5~90 | 11~200 |
| Permissible torque (N.m) | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 |
2. Gear Unit Weight (kg)
| Size | F37 | F47 | F57 | F67 | F77 | F87 | F97 | F107 | F127 | F157 |
| Weight (kg) | 13 | 23 | 31 | 38 | 67 | 95 | 150 | 270 | 430 | 720 |
* The weights are mean values, only for reference.
3. Lubrication Table (Fill quantity in liters)
| Size | M1 | M2 | M3 | M4 | M5 | M6 |
| ■ F..., FF... Series | ||||||
| F37/FF37 | 1 | 1 | 1.2 | 1.2 | 0.7 | 0.7 | 1.2 | 1.3 | 1 | 1 | 1.1 | 1.1 |
| F47/FF47 | 1.5 | 1.6 | 1.8 | 1.9 | 1.1 | 1.1 | 1.9 | 1.9 | 1.5 | 1.5 | 1.7 | 1.7 |
| F57/FF57 | 2.6 | 2.8 | 3.7 | 3.8 | 2.1 | 2.1 | 3.5 | 3.7 | 2.8 | 2.9 | 2.9 | 3 |
| F67/FF67 | 2.7 | 2.7 | 3.8 | 3.8 | 1.9 | 1.9 | 3.8 | 3.8 | 2.9 | 2.9 | 3.2 | 3.2 |
| F77/FF77 | 5 | 5.1 | 7.3 | 7.3 | 4.3 | 4.3 | 8 | 8.1 | 6 | 6 | 6.3 | 6.3 |
| F87/FF87 | 10 | 10.3 | 13.0 | 13.2 | 7.7 | 7.8 | 13.8 | 14.1 | 10.8 | 11 | 11 | 11.2 |
| F97/FF97 | 18.5 | 19 | 22.5 | 22.5 | 12.6 | 12.6 | 25.2 | 25.5 | 18.5 | 18.9 | 20 | 20.5 |
| F107/FF107 | 24.5 | 25.5 | 32 | 32 | 19.5 | 19.5 | 37.5 | 38.5 | 27 | 27.5 | 27 | 28 |
| F127/FF127 | 40.5 | 41.5 | 55 | 56 | 34 | 34 | 61 | 63 | 46.5 | 46.5 | 47 | 49 |
| F157/FF157 | 69 | 72 | 104 | 105 | 63 | 64 | 105 | 106 | 86 | 87 | 78 | 79 |
| ■ FA..., FAF..., FAZ... Series | ||||||
| FA37, FAF37, FAZ37 | 1.0 | 1.5 | 1.0 | 1.5 | 1.0 | 1.0 |
| FA47, FAF47, FAZ47 | 1.6 | 2.2 | 1.5 | 2.2 | 1.6 | 1.6 |
| FA57, FAF57, FAZ57 | 2.8 | 3.9 | 2.6 | 3.9 | 2.8 | 2.8 |
| FA67, FAF67, FAZ67 | 2.7 | 4.1 | 2.7 | 4.2 | 2.7 | 2.7 |
| FA77, FAF77, FAZ77 | 5.4 | 7.7 | 5.4 | 8.4 | 5.4 | 5.4 |
| FA87, FAF87, FAZ87 | 10.8 | 15.0 | 10.8 | 16.5 | 10.8 | 10.8 |
| FA97, FAF97, FAZ97 | 19.0 | 26.5 | 19.0 | 29.5 | 19.0 | 19.0 |
| FA107, FAF107, FAZ107 | 26.5 | 37.0 | 26.5 | 41.0 | 26.5 | 26.5 |
| FA127, FAF127, FAZ127 | 44.0 | 61.0 | 44.0 | 67.0 | 44.0 | 44.0 |
| FA157, FAF157, FAZ157 | 75.0 | 108.0 | 75.0 | 117.0 | 75.0 | 75.0 |
■ Features For F Series Parallel Shaft Helical Gear Motor
The F Series Helical Gear Synchronous Motor integrates cutting-edge synchronous technology with a space-saving parallel-shaft design, delivering exceptional energy efficiency, high torque density, and ultra-quiet operation. Engineered with high-precision ground gearing, it guarantees maximum mechanical stability and long-term durability under heavy-duty industrial conditions. Featuring versatile modular mounting options, this motor provides a reliable, cost-effective drive solution perfectly tailored for modern automation, conveyor systems, and space-constrained machinery.
