250 Brushed Horizontal Floor Washer Machine
· Engineered for AGVs and AMRs to optimize automated warehouse workflows.
· Combines drive motor, steering mechanism, and precision gearbox into a compact module.
· Delivers smooth omnidirectional movement for effortless maneuvering in tight spaces.
· Provides high torque, precise motion control, and continuous long-term durability.
| Motor Basic Parameter Table | |||
|---|---|---|---|
| Type | Z114D750-36GN-30S/Z114D-750-24GN-30S | Protection Grade | IP20 |
| Rated Voltage | 36V DC/24V DC | Reducer Model | ZHX-250-001 |
| Rated Power | 750W | Reduction Ratio | 22K |
| Rated Current | 28A/42A±10% | Brake Voltage | 36V DC/24V DC |
| Rated Speed | 3000rpm±10% | Brake Torque | 6N.m/8N.m |
| Rated Torque | 2.39N.m | Ambient Temperature | -10℃~+40℃ |
| No-load Current | ≤5A/7.5A | Noise | <60dB(L=100cm) |
| No-load Speed | 3500rpm±10% |
Wire Diagram (View A) |
|
| Work Duty | S2(45min) | ||
| Insulation Resistance | >20MΩ | ||
| Brush Life | 1200h | ||
| Electrical Strength | 660V/S | ||
| Insulation Class | B | ||

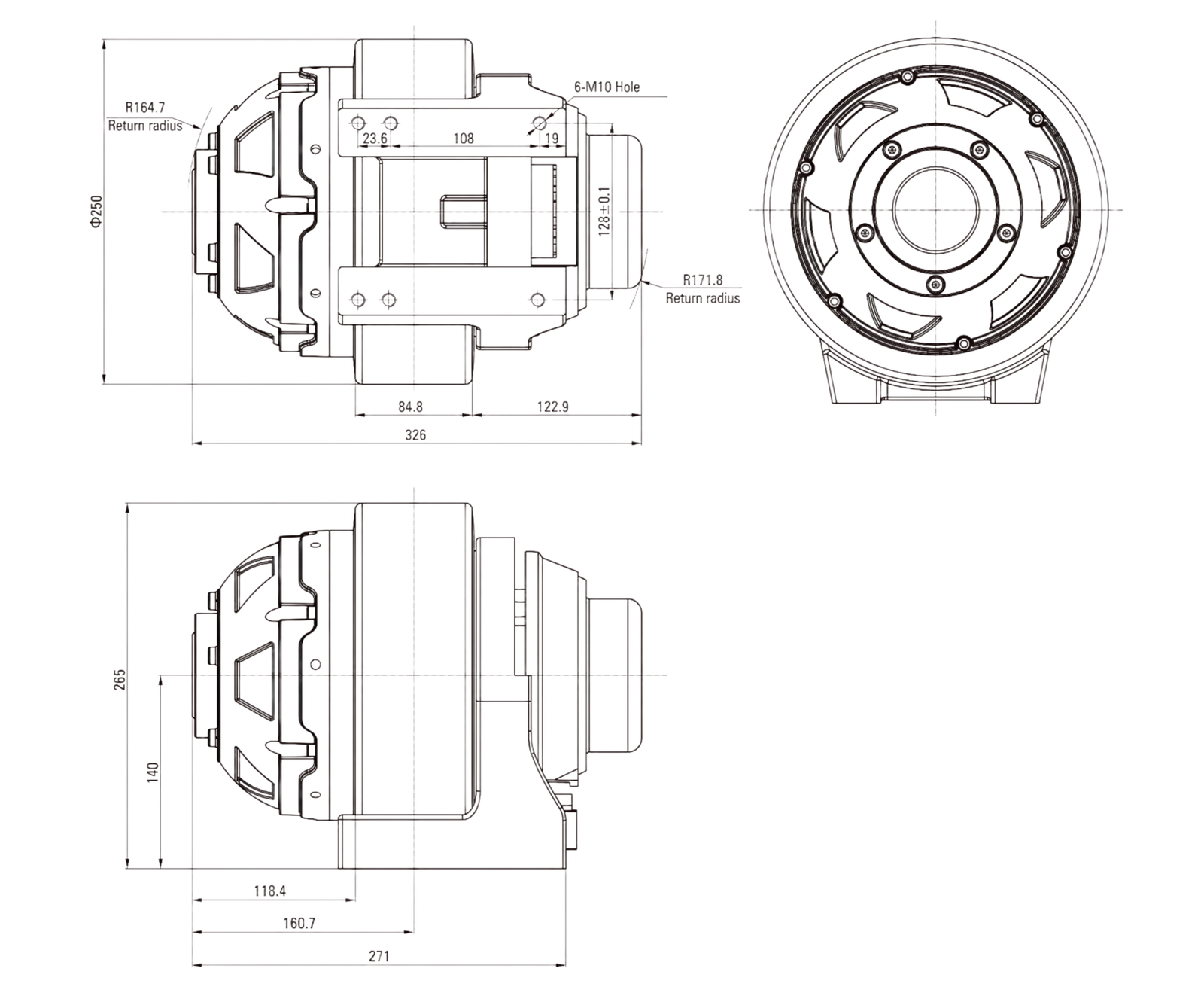

■ Dimensions (Unit mm)
■ Features For Intelligent Logistics and Automated System
Engineered for intelligent logistics and automated material handling, this power unit series offers versatile driving and steering solutions featuring high-torque motors, precision gearboxes, and compact structural designs. Built to deliver exceptional load capacity, flexible maneuverability, and accurate positioning feedback, these heavy-duty units ensure outstanding industrial reliability and smooth control—making them the ideal drive choice for AGVs, AMRs, and mobile equipment in demanding 24/7 operations.
