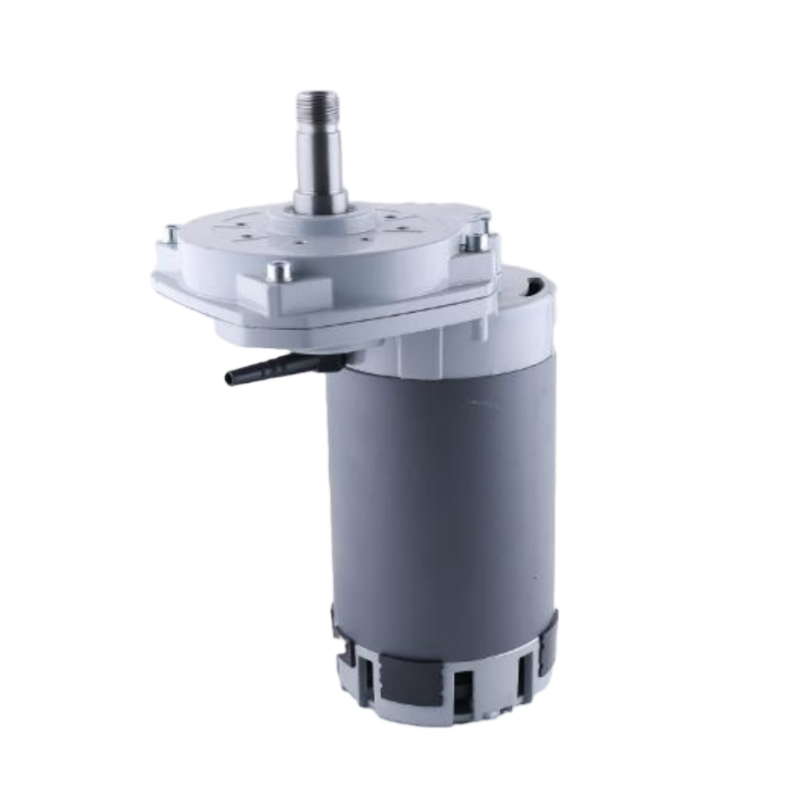

310W Brushed Ground Washing Machine
· Engineered for AGVs and AMRs to optimize automated warehouse workflows.
· Combines drive motor, steering mechanism, and precision gearbox into a compact module.
· Delivers smooth omnidirectional movement for effortless maneuvering in tight spaces.
· Provides high torque, precise motion control, and continuous long-term durability.
| Motor Basic Parameter Table | |||
|---|---|---|---|
| Type | ZDSJ-24310GU-18S-N | Protection Grade | IP00 |
| Rated Voltage | 24V DC | Ambient Temperature | -10℃~+40℃ |
| Rated Power | 310W | Noise | <60dB(L=100cm) |
| Rated Current | 16A | Reduction Ratio | 10:1 |
| Rated Speed | 1800rpm±10% | Rated Output Torque | 14.8N.m |
| Rated Torque | 1.64N.m | Efficiency | 90% |
| No-load Current | ≤4A |
Wire Diagram (View A) |
|
| No-load Speed | 2300rpm±10% | ||
| Work Duty | S2-30min | ||
| Insulation Resistance | >20MΩ | ||
| Brush Life | 1000h | ||
| Electrical Strength | 660V/S | ||
| Insulation Class | B | ||
Technical Requirement
- Motor basic parameters are as the parameter table shows;
- The red lead is connected to the positive and the black lead is connected to the negative. Seen from the output shaft, motor turns clockwise. When the lead position is reversed, the motor turns in the opposite direction;
- The working life of the brush is 1000 hours;
- Lead wire length: 650mm±20, model: UL1015, spec: 10AWG.
■ Dimensions (Unit mm)
■ Features For Intelligent Logistics and Automated System
Engineered for intelligent logistics and automated material handling, this power unit series offers versatile driving and steering solutions featuring high-torque motors, precision gearboxes, and compact structural designs. Built to deliver exceptional load capacity, flexible maneuverability, and accurate positioning feedback, these heavy-duty units ensure outstanding industrial reliability and smooth control—making them the ideal drive choice for AGVs, AMRs, and mobile equipment in demanding 24/7 operations.
