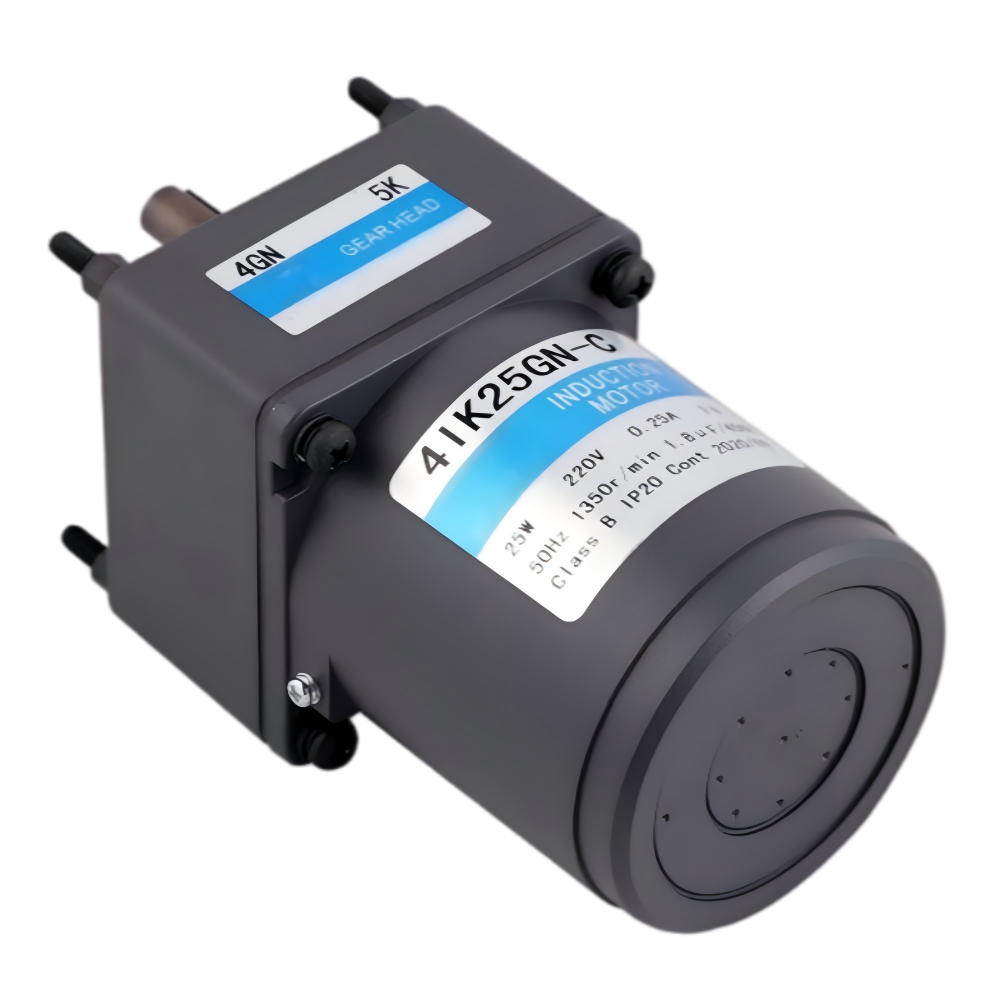

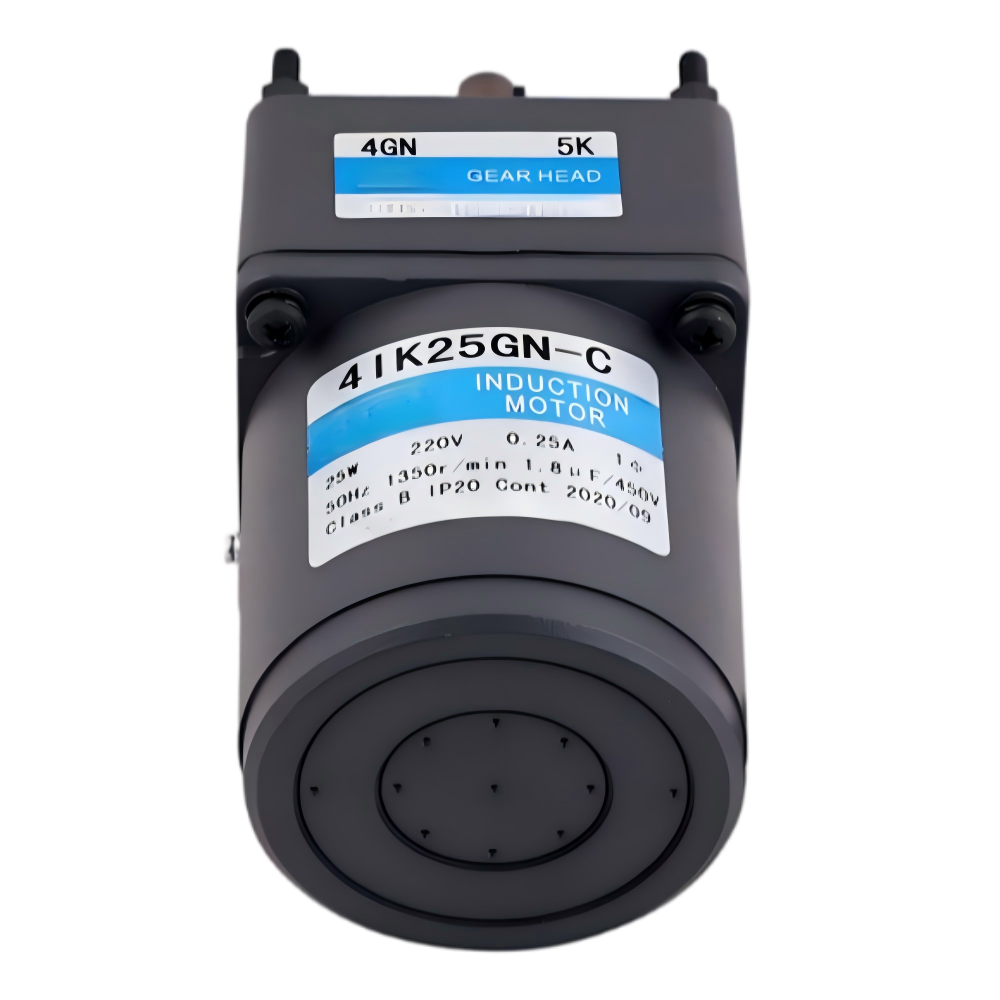

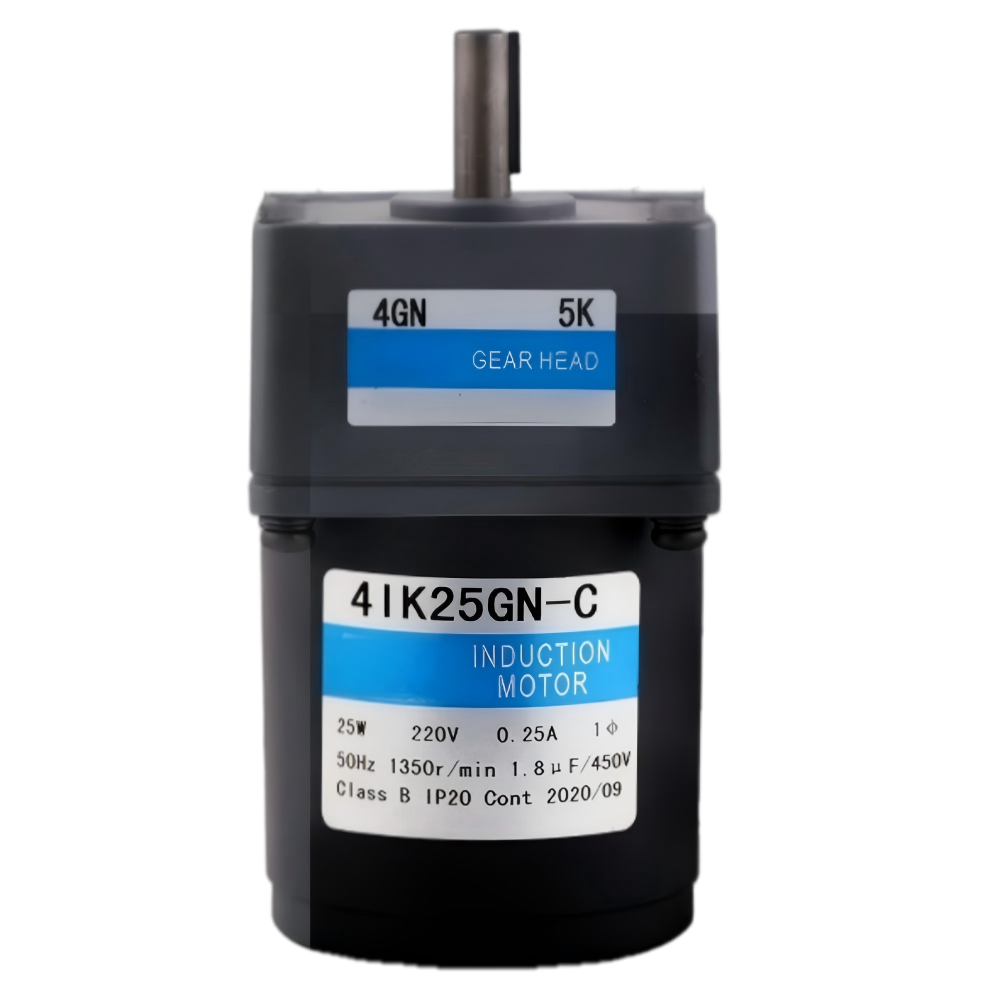

4IK 80mm 25W Micro AC Induction Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
-
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GN②
50③
K④
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Pinion Type | GN: GN Type Gear | GU: GU Type Gear |
| ③ Gear Ratio | 50: Ratio 1:50 (10X denotes decimal gearhead 1:10) |
| ④ Bearing Type | K: Ball Bearing | KB: Ball Bearing for GU Square Case |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Continuous Rating
|
Model Upper: Pinion Shaft / Below: Round Shaft |
Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting Torque mN.m |
Rated Torque mN.m |
Rated Speed r/min |
Capacitor μF |
|
|---|---|---|---|---|---|---|---|---|---|
| Lead Wire Type | Terminal Box Type | ||||||||
| 4IK25GN-A ( 4IK25GN-AT ) |
4IK25A-A ( 4IK25A-AT ) |
25 | 1ph 100 | 50 | 0.500 | 120 | 200 | 1250 | 8.0 |
| 60 | 0.550 | 165 | 1550 | ||||||
| 4IK25GN-E ( 4IK25GN-ET ) |
4IK25A-E ( 4IK25A-ET ) |
25 | 1ph 110 | 60 | 0.450 | 120 | 165 | 1550 | 7.0 |
| 1ph 120 | 0.500 | ||||||||
| 4IK25GN-C ( 4IK25GN-CT ) |
4IK25A-C ( 4IK25A-CT ) |
25 | 1ph 220 | 50 | 0.250 | 120 | 200 | 1250 | 1.8 |
| 1ph 230 | 0.230 | ||||||||
| 4IK25GN-H ( 4IK25GN-HT ) |
4IK25A-H ( 4IK25A-HT ) |
25 | 1ph 220 | 60 | 0.230 | 120 | 165 | 1550 | 1.8 |
| 1ph 230 | |||||||||
| 4IK25GN-S ( 4IK25GN-ST ) |
4IK25A-S ( 4IK25A-ST ) |
25 | 3ph 220 | 50 | 0.185 | 350 | 200 | 1250 | - |
| 60 | 0.170 | 250 | 165 | 1550 | |||||
| 4IK25GN-S3 ( 4IK25GN-S3T ) |
4IK25A-S3 ( 4IK25A-S3T ) |
25 | 3ph 380 | 50 | 0.106 | 350 | 200 | 1250 | - |
| 60 | 0.098 | 250 | 165 | 1550 | |||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□ |
4GN□K | 50Hz | 0.49 | 0.58 | 0.81 | 0.97 | 1.20 | 1.50 | 1.55 | 2.00 | 2.40 | 2.90 | 3.17 | 3.70 | 4.40 | 5.30 | 5.57 | 6.60 | 7.90 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 5.00 | 5.91 | 8.26 | 9.89 | 12.2 | 15.3 | 15.8 | 20.4 | 24.4 | 29.6 | 32.3 | 37.7 | 44.9 | 54.1 | 56.8 | 67.3 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | |||
| 60Hz | 0.40 | 0.48 | 0.67 | 0.80 | 1.00 | 1.20 | 1.25 | 1.70 | 2.00 | 2.40 | 2.64 | 3.00 | 3.60 | 4.30 | 4.49 | 5.40 | 6.50 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | ||
| 4.08 | 4.89 | 6.83 | 8.16 | 10.2 | 12.2 | 12.8 | 17.3 | 20.4 | 24.4 | 26.9 | 30.6 | 36.7 | 43.8 | 45.8 | 55.1 | 66.3 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | |||
■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Induction Motor
1.Generally, micro Induction motor refers to the motor rotated by the induction. Induction motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has simple structure, high efficiency and can rotate continue.
2.The single-phase motor have reverse direction with the rotating's when operated. Only change the direction of single-phase motor rotation after bring the motor to stop.
3.Three-phase motor relies on three-phase supply. It has high efficiency and can get high starting torque.
