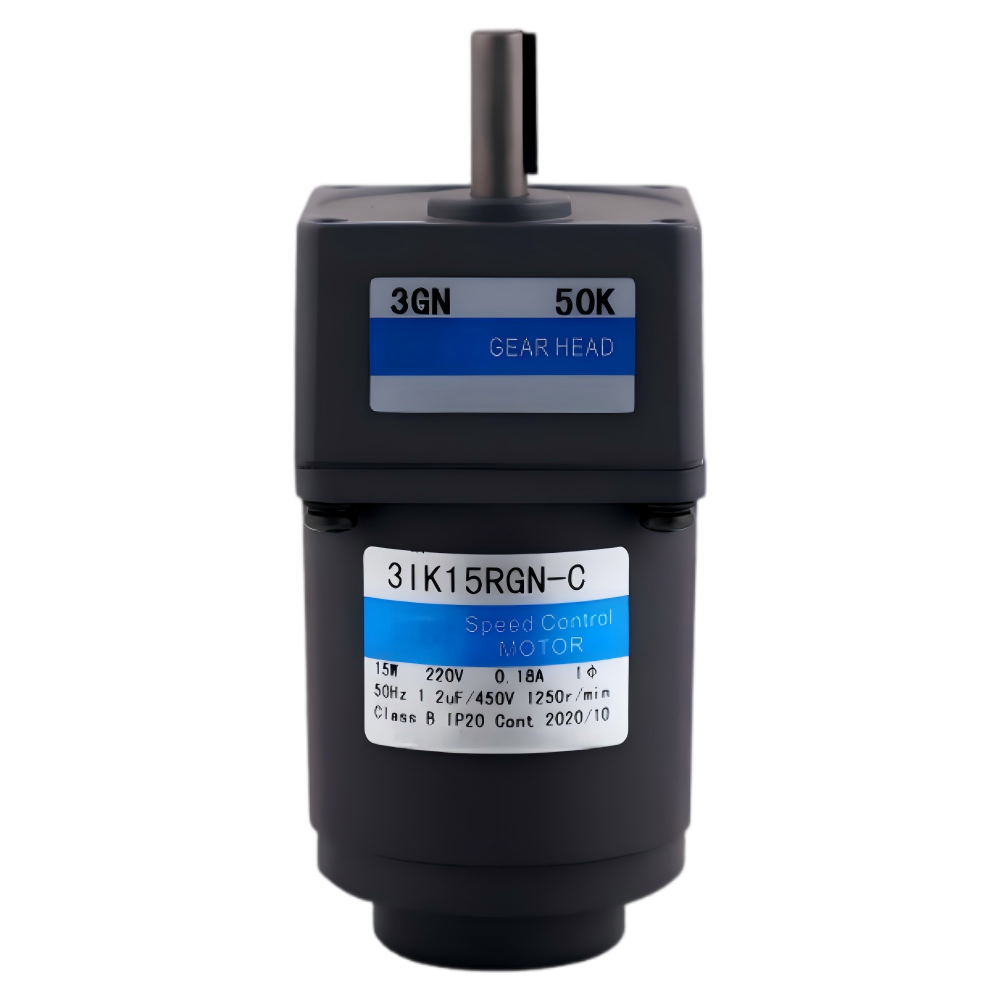

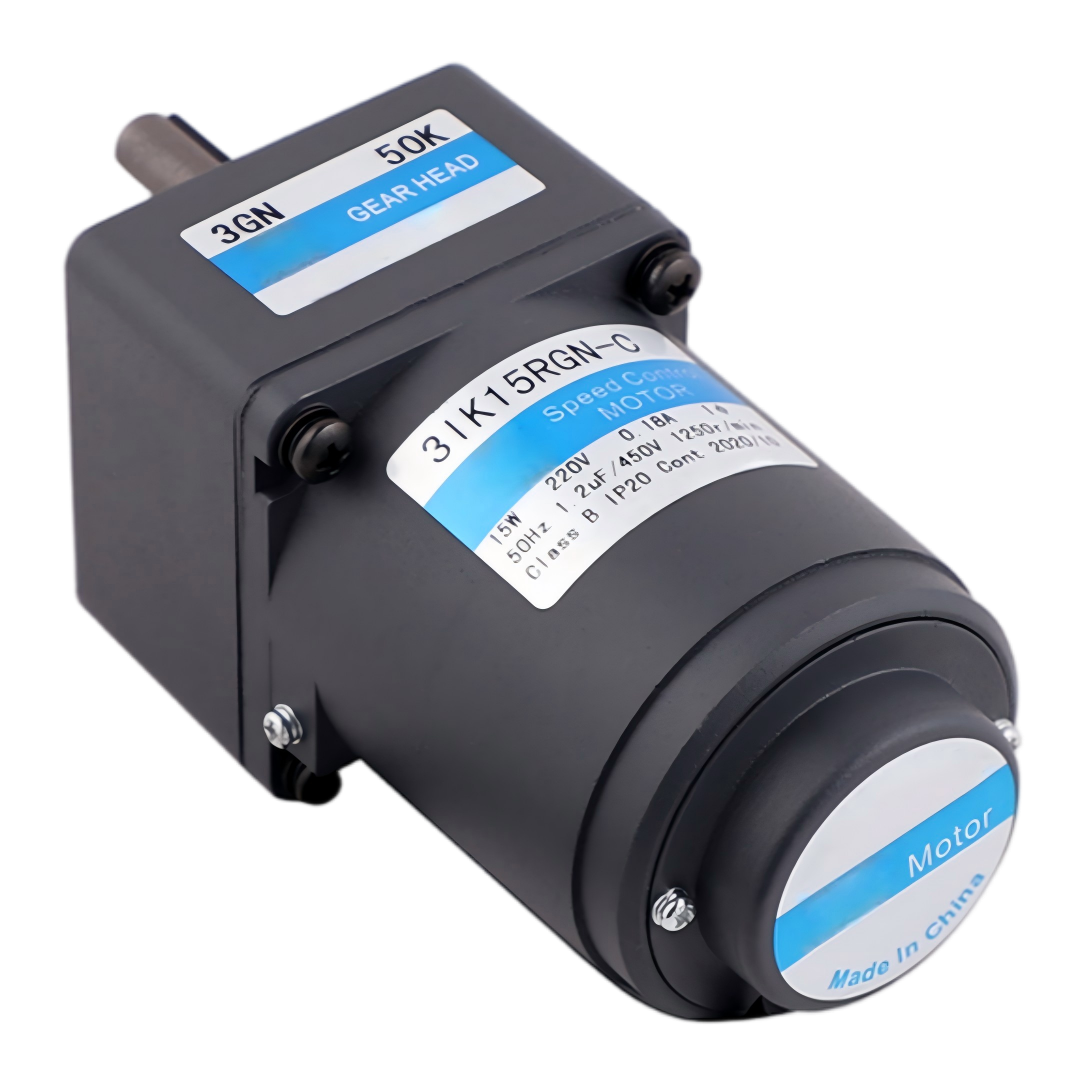

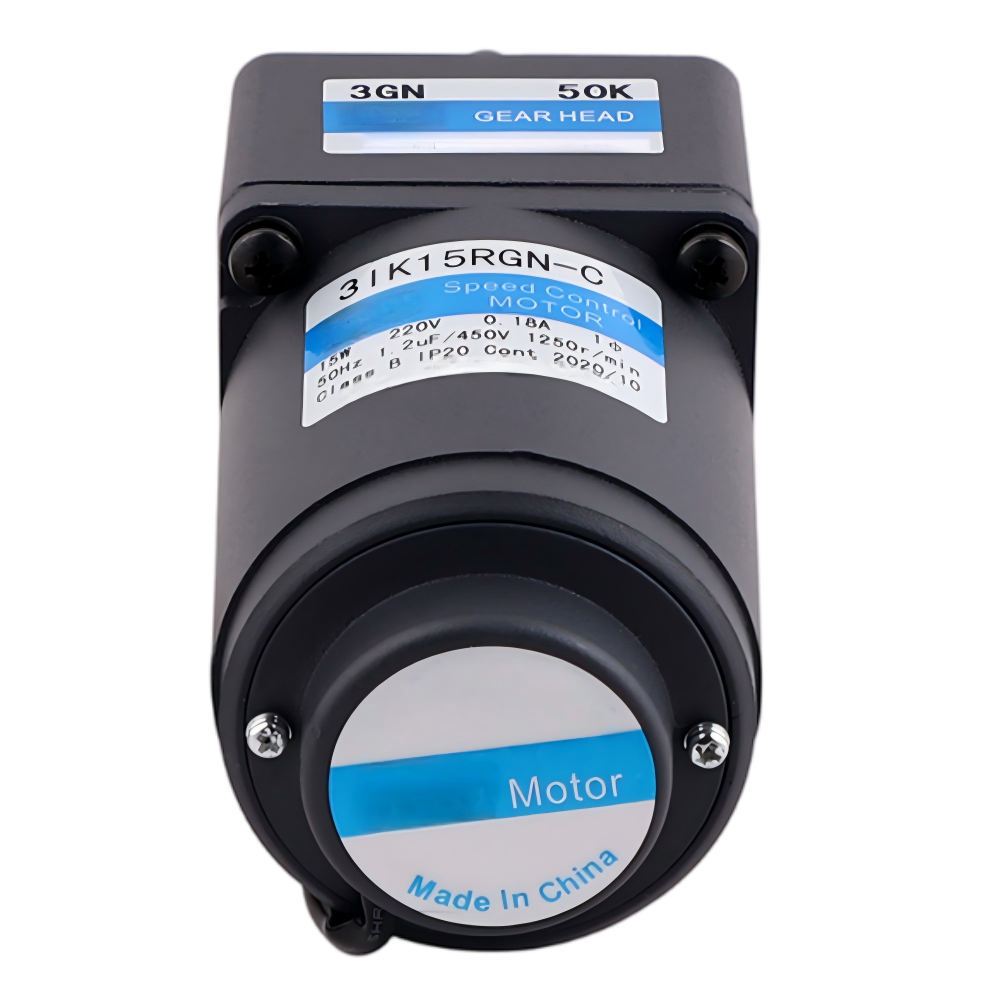

3IK 70mm 15W Micro AC Speed Control Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
–
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GN②
50③
K④
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Pinion Type | GN: GN Type Gear | GU: GU Type Gear |
| ③ Gear Ratio | 50: Ratio 1:50 (10X denotes decimal gearhead 1:10) |
| ④ Bearing Type | K: Ball Bearing | KB: Ball Bearing for GU Square Case |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 3IK15RGN-A | 3IK15RA-A | 15 | 1ph 100 | 50 | 90~1350 | 120 | 35 | 55 | 0.35 | 6.0 |
| 60 | 90~1650 | 0.33 | ||||||||
| 3IK15RGN-E | 3IK15RA-E | 15 | 1ph 110 | 60 | 90~1650 | 125 | 35 | 55 | 0.30 | 5.0 |
| 1ph 120 | 0.32 | |||||||||
| 3IK15RGN-C | 3IK15RA-C | 15 | 1ph 220 | 50 | 90~1350 | 120 | 35 | 54 | 0.18 | 1.2 |
| 1ph 230 | 0.20 | |||||||||
| 3IK15RGN-H | 3IK15RA-H | 15 | 1ph 220 | 60 | 90~1650 | 85 | 35 | 52 | 0.16 | 1.2 |
| 1ph 230 | 105 | 55 | 0.15 | |||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: “-A” it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
3IK15RGN-A 3IK15RGN-E 3IK15RGN-C 3IK15RGN-H |
3GN□K | 50Hz | 0.30 | 0.36 | 0.51 | 0.61 | 0.76 | 0.91 | 0.97 | 13.0 | 15.0 | 18.0 | 1.94 | 2.30 | 2.70 | 3.30 | 3.48 | 4.10 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 |
| 3.06 | 3.67 | 5.20 | 6.22 | 7.75 | 9.28 | 9.90 | 13.2 | 15.3 | 18.3 | 19.8 | 23.4 | 27.5 | 33.7 | 35.5 | 41.8 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | |||
| 60Hz | 0.26 | 0.31 | 0.43 | 0.51 | 0.64 | 0.77 | 0.80 | 1.10 | 1.30 | 1.50 | 1.64 | 1.90 | 2.30 | 2.80 | 2.88 | 3.50 | 4.20 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | ||
| 2.65 | 3.16 | 4.38 | 5.20 | 6.53 | 7.85 | 8.16 | 11.2 | 13.2 | 15.3 | 16.7 | 19.3 | 23.4 | 28.5 | 29.4 | 35.7 | 42.8 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 | |||
■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Speed Control Motor
1.lt is a unt of the controller motor.It only needs to connect one time. The speed can be easily adjusted by the potentiometer. The controller is fixed with sped-control loop,capacitor, speed enactment and etc. There is no function of instant stop in the unit.
2.The controller can make the speed variable between 90-1400r/min at 50Hz and 90-1700r/min at 60Hz.
3.Please don’t run motor at low speed for long time avoiding overheat.
