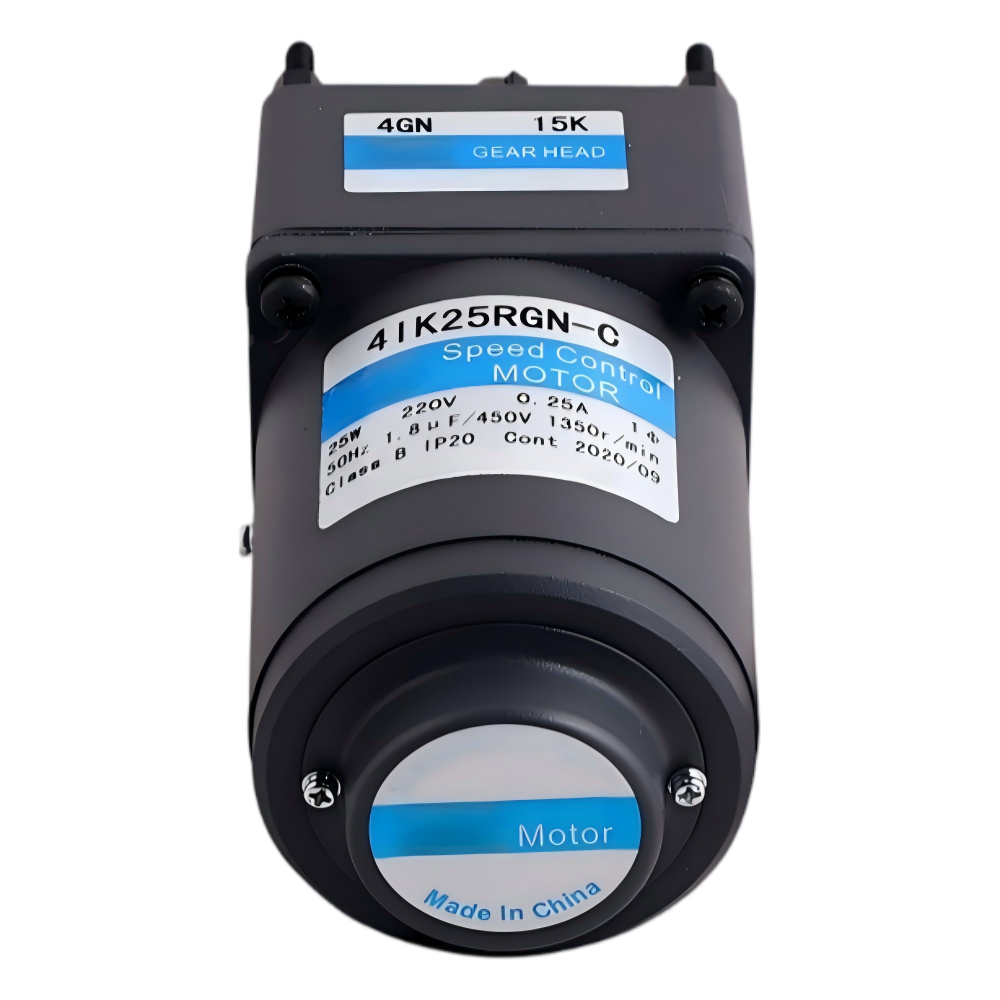

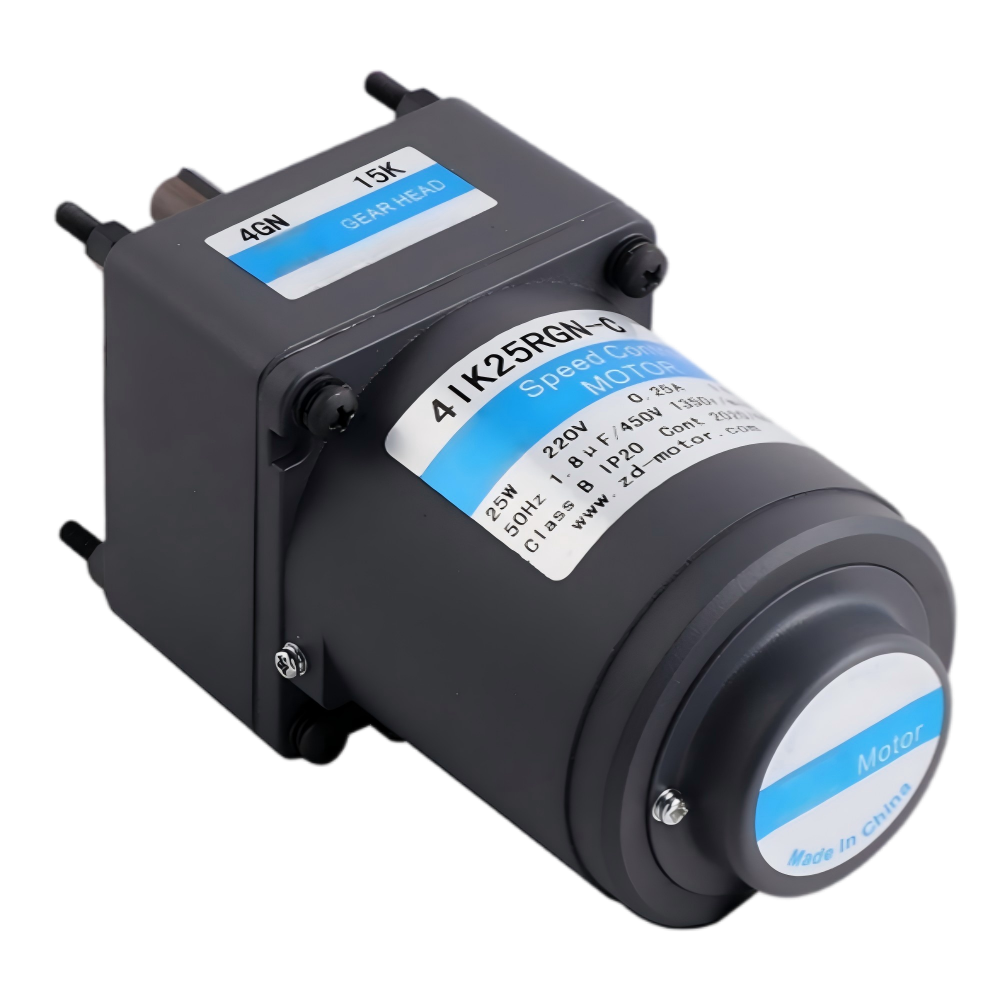

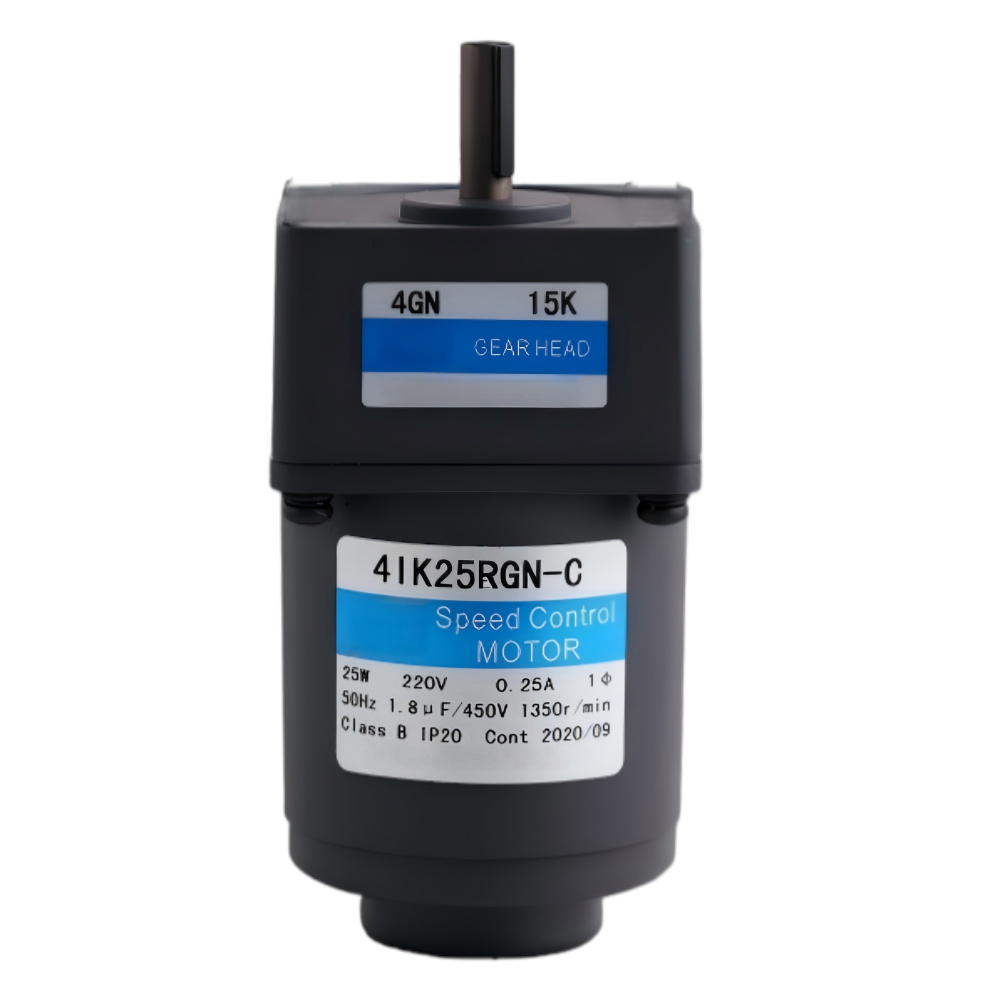

4IK 80mm 25W Micro AC Speed Control Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
–
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GN②
50③
K④
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Pinion Type | GN: GN Type Gear | GU: GU Type Gear |
| ③ Gear Ratio | 50: Ratio 1:50 (10X denotes decimal gearhead 1:10) |
| ④ Bearing Type | K: Ball Bearing | KB: Ball Bearing for GU Square Case |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 4IK25RGN-A | 4IK25RA-A | 25 | 1ph 100 | 50 | 90~1350 | 190 | 47 | 88 | 0.50 | 8.0 |
| 60 | 90~1650 | 0.55 | ||||||||
| 4IK25RGN-E | 4IK25RA-E | 25 | 1ph 110 | 60 | 90~1650 | 190 | 50 | 105 | 0.45 | 7.0 |
| 1ph 120 | 0.50 | |||||||||
| 4IK25RGN-C | 4IK25RA-C | 25 | 1ph 220 | 50 | 90~1350 | 190 | 47 | 88 | 0.25 | 1.8 |
| 1ph 230 | 0.23 | |||||||||
| 4IK25RGN-H | 4IK25RA-H | 25 | 1ph 220 | 60 | 90~1650 | 190 | 45 | 88 | 0.23 | 1.8 |
| 1ph 230 | ||||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: “-A” it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
4IK25RGN-A 4IK25RGN-E 4IK25RGN-C 4IK25RGN-H |
4GN□K | 50Hz | 0.49 | 0.58 | 0.81 | 0.97 | 1.20 | 1.50 | 1.55 | 2.00 | 2.40 | 2.90 | 3.17 | 3.70 | 4.40 | 5.30 | 5.57 | 6.60 | 7.90 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 5.00 | 5.91 | 8.26 | 9.89 | 12.2 | 15.3 | 15.8 | 20.4 | 24.4 | 29.6 | 32.3 | 37.7 | 44.9 | 54.1 | 56.8 | 67.3 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | |||
| 60Hz | 0.40 | 0.48 | 0.67 | 0.80 | 1.00 | 1.20 | 1.25 | 1.70 | 2.00 | 2.40 | 2.64 | 3.00 | 3.60 | 4.30 | 4.49 | 5.40 | 6.50 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | ||
| 4.08 | 4.89 | 6.83 | 8.16 | 10.2 | 12.2 | 12.8 | 17.3 | 20.4 | 24.4 | 26.9 | 30.6 | 36.7 | 43.8 | 45.8 | 55.1 | 66.3 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | |||
■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Speed Control Motor
1.lt is a unt of the controller motor.It only needs to connect one time. The speed can be easily adjusted by the potentiometer. The controller is fixed with sped-control loop,capacitor, speed enactment and etc. There is no function of instant stop in the unit.
2.The controller can make the speed variable between 90-1400r/min at 50Hz and 90-1700r/min at 60Hz.
3.Please don’t run motor at low speed for long time avoiding overheat.
