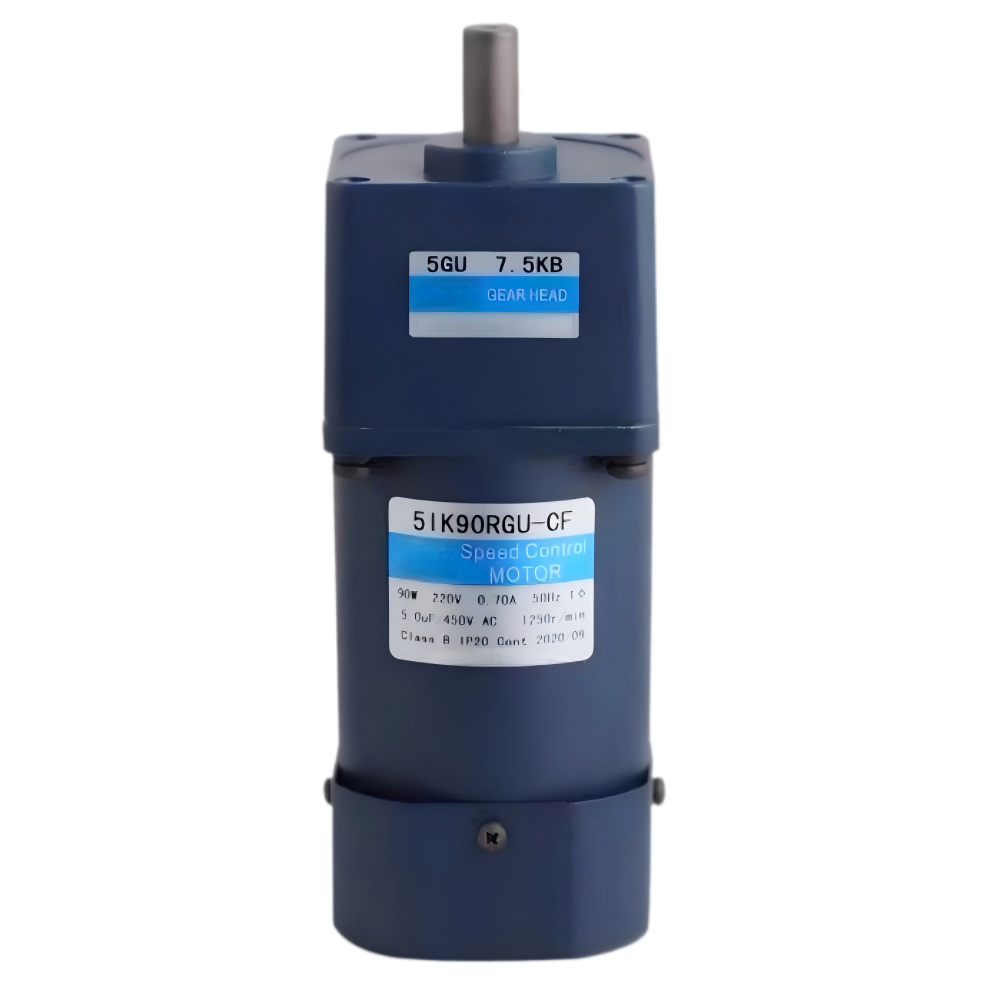

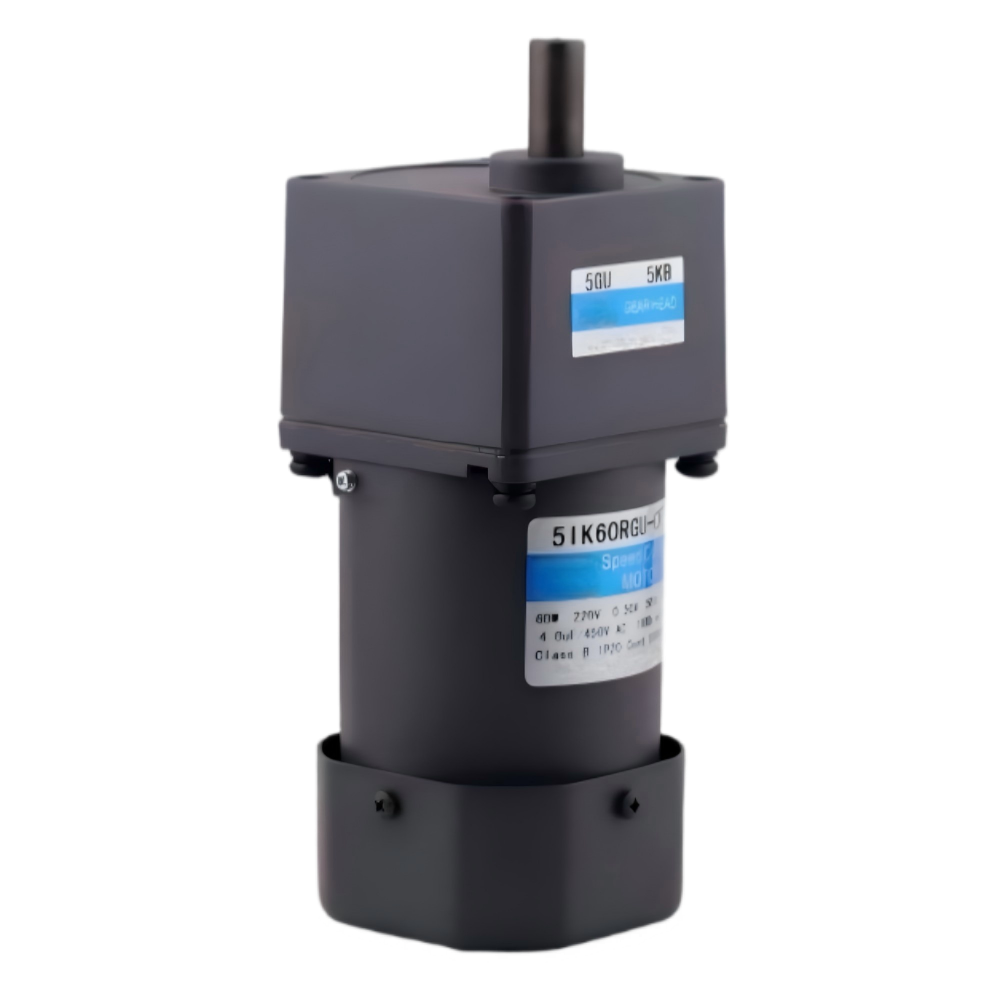

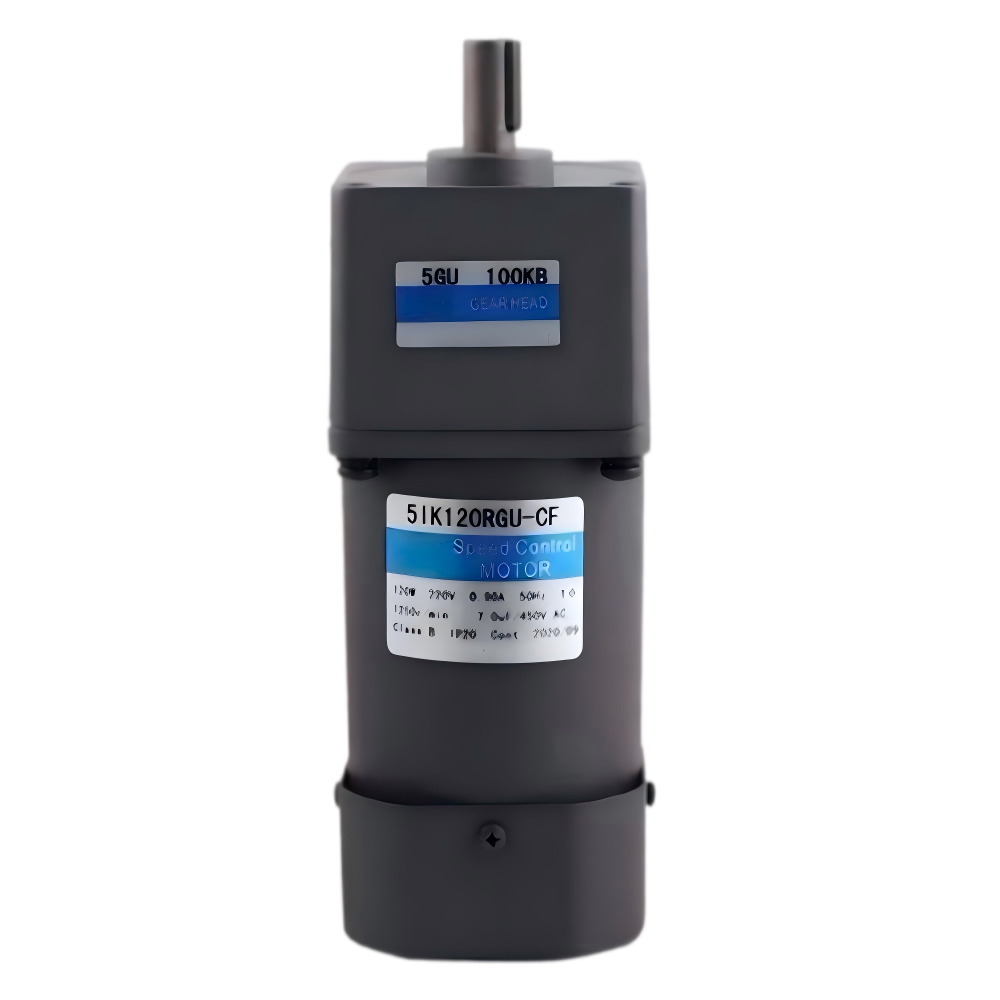

5IK 90mm 60W-120W Micro AC Speed Control Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
-
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GN②
50③
K④
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Pinion Type | GN: GN Type Gear | GU: GU Type Gear |
| ③ Gear Ratio | 50: Ratio 1:50 (10X denotes decimal gearhead 1:10) |
| ④ Bearing Type | K: Ball Bearing | KB: Ball Bearing for GU Square Case |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 5IK60RGU-AF | 5IK60RA-AF | 60 | 1ph 100 | 50 | 90~1350 | 460 | 140 | 265 | 1.00 | 20.0 |
| 60 | 90~1650 | 490 | 160 | 1.10 | ||||||
| 5IK60RGU-EF | 5IK60RA-EF | 60 | 1ph 110 | 60 | 90~1650 | 490 | 160 | 265 | 0.80 | 12.0 |
| 1ph 120 | 0.85 | |||||||||
| 5IK60RGU-CF | 5IK60RA-CF | 60 | 1ph 220 | 50 | 90~1350 | 490 | 140 | 265 | 0.50 | 4.0 |
| 1ph 230 | 0.55 | |||||||||
| 5IK60RGU-HF | 5IK60RA-HF | 60 | 1ph 220 | 60 | 90~1650 | 490 | 160 | 265 | 0.50 | 4.0 |
| 1ph 230 | 0.55 | |||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
5IK60RGU-AF 5IK60RGU-EF 5IK60RGU-CF 5IK60RGU-HF |
5GU□KB 5GU□K |
50Hz | 1.10 | 1.40 | 1.90 | 2.30 | 2.90 | 3.40 | 3.61 | 4.80 | 5.70 | 6.80 | 7.12 | 8.60 | 10.0 | 10.3 | 11.6 | 12.4 | 15.5 | 18.6 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| 11.2 | 14.2 | 19.3 | 23.4 | 29.6 | 34.7 | 36.8 | 48.9 | 58.1 | 69.3 | 72.6 | 87.7 | 100 | 105 | 118 | 126 | 158 | 189 | 200 | 200 | 200 | 200 | 200 | 200 | |||
| 60Hz | 0.92 | 1.10 | 1.50 | 1.80 | 2.30 | 2.80 | 3.01 | 3.80 | 4.60 | 5.50 | 5.73 | 6.90 | 8.30 | 8.30 | 9.70 | 10.0 | 12.5 | 15.0 | 18.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||
| 9.38 | 11.2 | 15.3 | 18.3 | 23.4 | 28.5 | 30.7 | 38.7 | 46.9 | 56.1 | 58.4 | 70.1 | 84.7 | 84.6 | 98.9 | 102 | 127 | 153 | 192 | 200 | 200 | 200 | 200 | 200 | |||
■ Dimensions (Unit mm)
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 5IK90RGU-AF | 5IK90RA-AF | 90 | 1ph 100 | 50 | 90~1350 | 710 | 230 | 405 | 1.55 | 25.0 |
| 60 | 90~1650 | 260 | 1.85 | |||||||
| 5IK90RGU-EF | 5IK90RA-EF | 90 | 1ph 110 | 60 | 90~1650 | 710 | 260 | 410 | 1.40 | 20.0 |
| 1ph 120 | 1.45 | |||||||||
| 5IK90RGU-CF | 5IK90RA-CF | 90 | 1ph 220 | 50 | 90~1350 | 710 | 230 | 410 | 0.72 | 5.0 |
| 1ph 230 | 0.70 | |||||||||
| 5IK90RGU-HF | 5IK90RA-HF | 90 | 1ph 220 | 60 | 90~1650 | 710 | 260 | 410 | 0.71 | 5.0 |
| 1ph 230 | 0.75 | |||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 5GU□KB 5GU□K |
50Hz | 1.70 | 2.00 | 2.80 | 3.40 | 4.30 | 5.10 | 5.31 | 6.40 | 7.70 | 9.20 | 9.55 | 11.6 | 13.6 | 16.6 | 18.1 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 17.3 | 20.4 | 28.6 | 34.7 | 43.9 | 52.0 | 54.2 | 65.3 | 78.6 | 93.3 | 97.4 | 118 | 139 | 169 | 184 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||
| 60Hz | 1.40 | 1.70 | 2.50 | 2.80 | 3.50 | 4.20 | 4.43 | 5.20 | 6.20 | 7.50 | 7.81 | 9.40 | 11.3 | 13.5 | 14.5 | 18.8 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||
| 14.3 | 17.3 | 25.5 | 28.6 | 35.7 | 42.9 | 45.2 | 53.1 | 63.3 | 76.5 | 79.6 | 95.9 | 115 | 138 | 148 | 19.2 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |||
■ Dimensions (Unit mm)
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 5IK120RGU-AF | 5IK120RA-AF | 120 | 1ph 100 | 50 | 90~1350 | 750 | 330 | 530 | 2.10 | 30.0 |
| 60 | 90~1650 | 2.50 | ||||||||
| 5IK120RGU-EF | 5IK120RA-EF | 120 | 1ph 110 | 60 | 90~1650 | 750 | 360 | 530 | 1.65 | 25.0 |
| 1ph 120 | 1.80 | |||||||||
| 5IK120RGU-CF | 5IK120RA-CF | 120 | 1ph 220 | 50 | 90~1350 | 750 | 330 | 530 | 1.00 | 7.0 |
| 1ph 230 | 0.95 | |||||||||
| 5IK120RGU-HF | 5IK120RA-HF | 120 | 1ph 220 | 60 | 90~1650 | 750 | 360 | 530 | 1.00 | 7.0 |
| 1ph 230 | 0.95 | |||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 5GU□KB 5GU□K |
50Hz | 2.30 | 2.70 | 3.80 | 4.50 | 5.60 | 6.80 | 7.01 | 8.50 | 10.2 | 12.2 | 12.5 | 15.3 | 18.4 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| 23.4 | 27.5 | 38.7 | 45.9 | 57.1 | 69.3 | 71.5 | 86.7 | 104 | 124 | 128 | 156 | 187 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||
| 60Hz | 1.80 | 2.20 | 3.00 | 3.60 | 4.60 | 5.50 | 5.73 | 6.80 | 8.20 | 9.80 | 10.1 | 12.4 | 14.9 | 17.8 | 19.5 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | ||
| 18.3 | 22.4 | 30.6 | 36.7 | 46.9 | 56.1 | 58.5 | 69.5 | 83.6 | 100 | 103 | 126 | 152 | 181 | 199 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||
■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Speed Control Motor
1.lt is a unt of the controller motor.It only needs to connect one time. The speed can be easily adjusted by the potentiometer. The controller is fixed with sped-control loop,capacitor, speed enactment and etc. There is no function of instant stop in the unit.
2.The controller can make the speed variable between 90-1400r/min at 50Hz and 90-1700r/min at 60Hz.
3.Please don't run motor at low speed for long time avoiding overheat.
