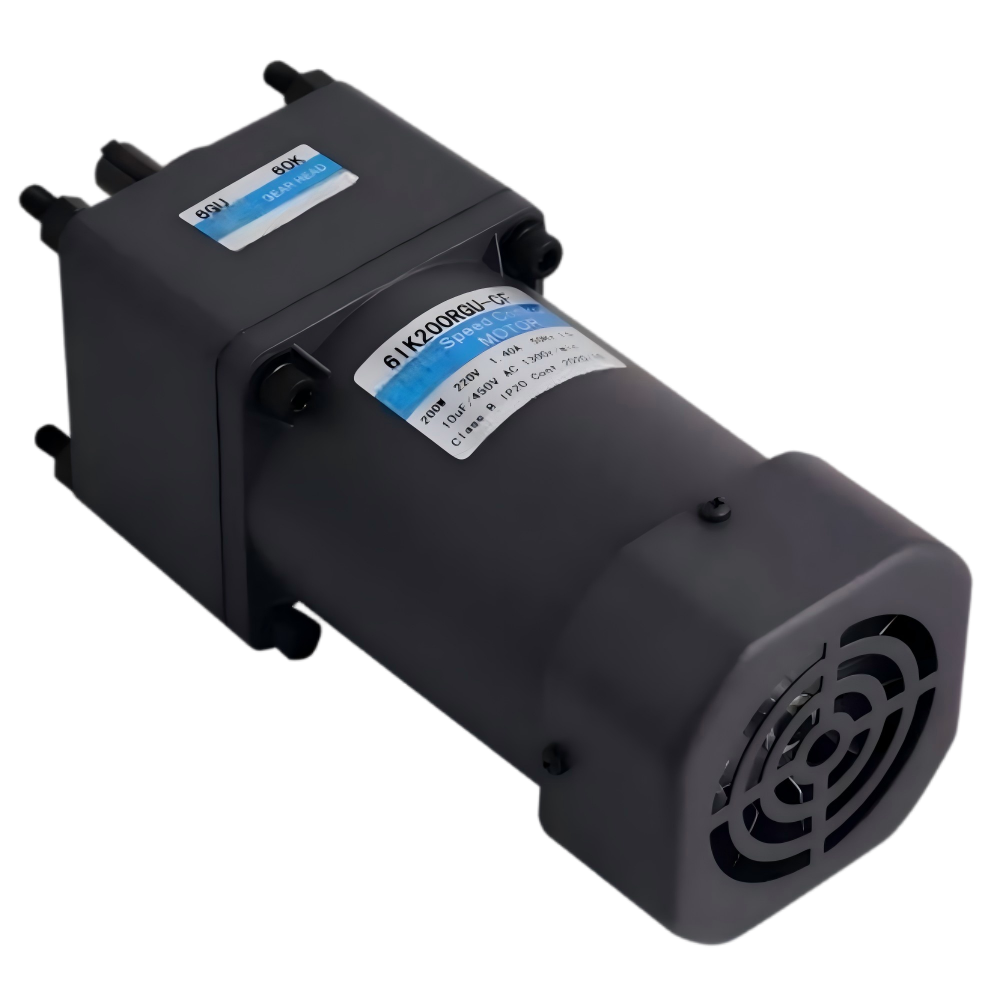

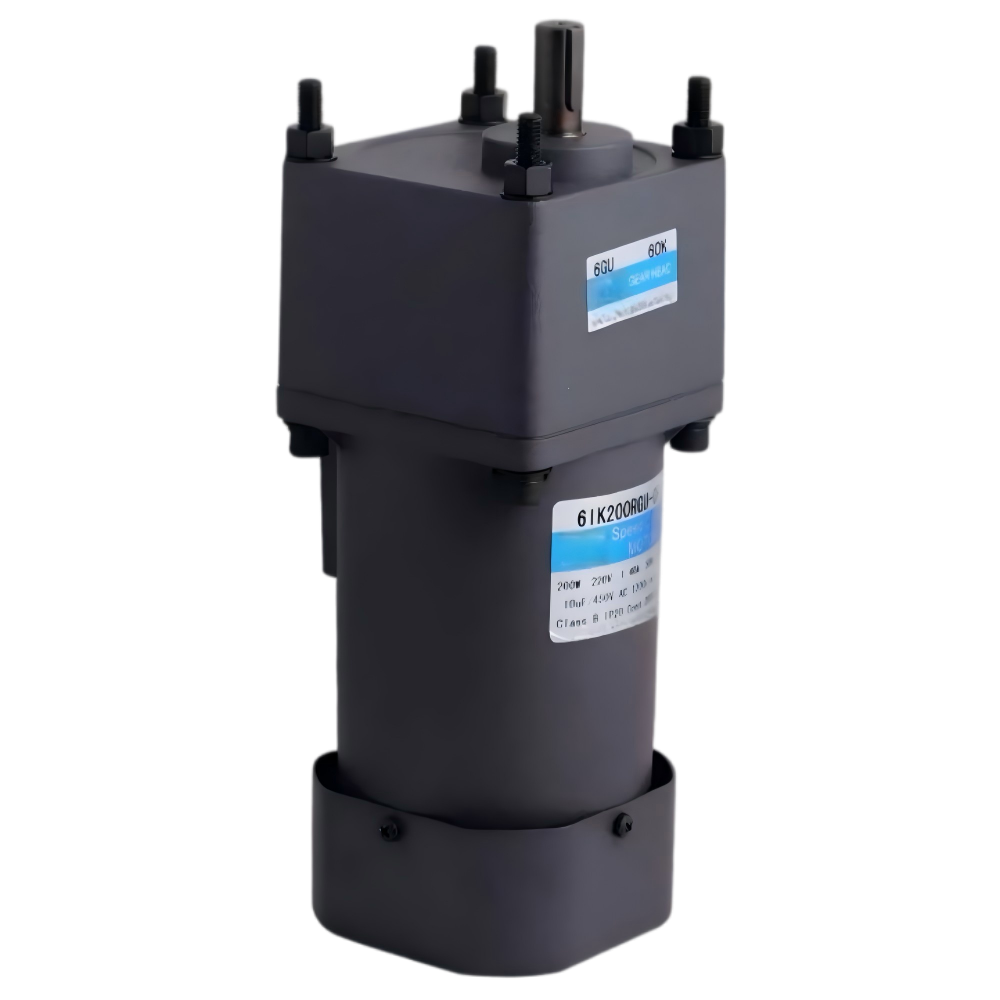

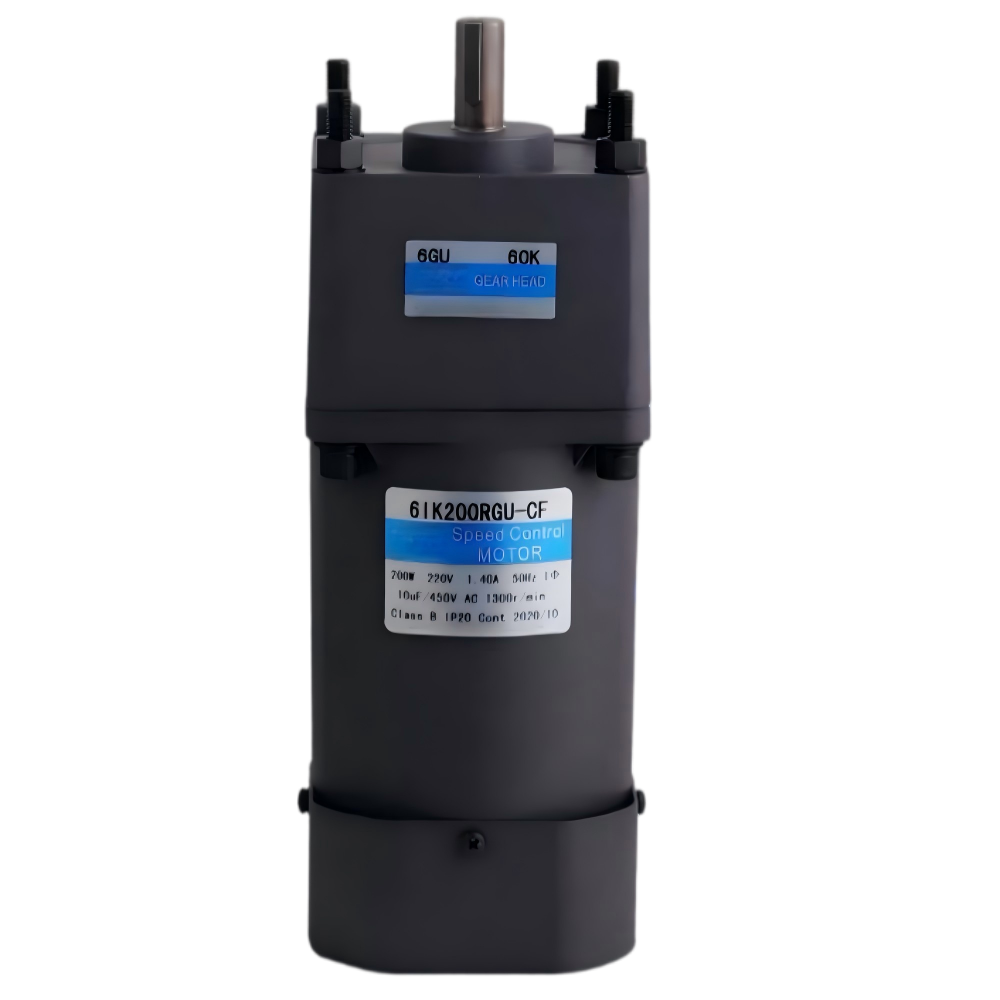

6IK 104mm 120W-200W Micro AC Speed Control Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
-
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GN②
50③
K④
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Pinion Type | GN: GN Type Gear | GU: GU Type Gear |
| ③ Gear Ratio | 50: Ratio 1:50 (10X denotes decimal gearhead 1:10) |
| ④ Bearing Type | K: Ball Bearing | KB: Ball Bearing for GU Square Case |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 6IK120RGU-AF | 6IK120RA-AF | 120 | 1ph 100 | 50 | 90~1350 | 750 | 360 | 530 | 2.10 | 30.0 |
| 60 | 90~1650 | 2.50 | ||||||||
| 6IK120RGU-EF | 6IK120RA-EF | 120 | 1ph 110 | 60 | 90~1650 | 750 | 360 | 520 | 1.70 | 20.0 |
| 1ph 120 | 1.80 | |||||||||
| 6IK120RGU-CF | 6IK120RA-CF | 120 | 1ph 220 | 50 | 90~1350 | 750 | 330 | 530 | 0.95 | 8.0 |
| 1ph 230 | ||||||||||
| 6IK120RGU-HF | 6IK120RA-HF | 120 | 1ph 220 | 60 | 90~1650 | 750 | 360 | 530 | 0.95 | 8.0 |
| 1ph 230 | 1.00 | |||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
6IK120RGU-AF□ 6IK120RGU-EF□ 6IK120RGU-CF□ 6IK120RGU-HF□ |
6GU□K | 50Hz | 2.30 | 2.70 | 3.80 | 4.50 | 5.60 | 6.80 | 6.68 | 8.50 | 10.2 | 12.2 | 12.0 | 15.3 | 18.4 | 22.1 | 24.0 | 30.7 | 36.8 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 23.4 | 27.5 | 38.7 | 45.9 | 57.1 | 69.3 | 68.2 | 86.7 | 104 | 124 | 123 | 156 | 187 | 225 | 245 | 313 | 375 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 60Hz | 1.80 | 2.20 | 3.00 | 3.60 | 4.60 | 5.50 | 5.40 | 6.80 | 8.20 | 9.80 | 9.70 | 12.4 | 14.9 | 17.8 | 19.4 | 24.8 | 29.7 | 37.1 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | ||
| 18.3 | 22.4 | 30.6 | 36.7 | 46.9 | 56.1 | 55.0 | 69.3 | 83.6 | 100 | 99.0 | 126 | 152 | 181 | 198 | 253 | 303 | 378 | 400 | 400 | 400 | 400 | 400 | 400 | |||

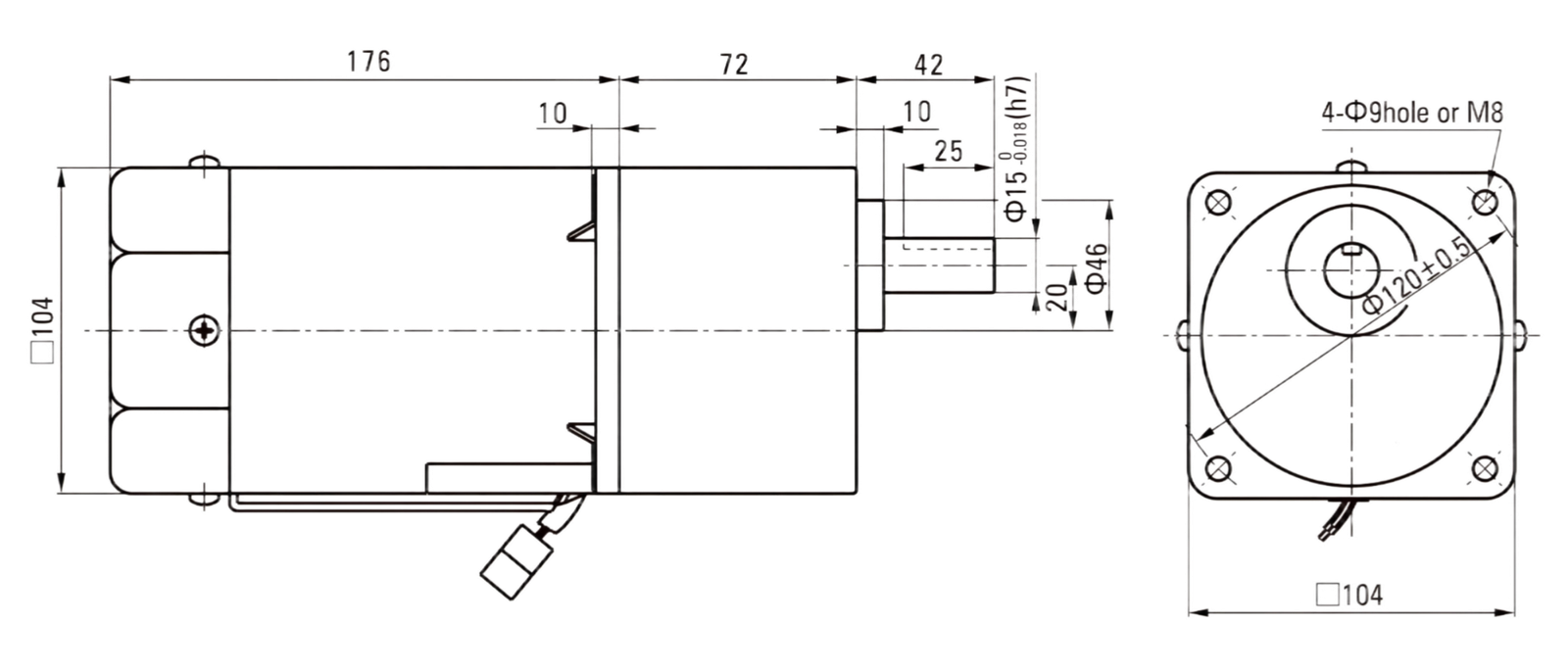

■ Dimensions (Unit mm)
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 6IK140RGU-AF | 6IK140RA-AF | 140 | 1ph 100 | 50 | 90~1350 | 830 | 420 | 620 | 2.70 | 35.0 |
| 60 | 90~1650 | 3.00 | ||||||||
| 6IK140RGU-EF | 6IK140RA-EF | 140 | 1ph 110 | 60 | 90~1650 | 830 | 450 | 620 | 1.80 | 25.0 |
| 1ph 120 | 1.95 | |||||||||
| 6IK140RGU-CF | 6IK140RA-CF | 140 | 1ph 220 | 50 | 90~1350 | 830 | 420 | 620 | 1.05 | 10.0 |
| 1ph 230 | 1.15 | |||||||||
| 6IK140RGU-HF | 6IK140RA-HF | 140 | 1ph 220 | 60 | 90~1650 | 830 | 450 | 620 | 1.05 | 10.0 |
| 1ph 230 | 1.15 | |||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
6IK140RGU-AF
6IK140RGU-EF
6IK140RGU-CF
6IK140RGU-HF
|
6GU□K | 50Hz | 2.60 | 3.10 | 4.40 | 5.20 | 6.60 | 7.90 | 7.80 | 9.90 | 11.8 | 14.2 | 14.0 | 17.8 | 21.4 | 25.7 | 28.0 | 35.6 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 26.5 | 31.6 | 44.8 | 53.0 | 67.3 | 80.6 | 79.6 | 101 | 120 | 144 | 143 | 181 | 218 | 262 | 286 | 363 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 60Hz | 2.10 | 2.50 | 3.50 | 4.20 | 5.30 | 6.30 | 6.30 | 7.90 | 9.50 | 11.4 | 11.3 | 14.4 | 17.2 | 20.7 | 22.6 | 28.7 | 34.5 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | ||
| 21.4 | 25.5 | 35.7 | 42.8 | 54.0 | 64.2 | 64.2 | 80.6 | 96.9 | 116 | 115 | 147 | 175 | 211 | 231 | 292 | 352 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||

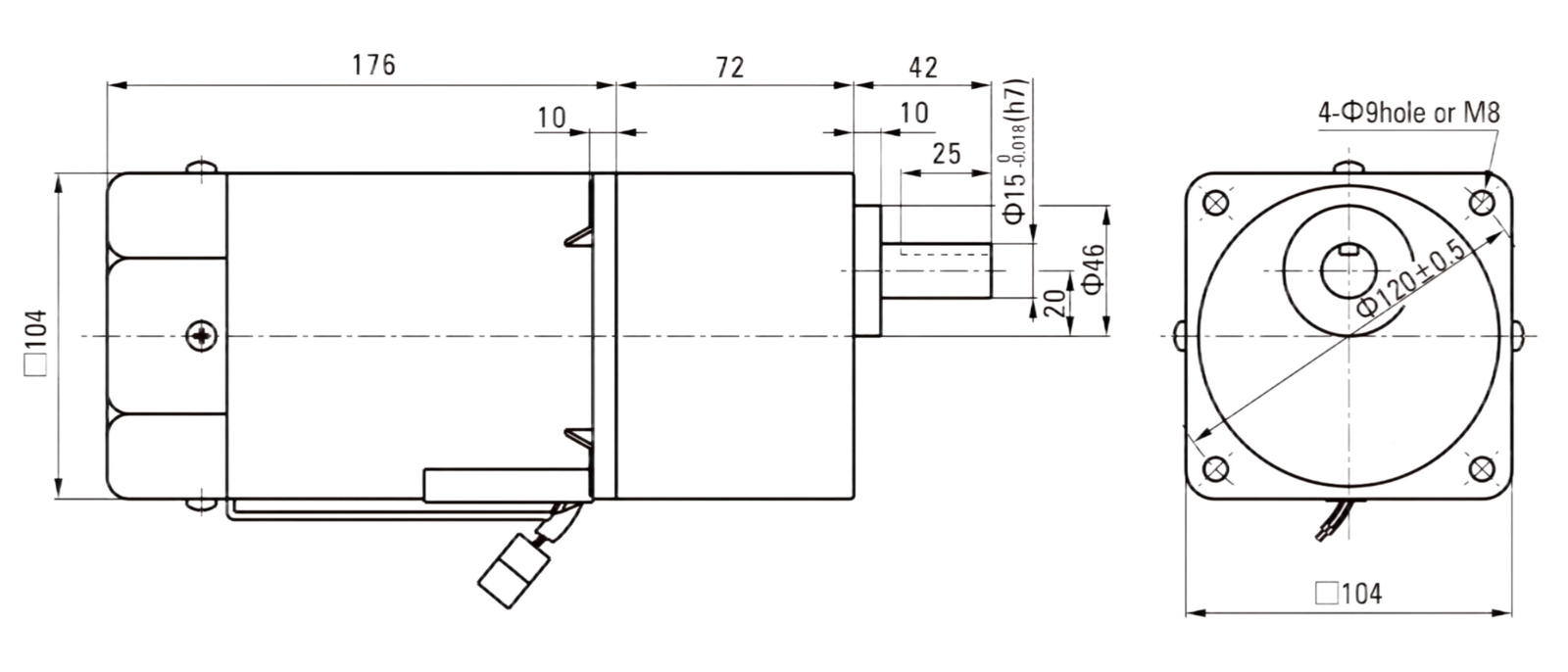

■ Dimensions (Unit mm)
■ Specs Continuous Rating
| Model | Output power W |
Voltage V |
Frequency Hz |
Speed Range r/min |
Allowance Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Pinion Shaft | Round Shaft | 1200r/min mN.m |
90r/min mN.m |
|||||||
| 6IK200RGU-CF | 6IK200RA-CF | 200 | 1ph 220 | 50 | 90~1350 | 920 | 500 | 1000 | 1.4 | 10.0 |
| 1ph 230 | ||||||||||
| 6IK200RGU-HF | 6IK200RA-HF | 200 | 1ph 220 | 60 | 90~1650 | 920 | 500 | 1000 | 1.4 | 10.0 |
| 1ph 230 | ||||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
|
6IK200RGU-CF
6IK200RGU-HF
|
6GU□K | 50Hz | 3.71 | 4.46 | 6.19 | 7.43 | 9.28 | 11.1 | 11.9 | 13.9 | 16.7 | 20.1 | 20.8 | 25.2 | 30.3 | 36.3 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 37.9 | 45.5 | 63.1 | 75.8 | 94.7 | 114 | 121 | 142 | 171 | 205 | 212 | 257 | 309 | 370 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 60Hz | 2.99 | 3.59 | 4.99 | 5.99 | 7.49 | 8.98 | 9.70 | 11.2 | 13.5 | 16.2 | 17.2 | 20.3 | 24.4 | 29.3 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | ||
| 30.6 | 36.7 | 50.9 | 61.1 | 76.4 | 91.7 | 98.9 | 115 | 138 | 165 | 175 | 207 | 249 | 299 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Speed Control Motor
1.lt is a unt of the controller motor.It only needs to connect one time. The speed can be easily adjusted by the potentiometer. The controller is fixed with sped-control loop,capacitor, speed enactment and etc. There is no function of instant stop in the unit.
2.The controller can make the speed variable between 90-1400r/min at 50Hz and 90-1700r/min at 60Hz.
3.Please don't run motor at low speed for long time avoiding overheat.
