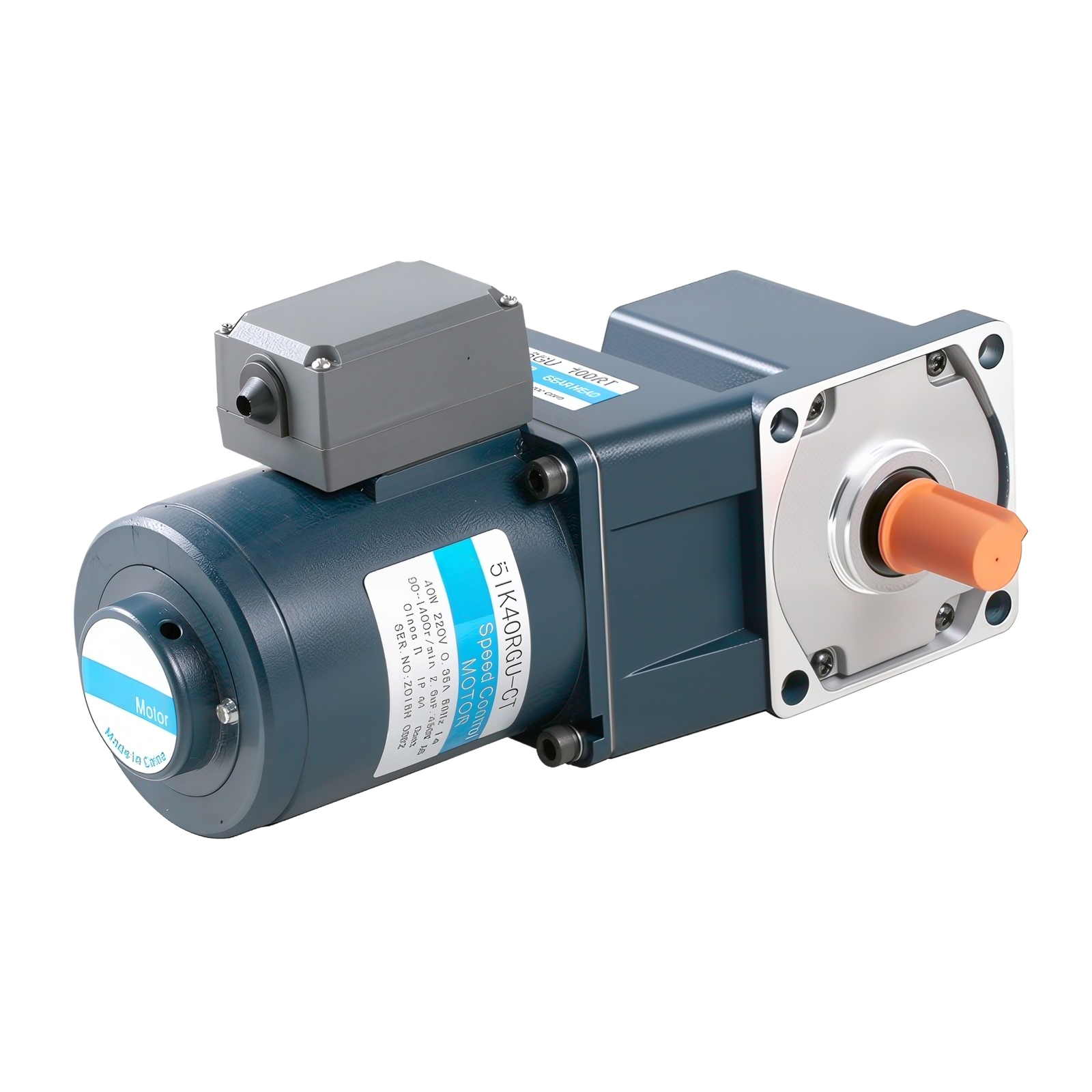

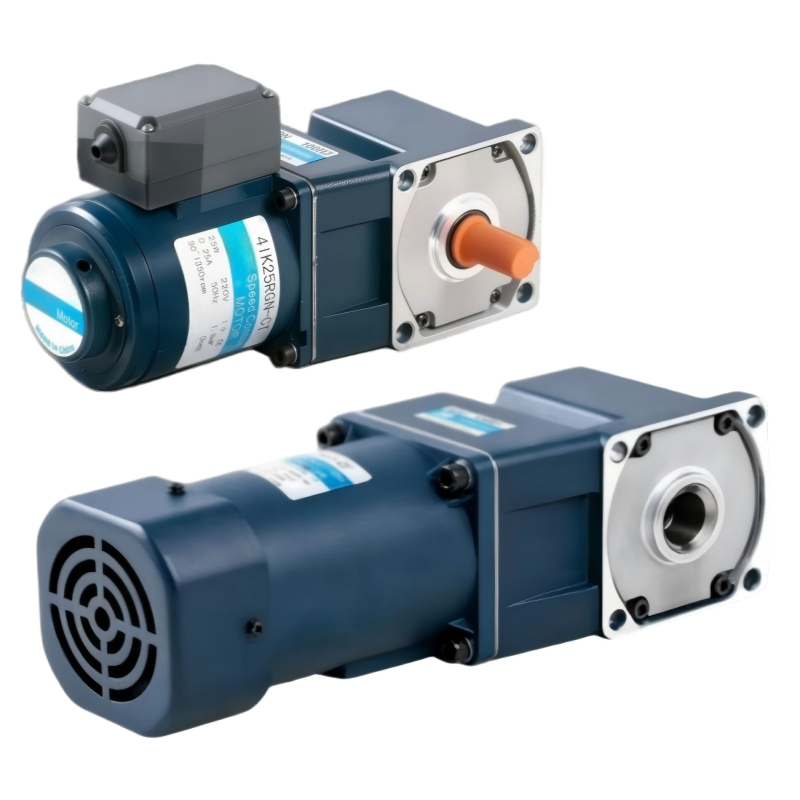

5IK 90mm 40W Micro Speed Control Motor
· High-efficiency Induction Core (Continuous Rating)
· Precision Ground Parallel Shaft Gearbox
· Reliable Class B Insulation & IP20 Protection
· Available in Single-Phase (110V/220V) & Three-Phase (220V/380V)
■ Motor Model Numbering System
5①
I②
K③
40④
R⑤
GN⑥
-
C⑦
T⑧
| Item | Technical Specification & Meaning |
|---|---|
| ① Frame Size | 0: 42mm | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Motor Type | I: Induction | R: Reversible | T: Torque |
| ③ Series | K Series |
| ④ Output Power | 40: 40W (Nominal output power wattage) |
| ⑤ Speed Control | R: Speed Adjustable | None: Fixed Speed |
| ⑥ Shaft Type | GN/GU: Pinion Shaft | A: Round | A1: Keyway |
| ⑦ Voltage & Poles |
A:Single-phase(1Φ) 110V 50/60Hz4P
B:Single-phase(1Φ) 110V 50Hz2P
C:Single-phase(1Φ) 220/230V 50Hz4P
D:Single-phase(1Φ) 220V 50Hz2P
E:Single-phase(1Φ) 110V/120V 60Hz4P
H:Single-phase(1Φ) 220/230V 60Hz4P
S:Three-phase(3Φ) 200/220/230V 50/60Hz4P
S3:Three-phase(3Φ) 380/400/415V 50/60Hz4P
T:Three-phase(3Φ) 200/220/230V 50/60Hz2P
T3:Three-phase(3Φ) 380/400/415V 50/60Hz2P
|
| ⑧ Accessories | T: Terminal Box | F/FF: Fan | M: Brake |
■ Reducer Model Numbering System
5①
GU②
50③
RH④
| Item | Technical Specification & Meaning |
|---|---|
| ① Gearhead frame size | 4: 80mm | 5: 90mm | 6: 104mm |
| ② Type of pinion | GN : GN type gear | GU : GU type gear |
| ③ Gear ratio |
(e.g.) 50 : Gear ratio of 1 : 50 10x denotes the decimal gearhead of ratio 1 : 10 |
| ④ Type of output shaft |
RH : Hollow worm shaft RA : Worm output shaft RC : Spiral bevel hollow shaft RT : Spiral bevel output shaft |
* Note: If the motor is assembled with a parallel shaft gear box, please cancel item no 5. If assembly with right angle gear box, please cancel item no 4.
■ Specs Speed Control Motor
|
Model Lead Wire Type / Pinion Shaft |
Output power W |
Voltage V |
Frequency Hz |
Speed Control Range r/min |
Allowance Torque mN.m |
Starting Torque mN.m |
Current A |
Capacitor μF |
|
|---|---|---|---|---|---|---|---|---|---|
| 1200r/min | 90r/min | ||||||||
| 5IK40RGU-A | 40 | 1ph 100 | 50 | 90～1400 | 260 | 70 | 180 | 0.65 | 12 |
| 60 | 90～1700 | 0.70 | |||||||
| 5IK40RGU-E | 40 | 1ph 110 | 60 | 90～1700 | 260 | 65 | 180 | 0.55 | 8.0 |
| 1ph 120 | 0.60 | ||||||||
| 5IK40RGU-C | 40 | 1ph 220 | 50 | 90～1400 | 300 | 75 | 160 | 0.35 | 2.5 |
| 1ph 230 | 0.40 | ||||||||
| 5IK40RGU-H | 40 | 1ph 220 | 60 | 90～1700 | 230 | 70 | 145 | 0.35 | 2.5 |
| 1ph 230 | 0.40 | ||||||||
● When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
● Note: "-A" it means the voltage 110V, the assembly capacitor value it is according to the label.
■ Allowance Torque Unit : Upside(N.m)/Belowside(kgf.cm)
| Type Motor/Gearhead |
Gear Ratio | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed r/min |
50Hz | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12 | 10 | 8 | |
| 60Hz | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | ||
|
5IK40RGU-A□ 5IK40RGU-E□ 5IK40RGU-C□ 5IK40RGU-H□ |
5GU□RC 5GU□RT |
50Hz | 1.58 | 1.89 | 2.63 | 3.16 | 3.79 | 5.26 | 6.31 | 6.80 | 9.50 | 11.4 | 14.2 | 17.0 | 18.9 | 20.0 | 20.0 | 20.0 |
| 16.1 | 19.3 | 26.8 | 32.2 | 38.6 | 53.7 | 64.4 | 70.0 | 97.0 | 116 | 145 | 174 | 193 | 200 | 200 | 200 | |||
| 60Hz | 1.27 | 1.53 | 2.12 | 2.55 | 3.05 | 4.24 | 5.09 | 5.50 | 7.64 | 9.16 | 11.5 | 13.7 | 15.3 | 18.3 | 20.0 | 20.0 | ||
| 13.0 | 15.6 | 21.6 | 26.0 | 31.2 | 43.3 | 51.9 | 56.1 | 77.9 | 93.5 | 117 | 140 | 156 | 187 | 200 | 200 | |||

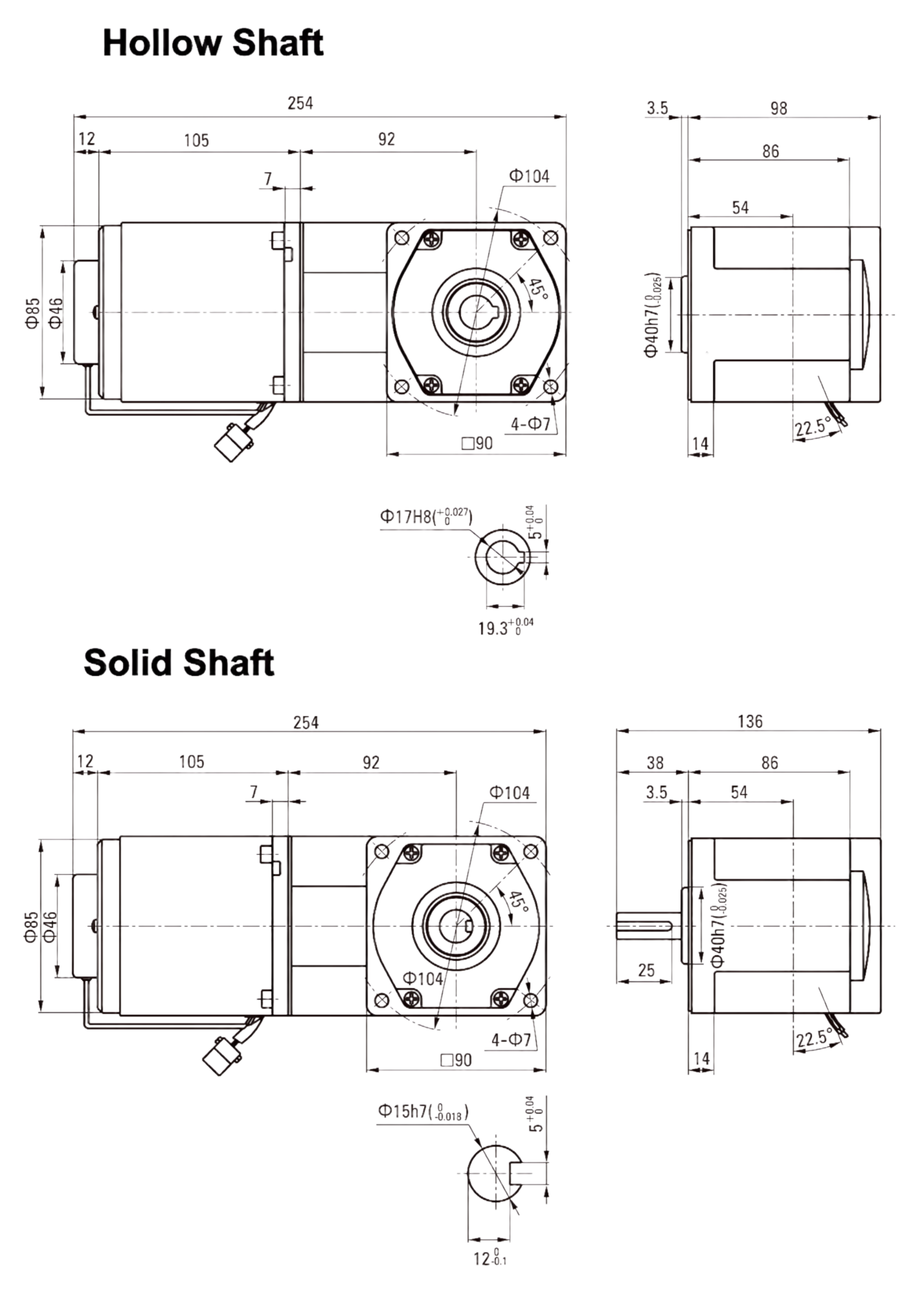

■ Dimensions (Unit mm)
■ Wiring Diagram
■ Features For Speed Control Motor
1.lt is a unt of the controller motor.It only needs to connect one time. The speed can be easily adjusted by the potentiometer. The controller is fixed with sped-control loop,capacitor, speed enactment and etc. There is no function of instant stop in the unit.
2.The controller can make the speed variable between 90-1400r/min at 50Hz and 90-1700r/min at 60Hz.
3.Please don't run motor at low speed for long time avoiding overheat.
