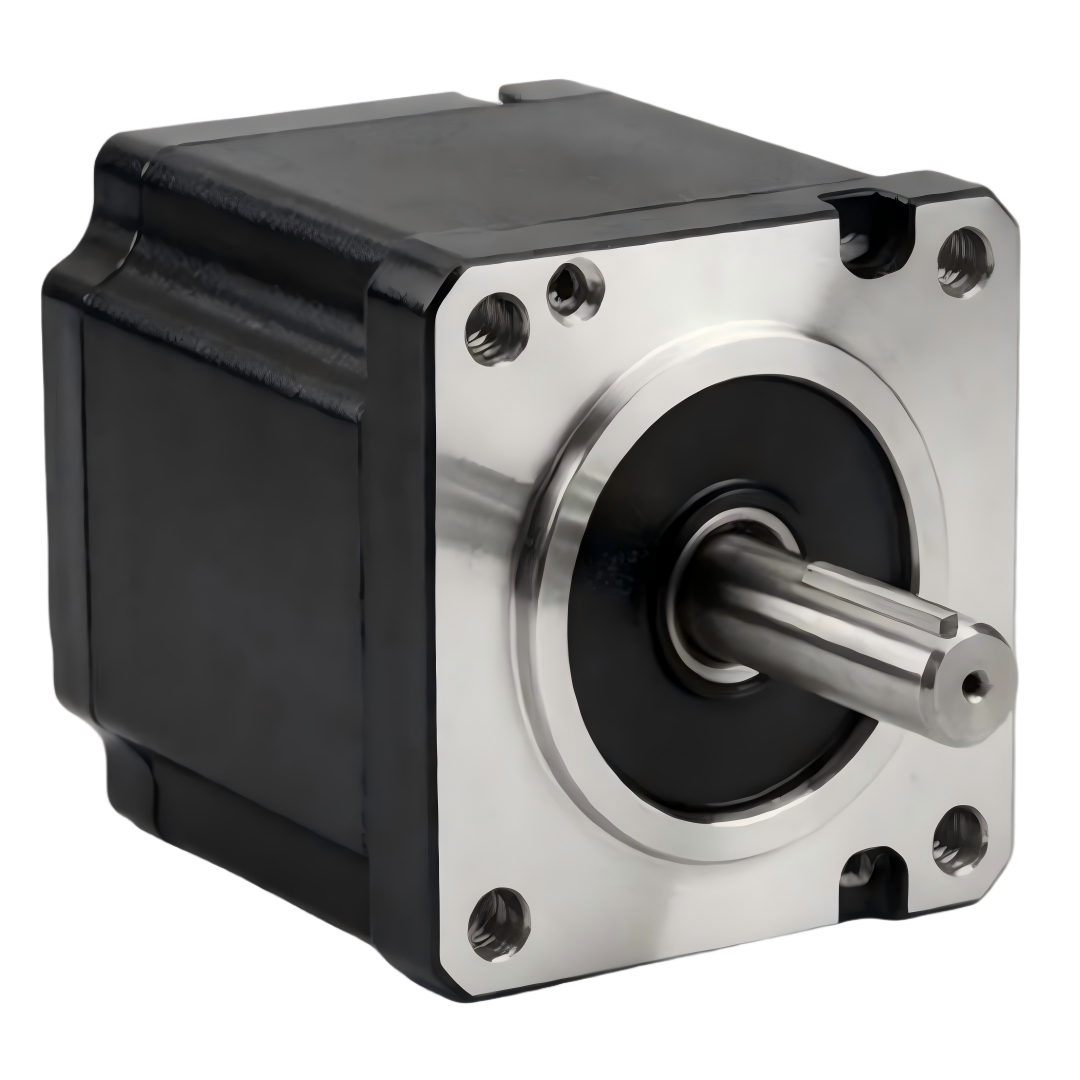

57FDMW
· Engineered for AGVs and AMRs to optimize automated warehouse workflows.
· Combines drive motor, steering mechanism, and precision gearbox into a compact module.
· Delivers smooth omnidirectional movement for effortless maneuvering in tight spaces.
· Provides high torque, precise motion control, and continuous long-term durability.
57FDMW
| Conventional Performance | |
|---|---|
| Hall Effect Angle | 120 degrees |
| Insulation Class | Class B |
| Dielectric Strength | 600V |
| Shaft Diameter Range | 4-15mm |
| Working Environment | -30℃ ~ +40℃ |
| Customizable Items | Shaft outlet, mounting flange, speed, Ingress Protection, etc. |
| Optional Accessories | Brakes, encoders, internal drives, gearboxes, etc. |
| Wiring Diagram | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| U | V | W | ||||||||||||
| red | yellow | black | ||||||||||||
| +5V | Hall A | Hall B | Hall C | GND | ||||||||||
| red | blue | green | white | black | ||||||||||
| General Specification | |||||
|---|---|---|---|---|---|
| 57FDMW | 57FDMW21 | 57FDMW42 | 57FDMW62 | 57FDMW82 | |
| Voltage | V | 220 | 220 | 220 | 220 |
| Number of Poles | P | 8 | 8 | 8 | 8 |
| No Load Speed | rpm | 3700±10% | 3700±10% | 3700±10% | 3700±10% |
| Rated Torque | Nm | 0.2 | 0.41 | 0.62 | 0.82 |
| Max Torque | Nm | 0.63 | 1.3 | 1.9 | 2.5 |
| Rated Speed | rpm | 3000±10% | 3000±10% | 3000±10% | 3000±10% |
| Rated Current | A | 0.36 | 0.73 | 1.10 | 1.45 |
| Rated Power | W | 63 | 128 | 195 | 258 |
| Motor Length L | mm | 59 | 81 | 101 | 123 |
| Weight | kg | 0.59 | 0.95 | 1.3 | 1.65 |
■ Dimensions (Unit mm)
■ Features For Intelligent Logistics and Automated System
Engineered for intelligent logistics and automated material handling, this power unit series offers versatile driving and steering solutions featuring high-torque motors, precision gearboxes, and compact structural designs. Built to deliver exceptional load capacity, flexible maneuverability, and accurate positioning feedback, these heavy-duty units ensure outstanding industrial reliability and smooth control—making them the ideal drive choice for AGVs, AMRs, and mobile equipment in demanding 24/7 operations.
