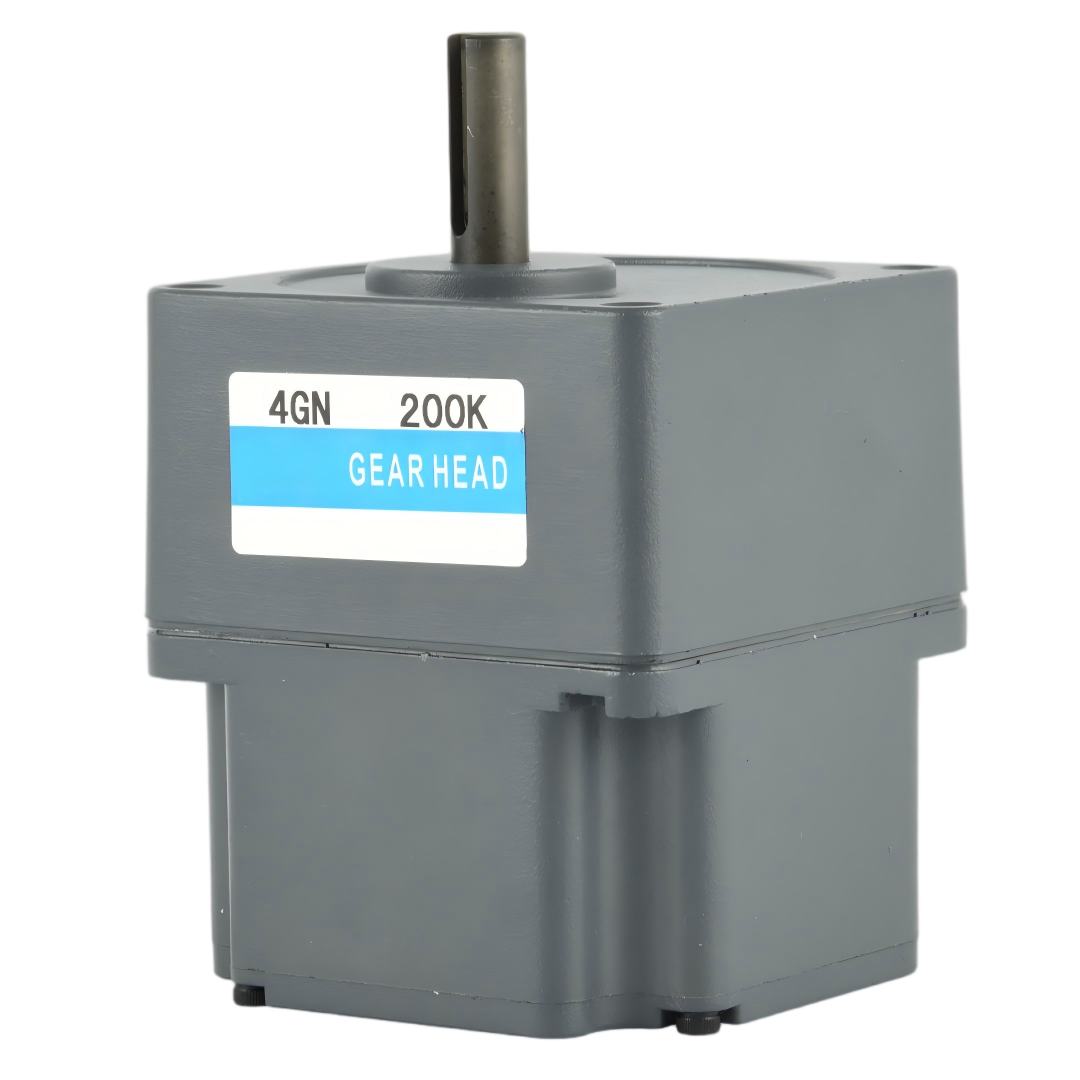

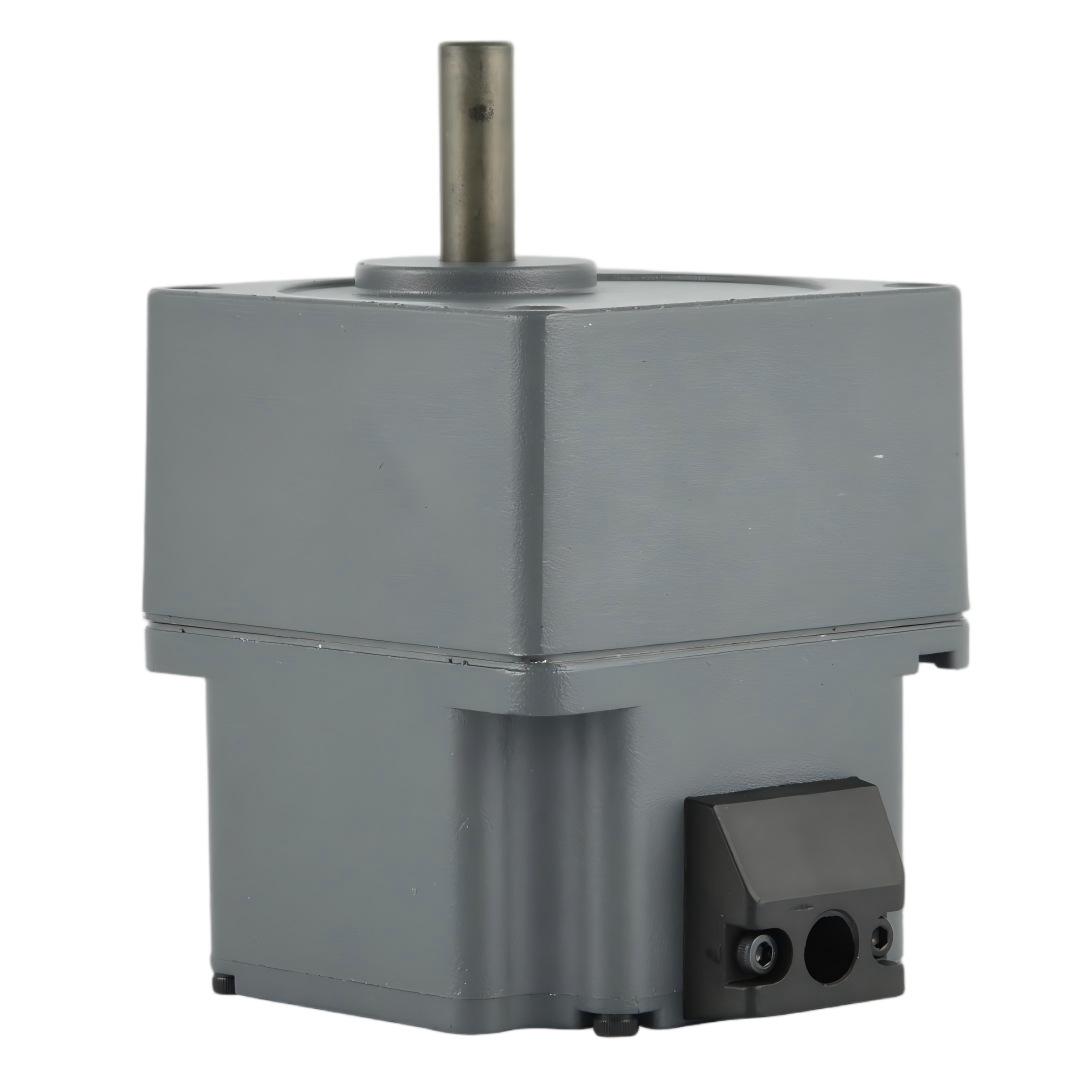

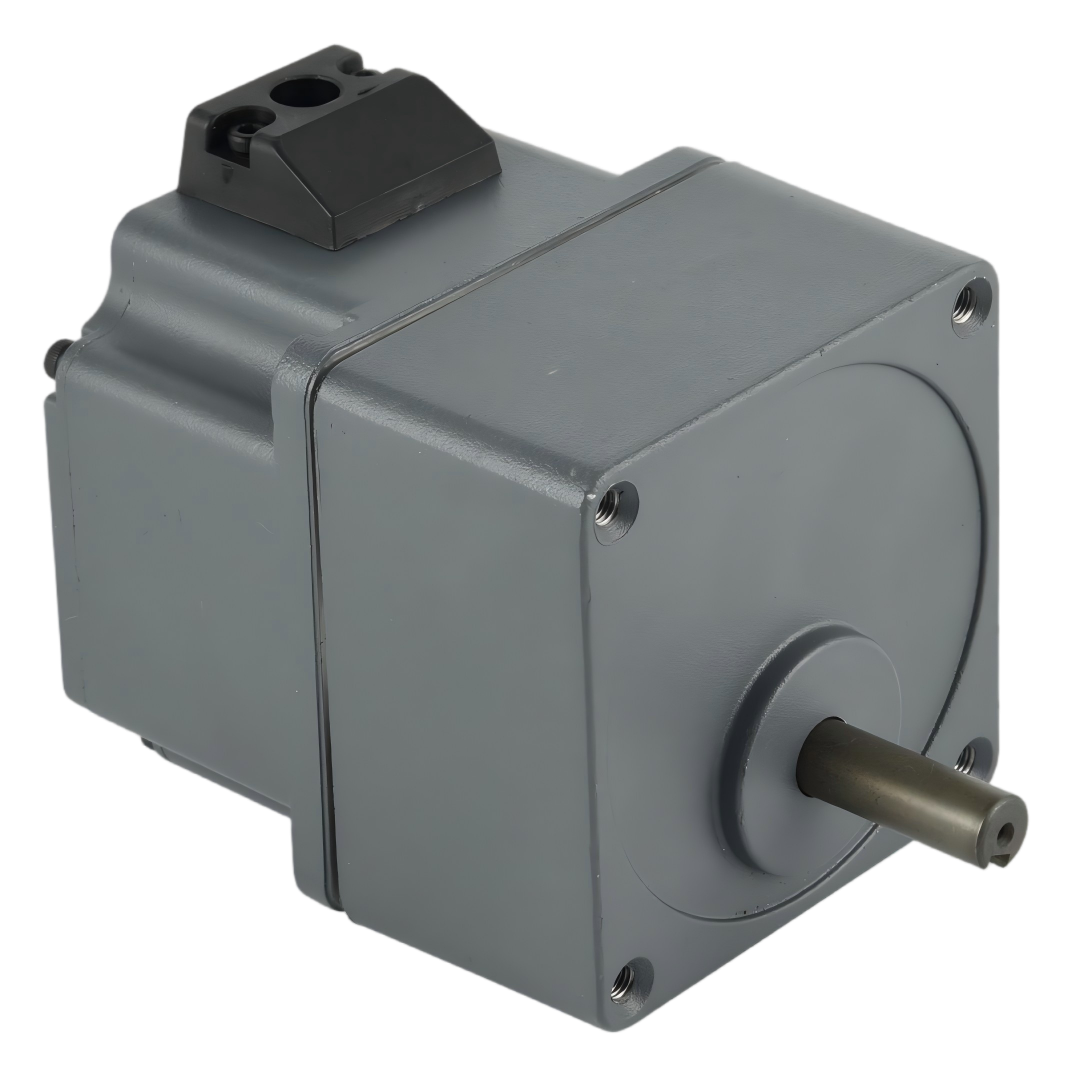

4BLD 80mm 40W-60W DC Brushless Motor
· High Efficiency & Energy Saving
· Low Noise & Smooth Operation
· Maintenance-Free & Long Lifespan
· Precise Control & Rapid Response
■ Brushless DC Motor Model Numbering System
| Item | Technical Specification & Meaning |
|---|---|
| ① Code (Dimension) |
2: 60mm (60×60) | 3: 70mm (70×70) | 4: 80mm (80×80) | 5: 90mm (90×90) | 6: 104mm (104×104) | 7: 120mm (120×120) |
| ② Motor Type | BLD: DC Brushless gear motor |
| ③ Output Power | 90: 90W (Nominal output power wattage, e.g. 90=90W) |
| ④ Voltage |
220: 220VAC (e.g. 24=24VDC) * Optional: 24V~48VDC | Single phase 100V~120VAC | Single phase 220V~240VAC, 50/60Hz |
| ⑤ Shape of Motor Shaft |
Square Gearbox: GN: GN type gear shaft | GU: GU type gear shaft L type Gearbox: GNL: Type L GN series (for 2&4 series) | GUL: Type L GU series (for 5&6 series) Motor Only: A: Round shaft type | A1: Keyway type |
| ⑥ Speed | 30S: 3000RPM (Motor speed, e.g. 30S=3000RPM) |
| ⑦ Motor Parts |
M: Electromagnetic brake BM: Closed loop feedback mode (with encoder / simple Holzer encoder) |
■ Reducer Model Numbering System
| Item | Technical Specification & Meaning |
|---|---|
| ① Gearhead frame size | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm | 7: 120mm |
| ② Gear type | GN: GN type gear | GU: GU type gear |
| ③ Gear ratio | (e.g) 50: Reduction ratio |
| ④ Bearing type | K: Ball bearing (On the GU type square box marked as KB) |
■ Specs 40W (DC power supply is suitable for 24VDC/36VDC/48VDC)
| Rated power (Continuous) | W | 40 (40W) | |||
| Rated speed | r/min | 3000 | |||
| Rated torque | N.m | 0.127 | |||
| Instantaneous maximum torque | N.m | 0.191 | |||
| Rotor moment of inertia | J:X10-4kg.m2 | 0.082 | |||
| Speed control range | RPM | 200～3000 | |||
| Speed control range |
On load | Below ±1%: Condition 0～rated torque, rated speed, rated voltage, room temperature | |||
| On voltage | Below ±1%: Condition rated voltage ±10%, rated speed, rated load, room temperature | ||||
| On temperature | Below ±1%: Conditions of ambient temperature -10℃～+40℃ rated voltage, rated load and rated speed | ||||
| Power input | Rated voltage | V | Single phase 110V | Single phase 220V | 24VDC (Optional 36VDC/48VDC) |
| Voltage tolerance range | ±10% | ||||
| Frequency | Hz | 50/60 | / | ||
| Frequency tolerance range | ±5% | / | |||
| Rated input current | A | 1.7 | 1.0 | 3.7 | |
| Instantaneous maximum input current | A | 3.3 | 1.9 | 5.6 | |
■ 4BLD40-▢GN-30S/4GN▢K gearmotor allowable torque (Unit: N.m)
| Model | Motor Speed | Reduction Ratio | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | ||
| 4BLD40-▢GN | 200～1500RPM | 0.48 | 0.58 | 0.80 | 0.97 | 1.21 | 1.45 | 1.61 | 2.01 | 2.41 | 2.90 | 2.90 | 3.63 | 4.35 | 5.22 | 7.25 | 7.87 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 2000RPM | 0.41 | 0.49 | 0.68 | 0.82 | 1.02 | 1.23 | 1.36 | 1.70 | 2.04 | 2.45 | 2.45 | 3.07 | 3.68 | 4.42 | 6.13 | 6.66 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 2500RPM | 0.37 | 0.45 | 0.62 | 0.74 | 0.93 | 1.11 | 1.24 | 1.55 | 1.86 | 2.23 | 2.23 | 2.79 | 3.35 | 4.02 | 5.58 | 6.05 | 7.56 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 3000RPM | 0.31 | 0.37 | 0.52 | 0.62 | 0.77 | 0.93 | 1.03 | 1.29 | 1.55 | 1.86 | 1.86 | 2.32 | 2.79 | 3.35 | 4.65 | 5.01 | 6.26 | 7.52 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
■ 4BLD60-▢GN-30S/4GN▢K gearmotor allowable torque (Unit: N.m)
| Model | Motor Speed | Reduction Ratio | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | ||
| 4BLD60-▢GN | 200～1500RPM | 0.72 | 0.87 | 1.21 | 1.45 | 1.81 | 2.17 | 2.41 | 3.02 | 3.62 | 4.34 | 4.35 | 5.44 | 6.53 | 7.83 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
| 2000RPM | 0.61 | 0.74 | 1.02 | 1.23 | 1.53 | 1.84 | 2.04 | 2.55 | 3.06 | 3.68 | 3.68 | 4.60 | 5.52 | 6.63 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 2500RPM | 0.56 | 0.67 | 0.93 | 1.11 | 1.39 | 1.67 | 1.86 | 2.32 | 2.78 | 3.34 | 3.35 | 4.18 | 5.02 | 6.02 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
| 3000RPM | 0.46 | 0.56 | 0.77 | 0.93 | 1.16 | 1.39 | 1.55 | 1.93 | 2.32 | 2.78 | 2.79 | 3.49 | 4.18 | 5.02 | 6.97 | 7.52 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | |
■ Dimensions (Unit mm)
■ Wiring Diagram
Low voltage wire plughole corresponding signal explanation
| 5 | 6 | 7 | 8 |
| 1 | 2 | 3 | 4 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|
| Green (Crude) |
Black (Fine) |
Blue (Fine) |
Red (Fine) |
Yellow (Crude) |
Blue (Crude) |
Green (Fine) |
Yellow (Fine) |
| V | GND | Hw | Vcc+5V | U | W | Hv | Hu |
High voltage wire plughole corresponding signal explanation
| 6 | 7 | 8 | 9 | 10 |
| 1 | 2 | 3 | 4 | 5 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| Yellow (Fine) |
Green (Fine) |
Blue (Fine) |
Metal mesh |
Black (Fine) |
Blue (Crude) |
Yellow (Crude) |
Green (Crude) |
Red (Fine) |
|
| Hu | Hv | Hw | GND | W | U | V | Vcc+5V |
■ Features For DC Brushless Motor
1.The characteristics of brushless motor
About brushless motors, there is no need to use mechanical contacts such as brushes and commutators, which are commonly considered drawbacks of DC motors. DC motors use brushes and commutators to rotate, thus requiring regular maintenance. In contrast, brushless motors utilize signals detected by Hall ICs and rotate by the ON/OFF of transistors in the drive circuit, eliminating the need for maintenance.
2.Stable speed control
Brushless motors continuously compare the set speed with the speed feedback signal from the motor to adjust the voltage applied to the motor. Therefore, even if the load condition changes, they can instantly adjust from low speed to the set speed and operate at this stable speed. Three-phase induction motors controlled by a frequency converter do not perform feedback control, so when the load increases, the speed will drop significantly. For applications that require high speed stability, it is recommended to use brushless motors.
3.Wide speed control range
Brushless motors have a wider speed control range compared to AC adjustable-speed motors and frequency converters. Since they do not have torque limitations at low speeds as seen with AC adjustable-speed motors, brushless motors are suitable for applications that require a certain amount of torque from low speeds to high speeds.
4.Saving energy
The rotor of the brushless motor utilizes permanent magnets, which can reduce secondary losses of the rotor. Therefore, compared to three-phase induction motors controlled by frequency conversion, brushless motors consume about 23% less power, contributing to energy savings in devices.
5.Low speed and high torque performance
DC brushless motor have a steady big torque when running at low speed.
6.Thin, high power
Brushless DC motors have a slim body and provide high power due to permanent magnets being used in the rotor. For example, the overall length is 75mm shorter and the output power is 1.3 times higher than that of three-phase induction motors with a frame size of 90mm. Using brushless DC motors can contribute to downsizing and space saving.
7.Protection function, help to protect the safety of the equipment system
Due to the load of the overcurrent, undervoltage, open phase protection, Our motor and driver can ensure the safety of equipment system.
