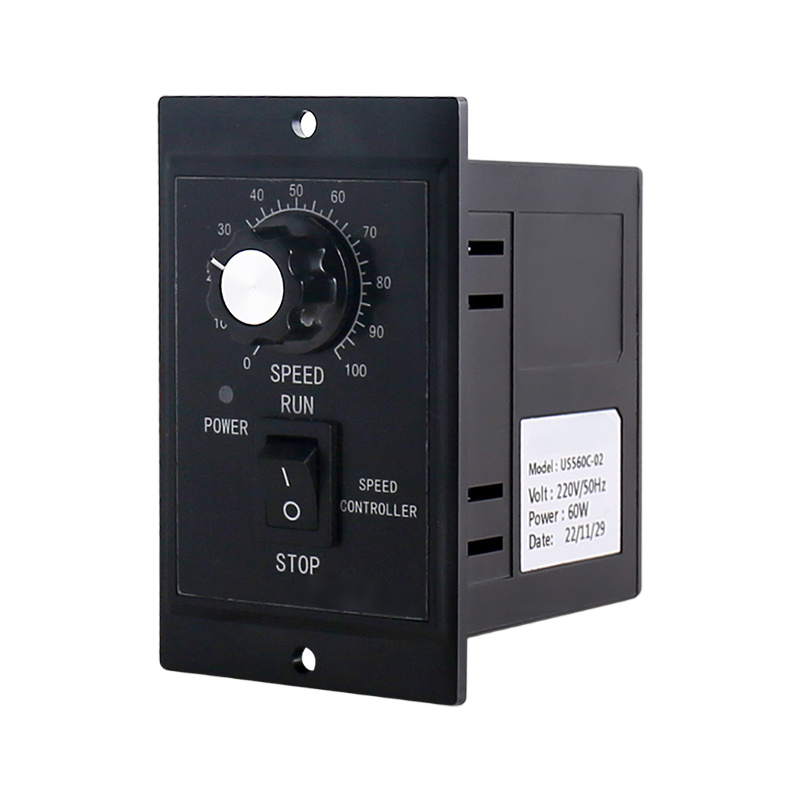

US Series
· Precision Stepless Speed Regulation.
· User-Friendly Panel-Mount Design.
· Plug & Play Quick Wiring Socket.
· Wide Voltage & Full Power Coverage.
■ US-Series Model naming
US①
5②
40③
C④
D / X⑤
| Item | Technical Specification & Meaning |
|---|---|
| ① Controller Code | US: Panel Mount Speed Controller Series |
| ② Frame Size | 2: 60mm | 3: 70mm | 4: 80mm | 5: 90mm | 6: 104mm |
| ③ Output Power | 06: 6W | 15: 15W | 25: 25W | 40: 40W | 60: 60W | 90: 90W | 120: 120W | 140: 140W | 200: 200W |
| ④ Voltage | C: Single-phase 220V±10% 50/60Hz | A: Single-phase 110V±10% 50/60Hz |
| ⑤ Output Type | D: Terminal Output | X: Terminal & Integrated Harness Output |
US-Series - Performance & Parameter Specifications
| Model No. | Single Phase 220V | US206C | US315C | US425C | US540C | US560C | US590C | US5120C | US6120C | US6140C | US6200C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | |
| Model No. | Single Phase 110V | US206A | US315A | US425A | US540A | US560A | US590A | US5120A | US6120A | US6140A | US6200A |
| Output Type | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | □D / □X | |
| Applicable Motor Power | 6W | 15W | 25W | 40W | 60W | 90W | 120W | 120W | 140W | 200W | |
| Motor Type | Speed Control Motor | ||||||||||
| Mounting Type | Panel Mount | ||||||||||
| Speed Control Method | Panel Potentiometer | ||||||||||
| Operating Capacitor | Built-in (Inside Controller) | ||||||||||
| Speed Control Range | 50Hz: 90–1350 r/min | 60Hz: 90–1550 r/min | ||||||||||
| Power Frequency | 50Hz – 60Hz | ||||||||||
| Operating Environment | -10°C to +45°C (Non-freezing), Below 85% RH (Non-condensing) | ||||||||||
■ US-02 Series Model naming
US①
6②
200③
C④
-
02⑤
| Item | Technical Specification & Meaning |
|---|---|
| ① Controller Code | US: Panel Mount Speed Controller Series |
| ② Frame Size | 2: 60mm×60mm | 3: 70mm×70mm | 4: 80mm×80mm | 5: 90mm×90mm | 6: 104mm×104mm |
| ③ Output Power | 6W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 200W |
| ④ Voltage | C: Single-phase 220V±10% 50/60Hz | A: Single-phase 110V±10% 50/60Hz |
| ⑤ Design Version | -02: Series Design Suffix Version |
US-02 Series - Performance & Parameter Specifications
| Model No. | US206C-02 | US315C-02 | US425C-02 | US540C-02 | US560C-02 |
|---|---|---|---|---|---|
| US590C-02 | US5120C-02 | US6120C-02 | US6140C-02 | US6200C-02 | |
| Applicable Motor | Speed Control Motor (Power rating must match the controller nominal power) | ||||
| Mounting Type | Panel Mount | ||||
| Speed Control Method | Panel Potentiometer | ||||
| Operating Capacitor | Built-in (Inside Controller) | ||||
| Power Supply Input | Single-phase 220V ± 10%; 50Hz / 60Hz | ||||
| Speed Control Range | 50Hz: 90–1350 r/min | 60Hz: 90–1550 r/min (Separate product versions for 50Hz and 60Hz) |
||||
| Operating Environment | -20°C to +40°C (Non-freezing); Humidity < 85% RH (Non-condensing); Altitude < 1000m | ||||
■ Features For US Series AC Speed Controller

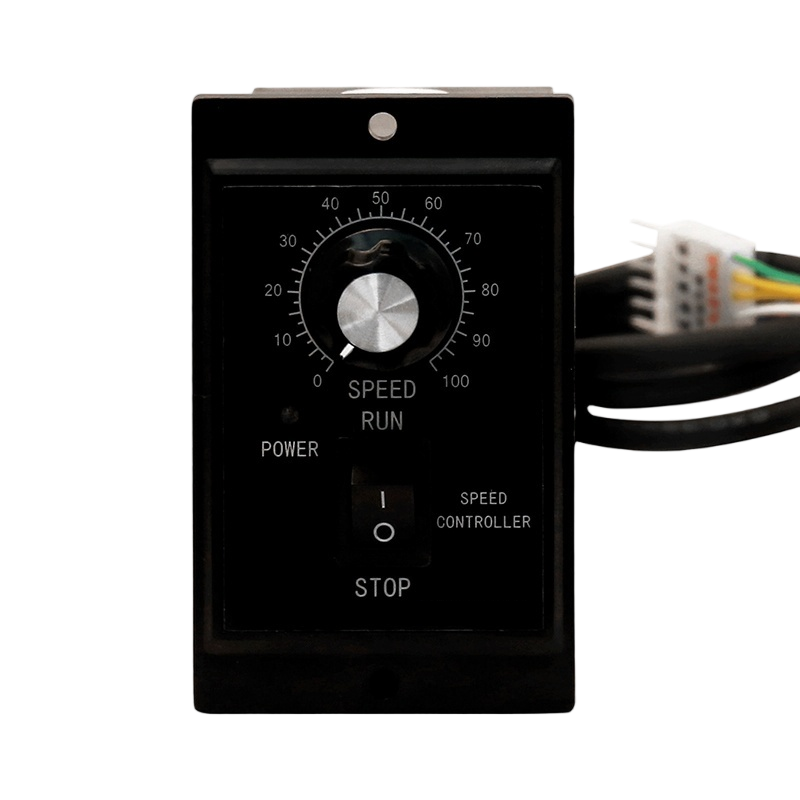

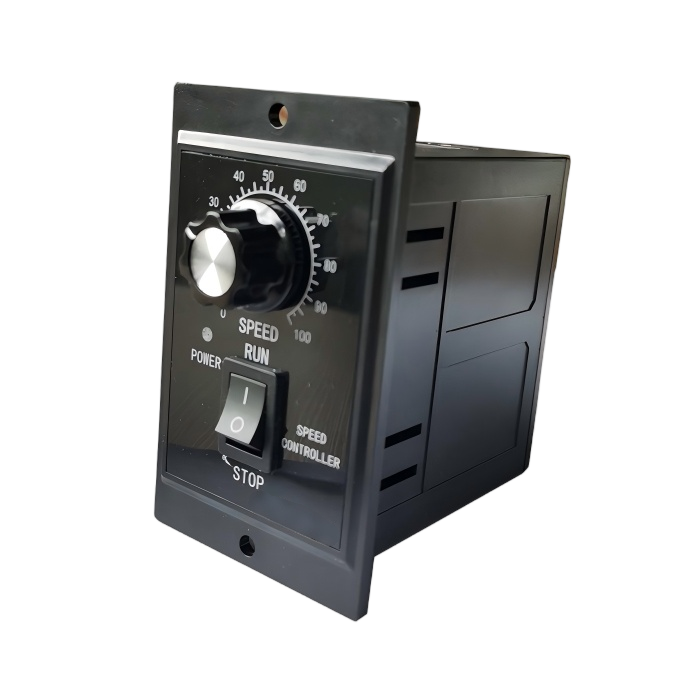

The US Series Panel-Mount AC Speed Controller is a high-performance electronic speed regulating drive designed specifically for micro AC speed control gear motors. Utilizing an advanced closed-loop speed control circuit paired with the motor's internal tachogenerator, the US series maintains precise and smooth speed regulation across a wide operating range, ensuring steady rotation even during sudden load changes. The front panel incorporates an easy-to-read speed knob (0–100 scale), a POWER status LED indicator, and a RUN/STOP rocker switch, providing a compact, streamlined interface for control panels and electrical cabinets.
