ZDRV.A24 Series
· Digital LED Display & Intelligent Closed-Loop Control.
· Contactless Reversing & Adjustable Soft Start/Stop.
· Dual Speed Adjustment Modes & Easy Panel Integration.
· Wide Voltage & Comprehensive Power Coverage.
■ ZDRV-A24 Series Model naming
ZDRV①
.A24②
-
200③
S2④
-
DB⑤
| Item | Technical Specification & Meaning |
|---|---|
| ① Model Type | ZDRV: Speed Control & Electromagnetic Brake Motor Controller Series |
| ② Series | A24: Series Code |
| ③ Motor Power | 6~200 (W): Applicable Max. Motor Power Range (e.g. 200 = 200W) |
| ④ Power Supply | S1: Single Phase 110V ±10% | S2: Single Phase 220V ±10% |
| ⑤ Function | D: With Digital Display | B: With Brake |
ZDRV-A24 Series - Performance & Parameter Specifications
| Applicable Motor Type | Speed Control and Electromagnetic Brake Motor (with Isolation Magnet Module) | ||||
|---|---|---|---|---|---|
| Applicable Motor Power | 6W ～ 200W | ||||
| Installation Method | Built-in Type | ||||
| Motion Control Function | Controlled by external switch including speed control, slow acceleration, slow deceleration, power-off electromagnetic braking, 3-stage speed controlling. | ||||
| Speed Control Methods | Press ▲, ▼ button on panel; Knob on panel; 0 ～ 5V analog quantity | ||||
| Speed Control Range | 50Hz: 90 ~ 1400r/min | 60Hz: 90 ~ 1700r/min (User can set according to motor poles, power supply frequency, and usage requirements) | ||||
| Run Capacitor | External Type (Externally installed, capacitor is packed with speed control motor and users need to connect it) | ||||
| Input Power | Single Phase 220V ± 10%; 50Hz-60Hz | ||||
| Usage Environment | Environment Temperature: -10°C ~ +40°C (No freezing) | Humidity: < 85% RH (No condensation) | ||||
Panel Controller Series - Product Matrix & Specification Comparison
| Product Series | A20 | A21 | A22 | A23 | A24 |
|---|---|---|---|---|---|
| Model Type | ZF□□C | ZDRV.A21-□S2-D | ZDRV.A22-□S2-DB | ZDRV.A23-□S2-DB | ZDRV.A24-□S2-DB |
| Product Image |
|
|
|
|
|
| Supply Voltage | Single Phase AC 220V | ||||
| Power Frequency | 50Hz / 60Hz | ||||
| Speed Control Range | 50Hz: 90–1400 r/min | 60Hz: 90–1700 r/min | ||||
| Speed Control Method | Panel ▲/▼ Buttons; Panel Knob |
Panel ▲/▼ Buttons; Panel Knob |
Panel ▲/▼ Buttons; Panel Knob; 0–5/10V Analog Signal |
Panel ▲/▼ Buttons; Panel Knob |
Panel ▲/▼ Buttons; Panel Knob; 0–5/10V Analog Signal |
| Operating Control Effect | Soft Speed Accel/Decel | Soft Torque Adjustment | Soft Speed Accel/Decel; 3-Stage Speed Control |
Soft Speed Accel/Decel; Power-off Elec. Brake |
Soft Speed Accel/Decel; 3-Stage Speed Control; Power-off Elec. Brake |
| Applicable Motor | Speed Control Motor | Torque Motor | Speed Control Motor | Speed Control Motor | Speed Control Motor |
| Run Capacitor | Built-in (No External Needed) |
External (User Connection Required) |
External (User Connection Required) |
Built-in (No External Needed) |
External (User Connection Required) |
■ Features For ZDRV.A24 Series AC Speed Controller

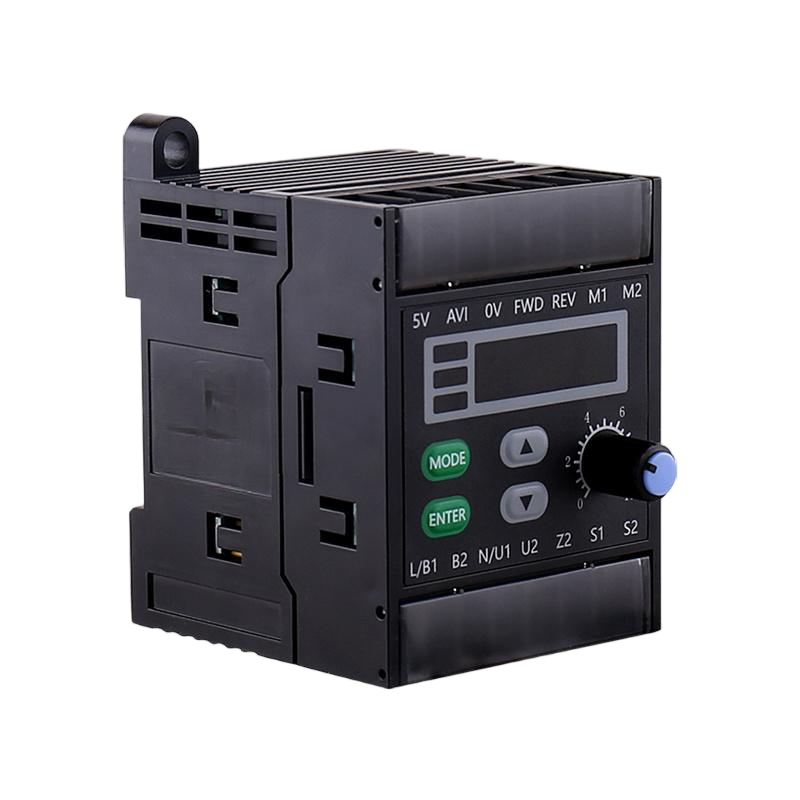

The ZDRV.A24 Series DIN-Rail Mount Digital AC Speed Controller is a high-performance digital motor drive engineered specifically for internal control cabinet integration and automated motion systems. Featuring a dual mounting structure that supports standard 35mm DIN-rail snapping as well as wall-mounting screws, the ZDRV.A24 series mounts effortlessly directly onto electrical cabinet rails, solving the common issues of excessive cabinet space consumption and cluttered wiring to deliver a clean, standardized enclosure layout.

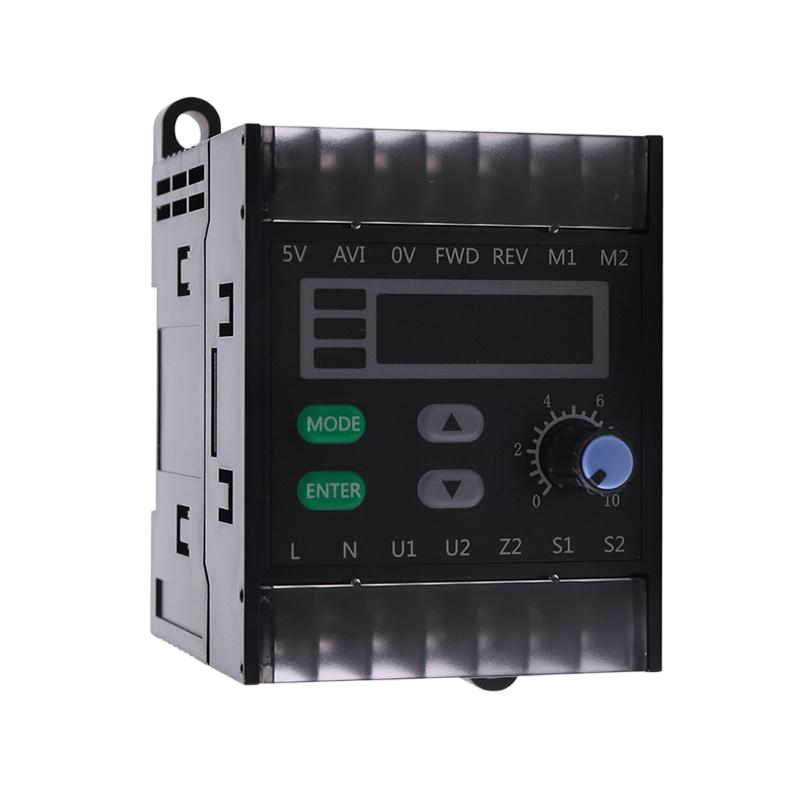

Driven by an internal high-performance microprocessor (MCU) and a closed-loop tachometer feedback system, the ZDRV.A24 series incorporates a front-panel bright LED digital display, a smooth speed potentiometer knob, and digital programming keys for real-time visual monitoring of actual motor operating RPM and system status. The controller is designed with dual-sided terminal blocks protected by transparent covers: top terminals accommodate external FWD/REV directional switching, 0–5V/AVI analog speed inputs, and M1/M2 multi-step speed selection, while bottom terminals connect to AC power mains, motor windings (U1, U2, Z2), and tachometer feedback (S1, S2). Furthermore, operators can configure 0.1–10 second soft-start and soft-stop acceleration profiles via the digital menu to eliminate mechanical impact during startup.
Compatible with single-phase AC 110V/220V power supply, the ZDRV.A24 series seamlessly drives micro AC speed-control gear motors ranging from 6W to 250W. The full model lineup includes ZDRV.A24-6S2-DB , ZDRV.A24-15S2-DB , ZDRV.A24-25S2-DB , ZDRV.A24-40S2-DB , ZDRV.A24-60S2-DB , ZDRV.A24-90S2-DB , ZDRV.A24-120S2-DB , ZDRV.A24-140S2-DB , and ZDRV.A24-200S2-DB . It is widely deployed across industrial assembly line cabinets, packaging machinery, food processing automation, logistics sorting systems, and PLC-controlled equipment, standing as an ideal drive solution for digital control panel upgrades.
