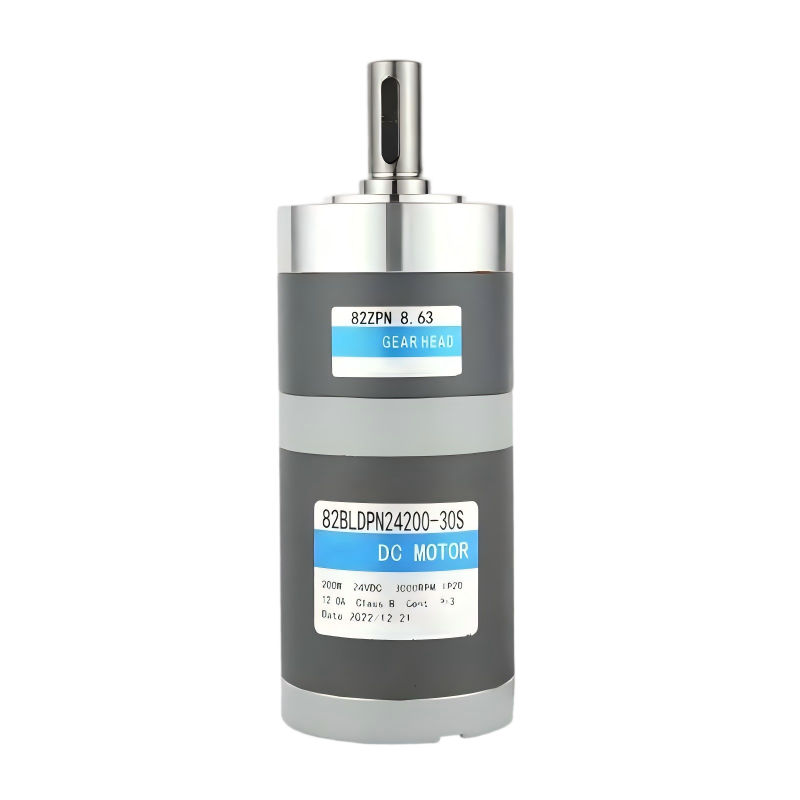

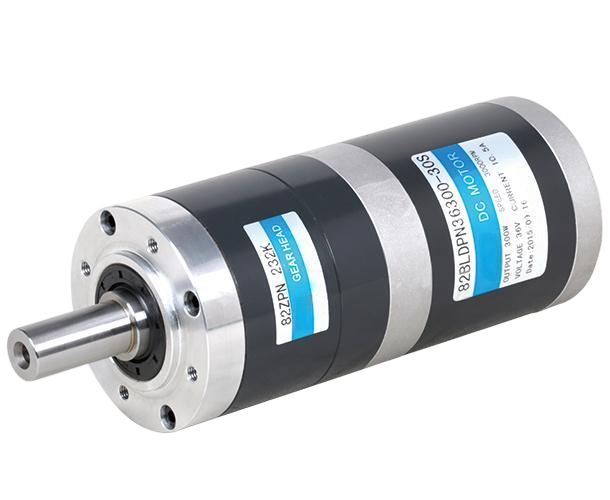

82BLDPN 200W/300W Brushless Planetary Gear Motor
· High Torque & Compact Design
· Low Noise & High Efficiency
· Versatile Voltage & Power Options
· Flexible Customization& Long Lifespan
■ Motor Model Numbering System
| Item | Technical Specification & Meaning |
|---|---|
| ① Motor Outline Dimension |
22: Outer diameter Φ22mm
52: Outer diameter Φ52mm
82: Outer diameter Φ82mm
32: Outer diameter Φ32mm
62: Outer diameter Φ62mm
105: Outer diameter Φ105mm
42: Outer diameter Φ42mm
72: Outer diameter Φ72mm
120: Outer diameter Φ120mm
|
| ② Motor Type |
BLDPN: BLDC motor, matched with planetary gearbox
DPN: Brush DC motor, matched with planetary gearbox
|
| ③ Rated Voltage For The Motor Using | 12: 12V | 24: 24V |
| ④ Rated Output Power For The Motor | 40: 40W | 60: 60W |
| ⑤ Rated Output Speed For The Motor | 20S: 2000RPM | 30S: 3000RPM |
■ Reducer Model Numbering System
| Item | Technical Specification & Meaning |
|---|---|
| ① Gear Box External Diameter |
22: Gear box external diameter Φ22mm
52: Gear box external diameter Φ52mm
82: Gear box external diameter Φ82mm
32: Gear box external diameter Φ32mm
62: Gear box external diameter Φ62mm
105: Gear box external diameter Φ105mm
42: Gear box external diameter Φ42mm
72: Gear box external diameter Φ72mm
120: Gear box external diameter Φ120mm
|
| ② Type of Input Shaft |
ZPN: Gear box input shaft is helical gear
|
| ③ Gear Ratio |
(e.g.) 303: Reduction ratio of 303:1
|
■ Brushed DC Motor Technical Data
| Motor Type | Voltage V |
Power W |
No-load Current A |
No-load Speed RPM |
Rated Current A |
Rated Speed RPM |
Rated Torque N.m |
Motor Life H |
|---|---|---|---|---|---|---|---|---|
| 82DPN1290-30S | 12 | 90 | 2.5 | 3500 | 10.5 | 3000 | 0.287 | 2000 |
| 82DPN24120-30S | 24 | 120 | 2.0 | 3400 | 7.20 | 3000 | 0.382 | 2000 |
| 82DPN48180-30S | 48 | 180 | 1.5 | 3400 | 5.50 | 3000 | 0.573 | 2000 |
■ BLDC Planetary Gear Motor Technical Data – 82DPN24120-30S
| Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output shaft speed r/min |
822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
| Allowable torque N.m |
1.30 | 1.80 | 2.30 | 3.00 | 4.20 | 5.90 | 7.60 | 8.70 | 10.5 | 13.8 | 18.0 | 18.7 | 22.6 | 25.5 | 28.7 | 33.2 | 35.6 | 40.5 | 46.2 | 53.4 | 64.6 | 84.0 | 84.0 |
| Reduction stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
■ Dimensions (Unit mm)
■ Gearbox Technical Data
| Motor Type | Gearbox Model | Gear Ratio | L Dimension (mm) | |
|---|---|---|---|---|
| 82DPN | 82PN□ | Stage 1 | 3.65～8.63 | 63.70 |
| Stage 2 | 13.53～58.22 | 80.50 | ||
| Stage 3 | 67.08～392.98 | 103.2 | ||
■ Wiring Diagram
■ Features For DC Brushless Planetary Gear Motor
Designed for high-precision and continuous-duty motion control applications, our Brushless Planetary Gear Motors combine the superior longevity and high efficiency of brushless DC motor technology with the high torque density of precision planetary gearheads. Featuring a compact coaxial design, this series eliminates mechanical brush wear, resulting in a maintenance-free operation, low EMI noise, and an exceptionally long service life. With excellent speed regulation and extensive customization options, these gear motors provide a highly reliable driving solution for robotics, AGVs, medical equipment, and advanced industrial automation.
