Output Flange
· High Energy Efficiency.
· Superior Torque & Load Capacity.
· NMRV-Compatible Dimensional Design.
· Quiet & Smooth Operation.
| HKM Reducer Dimensions Table | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HKM | C | A | B | G | G3 | a | C1 | KE | a2 | L | G1 | M | E(h8) | A1 | R | P | Q | N | V |
| 0502 | 80 | 121 | 155 | 121 | 60 | 57 | 70 | 4-M8*12 | 45° | 87 | 92 | 85 | 70 | 85 | 8.5 | 100 | 75 | 95 | 40 |
| 0503 | 80 | 121 | 155 | 155 | 60 | 21.5 | 70 | 4-M8*12 | 45° | 87 | 92 | 85 | 70 | 85 | 8.5 | 100 | 75 | 95 | 40 |
| 0632 | 100 | 144 | 174 | 144 | 72 | 64.5 | 85 | 7-M8*14 | 45° | 106 | 112 | 95 | 80 | 103 | 8.5 | 110 | 80 | 102 | 50 |
| 0633 | 100 | 144 | 174 | 178 | 72 | 29 | 85 | 7-M8*14 | 45° | 106 | 112 | 95 | 80 | 103 | 8.5 | 110 | 80 | 102 | 50 |
| 0752 | 120 | 173 | 205 | 173 | 86 | 74.5 | 90 | 7-M8*16 | 45° | 114 | 120 | 115 | 95 | 112 | 11.5 | 140 | 93 | 119 | 60 |
| 0753 | 120 | 173 | 205 | 213 | 86 | 30.5 | 90 | 7-M8*16 | 45° | 114 | 120 | 115 | 95 | 112 | 11.5 | 140 | 93 | 119 | 60 |
| 0902 | 140 | 206 | 238 | 206 | 103 | 88 | 100 | 7-M10*18 | 45° | 134 | 140 | 130 | 110 | 130 | 13 | 160 | 102 | 135 | 70 |
| 0903 | 140 | 206 | 238 | 246 | 103 | 44 | 100 | 7-M10*18 | 45° | 134 | 140 | 130 | 110 | 130 | 13 | 160 | 102 | 135 | 70 |
| 1102 | 170 | 255 | 295 | 255 | 127.5 | 108 | 115 | 7-M10*18 | 45° | 148 | 155 | 165 | 130 | 144 | 14 | 185 | 125 | 167.5 | 85 |
| 1103 | 170 | 255 | 295 | 305 | 127.5 | 52 | 115 | 7-M10*18 | 45° | 148 | 155 | 165 | 130 | 144 | 14 | 185 | 125 | 167.5 | 85 |
■ Features For Hypoid Gearbox

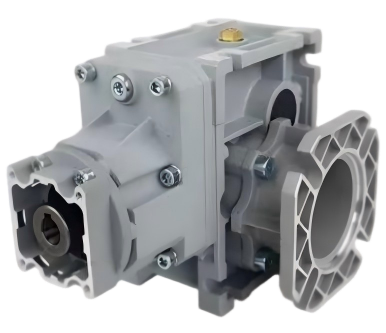

This high-efficiency Hypoid Gearbox engineered with spiral hypoid bevel gearing provides a superior, energy-saving alternative to conventional worm gear units. By delivering up to 92%–95% efficiency across wide reduction ratios, it significantly minimizes power loss and thermal buildup during continuous operation. Designed with standardized NMRV-interchangeable mounting geometry, an IEC motor flange, and a keyway hollow output shaft, it allows seamless, hassle-free replacement on existing machinery without mechanical modifications. Encased in a rugged, lightweight die-cast aluminum alloy housing with flexible multi-face mounting options, this gearbox delivers reliable torque, quiet performance, and exceptional durability for conveyor systems, packaging automation, textile machinery, and material handling equipment.
