HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.12	4.8	215	300	291.79	4100	0.6	HKM0503 63B5	6314
	5.7	180	250	244.29	4100	0.72
	7	148	200	200.44	4100	0.88
	9.5	108	150	146.67	4000	1.2
	11.6	89	125	120.34	3770	1.5
	13.9	74	100	101.04	3560	1.3
	18.8	55	75	74.62	3220	1.5
	22	46	60	62.36	3030	2.8
	27	39	50	52.36	2860	2.6
	24	44	60	58.36	2960	3.0	HKM0502 63B5	6314
	29	37	50	48.86	2790	3.5
	35	30	40	40.09	2610	4.3
	48	22	30	29.33	2350	5.9
	58	18.1	25	24.07	2200	7.2
	69	15.2	20	20.21	2080	6.6
	94	11.2	15	14.92	1880	7.1
	112	9.4	12.5	12.47	1770	13.8
	134	7.9	10	10.47	1670	12.7
	181	5.8	7.5	7.73	1510	13.7
	4.6	223	300	302.5	4800	0.9	HKM0633 63B5	6314
	5.7	179	250	243.57	4800	1.1
	7.1	145	200	196.43	4800	1.2
	9.2	112	150	151.56	4650	1.8
	11.5	90	125	122.22	4330	2.0
	13.8	75	100	101.27	4070	2.0
	19.1	54	75	73.33	3650	2.0
	22	47	60	63.33	3480	3.9
	27	39	50	52.48	3270	3.9
	23	46	60	60.5	3420	4.4	HKM0632 63B5	6314
	29	37	50	48.71	3190	5.5
	36	30	40	39.29	2970	6.1
	46	23	30	30.31	2720	8.8
	4.7	219	300	297.21	6500	1.6	HKM0753 63B5	6314
	5.8	177	250	240.89	6500	2.0
	7.0	148	200	200.66	6500	2.0
	9.3	111	150	151.2	6500	3.1
	11.1	93	125	125.95	5980	3.2
	14.1	73	100	99.22	5520	3.3
	18.6	56	75	75.45	5040	3.6

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.12	4.7	217	300	295.18	8300	2.3	HKM0903 63B5	6314
	5.8	177	250	240.89	8300	2.8
	7.0	148	200	200.66	8300	3.2
	9.3	111	150	151.2	8050	4.5
0.18	9.6	161	300	291.79	4000	0.81	HKM0503 63B5	6312
	11.5	135	250	244.29	3790	0.96
	14.0	111	200	200.44	3550	1.2
	19.1	81	150	146.67	3200	1.6
	23	66	125	120.34	2990	2.0
	28	56	100	101.04	2820	1.8
	38	41	75	74.62	2550	1.9
	45	34	60	62.36	2400	3.8
	53	29	50	52.36	2270	3.5
	11.6	133	125	120.34	3770	0.98	HKM0503 63B5	6324
	13.9	112	100	101.04	3560	0.9
	18.8	82	75	74.62	3220	0.97
	22	69	60	62.36	3030	1.9
	27	58	50	52.36	2860	1.7
	24	66	60	58.36	2960	2	HKM0502 63B5	6324
	29	55	50	48.86	2790	2.4
	35	45	40	40.09	2610	2.9
	48	33	30	29.33	2350	3.9
	58	27	25	24.07	2200	4.8
	69	23	20	20.21	2080	4.4
	94	17.2	15	14.92	1880	4.7
	14.4	107	60	62.36	3510	1.2	HKM0503 71B5/B14	7116
	17.2	90	50	52.36	3310	1.1	HKM0503 71B5/B14	7116
	15.4	103	60	58.36	3430	1.3	HKM0502 71B5/B14	7116
	18.4	86	50	48.86	3240	1.5
	22	70	40	40.09	3030	1.8
	31	52	30	29.33	2730	2.5
	37	42	25	24.07	2550	3.1
	45	36	20	20.21	2410	2.8
	60	26	15	14.92	2180	3.1
	72	22	12.5	12.47	2050	5.9
	86	18.4	10	10.47	1930	5.4
	116	13.6	7.5	7.73	1750	5.9
	9.3	167	300	302.50	4650	1.2	HKM0633 63B5	6312
	11.5	135	250	243.57	4330	1.5
	14.3	109	200	196.43	4030	1.7
	18.5	84	150	151.56	3690	2.4
	23	68	125	122.22	3440	2.7

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal i	Actual i	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.18	28	56	100	101.27	3230	2.7	HKM0633 63B5	6312
	38	41	75	73.33	2900	2.7
	44	35	60	63.33	2760	5.1
	53	29	50	52.48	2590	5.2
	7.1	217	200	196.43	4800	0.83	HKM0633 63B5	6324
	9.2	167	150	151.56	4650	1.2
	11.5	135	125	122.22	4330	1.3
	13.8	112	100	101.27	4070	1.3
	19.1	81	75	73.33	3650	1.4
	22	70	60	63.33	3480	2.6
	27	58	50	52.48	3270	2.6
	23	68	60	60.50	3430	2.9	HKM0632 63B5	6324
	29	55	50	48.71	3190	3.6
	36	44	40	39.29	2970	4.1
	7.4	210	125	122.22	4800	0.86	HKM0633 71B5/B14	7116
	8.9	174	100	101.27	4720	0.86
	12.3	126	75	73.33	4230	0.87
	14.2	109	60	63.33	4030	1.7
	17.1	90	50	52.48	3790	1.7
	14.9	106	60	60.50	3970	1.9	HKM0632 71B5/B14	7116
	18.5	86	50	48.71	3690	2.3
	23	69	40	39.29	3440	2.6
	30	53	30	30.31	3150	3.8
	37	43	25	24.44	2930	4.2
	44	36	20	20.25	2760	4.2
	61	26	15	14.67	2470	4.3
	9.4	164	300	297.21	6320	2.1	HKM0753 63B5	6312
	11.6	133	250	240.89	5890	2.6
	14.0	111	200	200.66	5540	2.7
	18.5	84	150	151.20	5040	4.2
	4.7	328	300	297.21	6500	1.1	HKM0753 63B5	6324
	5.8	266	250	240.89	6500	1.3
	7.0	222	200	200.66	6500	1.4
	9.3	167	150	151.20	6500	2.1
	11.1	139	125	125.95	5980	2.2
	14.1	110	100	99.22	5520	2.2
	18.6	83	75	75.45	5040	2.4
	3.7	414	250	240.89	6500	0.85	HKM0753 71B5/B14	7116
	4.5	345	200	200.66	6500	0.87
	6.0	260	150	151.20	6500	1.3

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.18	7.1	217	125	125.95	6500	1.4	HKM0753 71B5/B14	7116
	9.1	171	100	99.22	6400	1.4
	11.9	130	75	75.45	5840	1.5
	14.4	107	60	62.43	5480	2.8
	18.3	85	50	49.18	5060	2.8
	15.1	107	60	59.44	5390	3.4	HKM0752 71B5/B14	7116
	18.7	85	50	48.18	5030	4.1
	22	71	40	40.13	4730	4.3
	9.5	163	300	295.18	7990	3.1	HKM0903 63B5	6312
	11.6	133	250	240.89	7470	3.8
	14.0	111	200	200.66	7030	4.3
	4.7	326	300	295.18	8300	1.5	HKM0903 63B5	6324
	5.8	266	250	240.89	8300	1.9
	7.0	222	200	200.66	8300	2.2
	9.3	167	150	151.20	8050	3.0
	11.1	139	125	125.95	7580	3.4
	14.1	110	100	99.22	7000	3.5
	18.6	83	75	75.45	6390	3.6
	3.0	507	300	295.18	8300	1.0	HKM0903 71B5/B14	7116
	3.7	414	250	240.89	8300	1.2
	4.5	345	200	200.66	8300	1.4
	6.0	260	150	151.20	8300	1.9
	7.1	217	125	125.95	8300	2.2
	9.1	171	100	99.22	8110	2.2
	11.9	130	75	75.45	7400	2.3
	14.4	107	60	62.43	6950	4.5
	18.3	85	50	49.18	6420	4.5
	3.0	520	300	296.10	10000	1.5	HKM1103 71B5/B14	7116
	3.7	420	250	244.29	10000	1.8
	4.4	355	200	206.29	10000	2.1
	5.9	264	150	153.33	10000	2.8
	7.0	223	125	129.48	9840	3.4
	8.7	178	100	103.64	9130	3.6
	11.9	130	75	75.55	8220	4.0
0.25	19.1	113	150	146.67	3200	1.2	HKM0503 63B5	6322
	23	92	125	120.34	2990	1.4
	28	78	100	101.04	2820	1.3
	38	57	75	74.62	2550	1.4
	45	48	60	62.36	2400	2.7
	53	40	50	52.36	2270	2.5

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.25	22	96	60	62.36	3030	1.4	HKM0503 71B5/B14	7114
	27	80	50	52.36	2860	1.2	HKM0503 71B5/B14	7114
	24	92	60	58.36	2960	1.4	HKM0502 71B5/B14	7114
	29	77	50	48.86	2790	1.7
	35	63	40	40.09	2610	2.1
	48	46	30	29.33	2350	2.8
	58	38	25	24.07	2200	3.4
	69	32	20	20.21	2080	3.2
	94	23	15	14.92	1880	3.4
	15.4	142	60	58.36	3430	0.9	HKM0502 71B5/B14	7126
	18.4	119	50	48.86	3240	1.1
	22	98	40	40.09	3030	1.3
	31	72	30	29.33	2730	1.8
	37	59	25	24.07	2550	2.2
	45	49	20	20.21	2410	2.0
	60	36	15	14.92	2180	2.2
	72	30	12.5	12.47	2050	4.3
	86	26	10	10.47	1930	3.9
	116	19	7.5	7.73	1750	4.2
	9.3	232	300	302.50	4650	0.86	HKM0633 63B5	6322
	11.5	187	250	243.57	4330	1.1
	14.3	151	200	196.43	4030	1.2
	18.5	116	150	151.56	3690	1.7
	23	94	125	122.22	3440	1.9
	28	78	100	101.27	3230	1.9
	38	56	75	73.33	2900	2.0
	44	49	60	63.33	2760	3.7
	53	40	50	52.48	2590	3.7
	9.2	233	150	151.56	4650	0.86	HKM0633 71B5/B14	7114
	11.5	188	125	122.22	4330	0.96
	13.8	155	100	101.27	4070	0.97
	19.1	113	75	73.33	3650	1.0
	22	97	60	63.33	3480	1.9
	27	81	50	52.48	3270	1.9
	23	95	60	60.50	3430	2.1	HKM0632 71B5/B14	7114
	29	76	50	48.71	3190	2.6
	36	62	40	39.29	2970	2.9
	46	48	30	30.31	2720	4.2
	14.2	151	60	63.33	4030	1.2	HKM0633 71B5/B14	7126
	17.1	125	50	52.48	3790	1.2	HKM0633 71B5/B14	7126

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.25	14.9	148	60	60.50	3970	1.4	HKM0632 71B5/B14	7126
	18.5	119	50	48.71	3690	1.7
	23	96	40	39.29	3440	1.9
	30	74	30	30.31	3150	2.7
	37	60	25	24.44	2930	3.0
	44	49	20	20.25	2760	3.0
	61	36	15	14.67	2470	3.1
	9.4	228	300	297.21	6320	1.5	HKM0753 63B5	6322
	11.6	185	250	240.89	5890	1.9
	14.0	154	200	200.66	5540	1.9
	18.5	116	150	151.20	5040	3.0
	22	97	125	125.95	4750	3.1
	28	76	100	99.22	4380	3.2
	37	58	75	75.45	4000	3.5
	5.8	370	250	240.89	6500	0.95	HKM0753 71B5/B14	7114
	7.0	308	200	200.66	6500	1.0
	9.3	232	150	151.20	6500	1.5
	11.1	193	125	125.95	5980	1.6
	14.1	152	100	99.22	5520	1.6
	18.6	116	75	75.45	5040	1.7
	22	96	60	62.43	4730	3.1
	28	75	50	49.18	4370	3.2
	24	93	60	59.44	4660	3.8	HKM0752 71B5/B14	7114
	29	76	50	48.18	4340	4.6	HKM0752 71B5/B14	7114
	6.0	361	150	151.20	6500	0.97	HKM0753 71B5/B14	7126
	7.1	301	125	125.95	6500	1.0
	9.1	237	100	99.22	6400	1.0
	11.9	180	75	75.45	5840	1.1
	14.4	149	60	62.43	5480	2.0
	18.3	117	50	49.18	5060	2.0
	15.1	145	60	59.44	5390	2.4	HKM0752 71B5/B14	7126
	18.7	118	50	48.18	5030	3.0
	22	98	40	40.13	4730	3.1
	9.5	227	300	295.18	7990	2.2	HKM0903 63B5	6322
	11.6	185	250	240.89	7470	2.7
	14.0	154	200	200.66	7030	3.1
	18.5	116	150	151.20	6390	4.3
	4.7	453	300	295.18	8300	1.1	HKM0903 71B5/B14	7114
	5.8	370	250	240.89	8300	1.4
	7.0	308	200	200.66	8300	1.6

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.25	9.3	232	150	151.20	8050	2.2	HKM0903 71B5/B14	7114
	11.1	193	125	125.95	7580	2.5
	14.1	152	100	99.22	7000	2.5
	18.6	116	75	75.45	6390	2.6
	22	96	60	62.43	6000	5.0
	28	75	50	49.18	5540	5.0
	3.0	705	300	295.18	8300	0.71	HKM0903 71B5/B14	7126
	3.7	575	250	240.89	8300	0.9
	4.5	479	200	200.66	8300	1.0
	6.0	361	150	151.20	8300	1.4
	7.1	301	125	125.95	8300	1.6
	9.1	237	100	99.22	8110	1.6
	11.9	180	75	75.45	7400	1.7
	14.4	149	60	62.43	6950	3.2
	18.3	117	50	49.18	6420	3.2
	15.2	144	60	59.04	6820	3.5	HKM0902 71B5/B14	7126
	18.7	118	50	48.18	6370	4.3	HKM0902 71B5/B14	7126
	4.7	454	300	296.10	10000	1.7	HKM1103 71B5/B14	7114
	5.7	375	250	244.29	10000	2.0
	6.8	317	200	206.29	9920	2.4
	9.1	235	150	153.33	8980	3.2
	10.8	199	125	129.48	8490	3.8
	13.5	159	100	103.64	7880	4.1
	3.0	707	300	296.10	10000	1.1	HKM1103 71B5/B14	7126
	3.7	583	250	244.29	10000	1.3
	4.4	493	200	206.29	10000	1.5
	5.9	366	150	153.33	10000	2.0
	7.0	309	125	129.48	9840	2.4
	8.7	247	100	103.64	9130	2.6
	11.9	180	75	75.55	8220	2.9
0.37	23	137	125	120.34	2990	0.95	HKM0503 71B5/B14	7112
	28	115	100	101.04	2820	0.87
	38	85	75	74.62	2550	0.94
	45	71	60	62.36	2400	1.8
	53	59	50	52.36	2270	1.7
	24	136	60	58.36	2960	0.96	HKM0502 71B5/B14	7124
	29	113	50	48.86	2790	1.1
	35	93	40	40.09	2610	1.4
	48	68	30	29.33	2350	1.9
	58	56	25	24.07	2200	2.3

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.37	69	47	20	20.21	2080	2.1	HKM0502 71B5/B14	7124
	94	35	15	14.92	1880	2.3
	112	29	12.5	12.47	1770	4.5
	134	24	10	10.47	1670	4.1
	181	17.9	7.5	7.73	1510	4.5
	22	145	40	40.09	3030	0.9	HKM0502 80B5/B14	8016
	31	106	30	29.33	2730	1.2
	37	87	25	24.07	2550	1.5
	45	73	20	20.21	2410	1.4
	60	54	15	14.92	2180	1.5
	72	45	12.5	12.47	2050	2.9
	86	38	10	10.47	1930	2.6
	116	28	7.5	7.73	1750	2.9
	18.5	172	150	151.56	3690	1.2	HKM0633 71B5/B14	7112
	23	139	125	122.22	3440	1.3
	28	115	100	101.27	3230	1.3
	38	83	75	73.33	2900	1.3
	44	72	60	63.33	2760	2.5
	53	60	50	52.48	2590	2.5
	22	144	60	63.33	3480	1.3	HKM0633 71B5/B14	7124
	27	119	50	52.48	3270	1.3	HKM0633 71B5/B14	7124
	23	140	60	60.50	3430	1.4	HKM0632 71B5/B14	7124
	29	113	50	48.71	3190	1.8
	36	91	40	39.29	2970	2.0
	46	70	30	30.31	2720	2.8
	57	57	25	24.44	2530	3.2
	69	47	20	20.25	2380	3.2
	95	34	15	14.67	2130	3.2
	14.9	219	60	60.50	3970	0.92	HKM0632 80B5/B14	8016
	18.5	176	50	48.71	3690	1.1
	23	142	40	39.29	3440	1.3
	30	109	30	30.31	3150	1.8
	37	88	25	24.44	2930	2.0
	44	73	20	20.25	2760	2.1
	61	53	15	14.67	2470	2.1
	71	46	12.5	12.67	2360	3.9
	86	38	10	10.50	2210	4.0
	118	27	7.5	7.60	1990	4.0
	9.4	338	300	297.21	6320	1.0	HKM0753 71B5/B14	7112
	11.6	274	250	240.89	5890	1.3	HKM0753 71B5/B14	7112

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.37	14.0	228	200	200.66	5540	1.3	HKM0753 71B5/B14	7112
	18.5	172	150	151.20	5040	2.0
	22	143	125	125.95	4750	2.1
	28	113	100	99.22	4380	2.1
	37	86	75	75.45	4000	2.3
	45	71	60	62.43	3750	4.2
	57	56	50	49.18	3470	4.3
	9.3	343	150	151.20	6500	1.0	HKM0753 71B5/B14	7124
	11.1	286	125	125.95	5980	1.0
	14.1	225	100	99.22	5520	1.1
	18.6	171	75	75.45	5040	1.2
	22	142	60	62.43	4730	2.1
	28	112	50	49.18	4370	2.1
	24	138	60	59.44	4660	2.5	HKM0752 71B5/B14	7124
	29	112	50	48.18	4340	3.1
	35	93	40	40.13	4080	3.2
	14.4	221	60	62.43	5480	1.4	HKM0753 80B5/B14	8016
	18.3	174	50	49.18	5060	1.4	HKM0753 80B5/B14	8016
	15.1	215	60	59.44	5390	1.6	HKM0752 80B5/B14	8016
	18.7	174	50	48.18	5030	2.0
	22	145	40	40.13	4730	2.1
	30	109	30	30.24	4310	3.2
	36	91	25	25.19	4050	3.3
	45	72	20	19.84	3740	3.3
	60	55	15	15.09	3410	3.7
	9.5	335	300	295.18	7990	1.5	HKM0903 71B5/B14	7112
	11.6	274	250	240.89	7470	1.8
	14.0	228	200	200.66	7030	2.1
	18.5	172	150	151.20	6390	2.9
	22	143	125	125.95	6010	3.4
	28	113	100	99.22	5550	3.4
	37	86	75	75.45	5070	3.5
	4.7	671	300	295.18	8300	0.75	HKM0903 71B5/B14	7124
	5.8	547	250	240.89	8300	0.91
	7.0	456	200	200.66	8300	1.1
	9.3	343	150	151.20	8050	1.5
	11.1	286	125	125.95	7580	1.7
	14.1	225	100	99.22	7000	1.7
	18.6	171	75	75.45	6390	1.8
	22	142	60	62.43	6000	3.4

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.37	28	112	50	49.18	5540	3.4	HKM0903 71B5/B14	7124
	24	137	60	59.04	5890	3.6	HKM0902 71B5/B14	7124
	29	112	50	48.18	5500	4.5	HKM0902 71B5/B14	7124
	6.0	534	150	151.20	8300	0.94	HKM0903 80B5/B14	8016
	7.1	445	125	125.95	8300	1.1
	9.1	351	100	99.22	8110	1.1
	11.9	267	75	75.45	7400	1.1
	14.4	221	60	62.43	6950	2.2
	18.3	174	50	49.18	6420	2.2
	15.2	213	60	59.04	6820	2.3	HKM0902 80B5/B14	8016
	18.7	174	50	48.13	6370	2.9
	22	145	40	40.13	6000	3.3
	9.5	336	300	296.10	8880	2.2	HKM1103 71B5/B14	7112
	11.5	277	250	244.29	8330	2.7
	13.6	234	200	206.29	7870	3.2
	18.3	174	150	153.33	7130	4.3
	4.7	673	300	296.10	10000	1.1	HKM1103 71B5/B14	7124
	5.7	555	250	244.29	10000	1.4
	6.8	469	200	206.29	9920	1.6
	9.1	348	150	153.33	8980	2.2
	10.8	294	125	129.48	8490	2.5
	13.5	235	100	103.64	7880	2.8
	18.5	172	75	75.55	7090	3.0
	4.4	729	200	206.29	10000	1.0	HKM1103 80B5/B14	8016
	5.9	542	150	153.33	10000	1.4
	7.0	458	125	129.48	9840	1.6
	8.7	366	100	103.64	9130	1.8
	11.9	267	75	75.55	8220	1.9
	14.0	227	60	64.18	7780	3.3
	17.5	182	50	51.37	7230	3.6
	15.2	214	60	59.22	7580	3.5	HKM1102 80B5/B14	8016
	18.4	176	50	48.86	7110	4.2	HKM1102 80B5/B14	8016
	45	105	60	62.36	2400	1.2	HKM0503 71B5/B14	7122
	53	88	50	52.36	2270	1.1	HKM0503 71B5/B14	7122
0.55	35	138	40	40.09	2610	0.94	HKM0502 80B5/B14	8014
	48	101	30	29.33	2350	1.3
	58	83	25	24.07	2200	1.6
	69	70	20	20.21	2080	1.4
	94	51	15	14.92	1880	1.6
	112	43	12.5	12.47	1770	3.0

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.55	134	36	10	10.47	1670	2.8	HKM0502 80B5/B14	8014
	181	27	7.5	7.73	1510	3.0	HKM0502 80B5/B14	8014
	37	129	25	24.07	2550	1.0	HKM0502 80B5/B14	8026
	45	109	20	20.21	2410	0.92
	60	80	15	14.92	2180	1.0
	72	67	12.5	12.47	2050	1.9
	86	56	10	10.47	1930	1.8
	116	42	7.5	7.73	1750	1.9
	23	206	125	122.22	3440	0.87	HKM0633 71B5/B14	7122
	28	171	100	101.27	3230	0.88
	38	124	75	73.33	2900	0.9
	44	107	60	63.33	2760	1.7
	53	89	50	52.48	2590	1.7
	23	209	60	60.50	3430	0.96	HKM0632 80B5/B14	8014
	29	168	50	48.71	3190	1.2
	36	136	40	39.29	2970	1.3
	46	105	30	30.31	2720	1.9
	57	84	25	24.44	2530	2.1
	69	70	20	20.25	2380	2.1
	95	51	15	14.67	2130	2.2
	110	44	12.5	12.67	2030	4.1
	133	36	10	10.50	1910	4.1
	184	26	7.5	7.60	1710	4.2
	23	216	40	39.29	3440	0.85	HKM0632 80B5/B14	8026
	30	163	30	30.31	3150	1.2
	37	131	25	24.44	2930	1.4
	44	109	20	20.25	2760	1.4
	61	79	15	14.67	2470	4.4
	71	68	12.5	12.67	2360	2.6
	86	56	10	10.50	2210	2.7
	118	41	7.5	7.60	1990	2.7
	11.6	407	250	240.89	5890	0.86	HKM0753 71B5/B14	7122
	14.0	339	200	200.66	5540	0.9
	18.5	255	150	151.20	5040	1.4
	22	213	125	125.95	4750	1.4
	28	168	100	99.22	4380	1.4
	37	127	75	75.45	4000	1.6
	45	105	60	62.43	3750	2.8
	57	83	50	49.18	3470	2.9
	18.6	255	75	75.45	5040	0.8	HKM0753 80B5/B14	8014

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.55	22	211	60	62.43	4730	1.4	HKM0753 80B5/B14	8014
	28	166	50	49.18	4370	1.4	HKM0753 80B5/B14	8014
	24	205	60	59.44	4660	1.7	HKM0752 80B5/B14	8014
	29	166	50	48.18	4340	2.1
	35	139	40	40.13	4080	2.2
	46	104	30	30.24	3720	3.4
	56	87	25	25.19	3500	3.5
	71	68	20	19.84	3230	3.5
	93	52	15	15.09	2950	3.8
	14.4	328	60	62.43	5480	0.91	HKM0753 80B5/B14	8026
	18.3	258	50	49.18	5060	0.93	HKM0753 80B5/B14	8026
	15.1	319	60	59.44	5390	1.1	HKM0752 80B5/B14	8026
	18.7	259	50	48.18	5030	1.4
	22	215	40	40.13	4730	1.4
	30	162	30	30.24	4310	2.2
	36	135	25	25.19	4050	2.2
	45	107	20	19.84	3740	2.3
	60	81	15	15.09	3410	2.5
	9.5	498	300	295.18	7990	1.0	HKM0903 71B5/B14	7122
	11.6	407	250	240.89	7470	1.2
	14.0	339	200	200.66	7030	1.4
	18.5	255	150	151.20	6390	2.0
	22	213	125	125.95	6010	2.3
	28	168	100	99.22	5550	2.3
	37	127	75	75.45	5070	2.4
	45	105	60	62.43	4760	4.6
	57	83	50	49.18	4390	4.6
	9.3	511	150	151.20	8050	1.0	HKM0903 80B5/B14	8014
	11.1	425	125	125.95	7580	1.1
	14.1	335	100	99.22	7000	1.1
	18.6	255	75	75.45	6390	1.2
	22	211	60	62.43	6000	2.3
	28	166	50	49.18	5540	2.3
	24	204	60	59.04	5890	2.5	HKM0902 80B5/B14	8014
	29	166	50	48.18	5500	3.0
	35	139	40	40.13	5170	3.5
	46	104	30	30.24	4710	4.8
	14.4	328	60	62.43	6950	1.5	HKM0903 80B5/B14	8026
	18.3	258	50	49.18	6420	1.5	HKM0903 80B5/B14	8026
	15.2	317	60	59.04	6820	1.6	HKM0902 80B5/B14	8026

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.55	18.7	259	50	48.18	6370	1.9	HKM0902 80B5/B14	8026
	22	215	40	40.13	6000	2.2
	30	162	30	30.24	5460	3.1
	36	135	25	25.19	5130	3.5
	45	107	20	19.84	4740	3.6
	60	81	15	15.09	4330	3.7
	9.5	500	300	296.10	8880	1.5	HKM1103 71B5/B14	7122
	11.5	412	250	244.29	8330	1.8
	13.6	348	200	206.29	7870	2.2
	18.3	259	150	153.33	7130	2.9
	22	219	125	129.48	6740	3.4
	27	175	100	103.64	6260	3.7
	37	128	75	75.55	5630	4.1
	5.7	825	250	244.29	10000	0.91	HKM1103 80B5/B14	8014
	6.8	697	200	206.29	9920	1.1
	9.1	518	150	153.33	8980	1.4
	10.8	437	125	129.48	8490	1.7
	13.5	350	100	103.64	7880	1.9
	18.5	255	75	75.55	7090	2.0
	22	217	60	64.18	6720	3.5
	27	173	50	51.37	6240	3.7
	24	204	60	59.22	6540	3.7	HKM1102 80B5/B14	8014
	29	169	50	48.86	6130	4.4	HKM1102 80B5/B14	8014
	5.9	805	150	153.33	10000	0.93	HKM1103 80B5/B14	8026
	7.0	680	125	129.48	9840	1.1
	8.7	544	100	103.64	9130	1.2
	11.9	397	75	75.55	8220	1.3
	14.0	337	60	64.18	7780	2.2
	17.5	270	50	51.37	7230	2.4
	15.2	318	60	59.22	7580	2.4	HKM1102 80B5/B14	8026
	18.4	262	50	48.86	7110	2.9
	22	222	40	41.26	6720	3.4
	29	165	30	30.67	6090	4.6
0.75	48	138	30	29.33	2350	0.94	HKM0502 80B5/B14	8024
	58	113	25	24.07	2200	1.1
	69	95	20	20.21	2080	1.1
	94	70	15	14.92	1880	1.1
	112	59	12.5	12.47	1770	2.2
	134	49	10	10.47	1670	2.0
	181	36	7.5	7.73	1510	2.2

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.75	72	91	12.5	12.47	2050	1.4	HKM0502 90B5/B14	90S6
	86	77	10	10.47	1930	1.3
	116	57	7.5	7.73	1750	1.4
	44	146	60	63.33	2760	1.2	HKM0633 80B5/B14	8012
	53	121	50	52.48	2590	1.2	HKM0633 80B5/B14	8012
	29	229	50	48.71	3190	0.87	HKM0632 80B5/B14	8024
	36	185	40	39.29	2970	0.97
	46	143	30	30.31	2720	1.4
	57	115	25	24.44	2530	1.6
	69	95	20	20.25	2380	1.6
	95	69	15	14.67	2130	1.6
	110	60	12.5	12.67	2030	3.0
	133	49	10	10.50	1910	3.0
	184	36	7.5	7.60	1710	3.1
	30	222	30	30.31	3150	0.9	HKM0632 90B5/B14	90S6
	37	179	25	24.44	2930	1.0
	44	148	20	20.25	2760	1.0
	61	107	15	14.67	2470	1.0
	71	93	12.5	12.67	2360	1.9
	86	77	10	10.50	2210	2.0
	118	56	7.5	7.60	1990	2.0
	18.5	348	150	151.20	5040	1.0	HKM0753 80B5/B14	8012
	22	290	125	125.95	4750	1.0
	28	228	100	99.22	4380	1.1
	37	174	75	75.45	4000	1.2
	45	144	60	62.43	3750	2.1
	57	113	50	49.18	3470	2.1
	22	287	60	62.43	4730	1.0	HKM0753 80B5/B14	8024
	28	226	50	49.18	4370	1.1	HKM0753 80B5/B14	8024
	24	280	60	59.44	4660	1.3	HKM0752 80B5/B14	8024
	29	227	50	48.18	4340	1.5
	35	189	40	40.13	4080	1.6
	46	142	30	30.24	3720	2.5
	56	119	25	25.19	3500	2.5
	71	93	20	19.84	3230	2.6
	93	71	15	15.09	2950	2.8
	18.7	353	50	48.18	5030	1.0	HKM0752 90B5/B14	90S6
	22	294	40	40.13	4730	1.0
	30	221	30	30.24	4310	1.6
	36	184	25	25.19	4050	1.6

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.75	45	145	20	19.84	3740	1.7	HKM0752 90B5/B14	90S6
	60	110	15	15.09	3410	1.8
	72	91	12.5	12.49	3210	3.3
	91	72	10	9.84	2960	3.3
	120	55	7.5	7.48	2700	3.7
	11.6	555	250	240.89	7470	0.9	HKM0903 80B5/B14	8012
	14.0	462	200	200.66	7030	1.0
	18.5	348	150	151.20	6390	1.4
	22	290	125	125.95	6010	1.7
	28	228	100	99.22	5550	1.7
	37	174	75	75.45	5070	1.7
	45	144	60	62.43	4760	3.3
	57	113	50	49.18	4390	3.4
	11.1	580	125	125.95	7580	0.83	HKM0903 80B5/B14	8024
	14.1	457	100	99.22	7000	0.83
	18.6	247	75	75.45	6390	0.86
	22	287	60	62.43	6000	1.7
	28	226	50	49.18	5540	1.7
	24	278	60	59.04	5890	1.8	HKM0902 80B5/B14	8024
	29	227	50	48.18	5500	2.2
	35	189	40	40.13	5170	2.5
	46	142	30	30.24	4710	3.5
	56	119	25	25.19	4430	4.0
	71	93	20	19.84	4090	4.1
	93	71	15	15.09	3730	4.2
	14.4	447	60	62.43	6950	1.1	HKM0903 90B5/B14	90S6
	18.3	352	50	49.18	6420	1.1	HKM0903 90B5/B14	90S6
	15.2	432	60	59.04	6820	1.2	HKM0902 90B5/B14	90S6
	18.7	353	50	48.18	6370	1.4
	22	294	40	40.13	6000	1.6
	30	221	30	30.24	5460	2.3
	36	184	25	25.19	5130	2.6
	45	145	20	19.84	4740	2.6
	60	110	15	15.09	4330	2.7
	9.5	682	300	296.10	8880	1.1	HKM1103 80B5/B14	8012
	11.5	562	250	244.29	8330	1.3
	13.6	475	200	206.29	7870	1.6
	18.3	353	150	153.33	7130	2.1
	22	298	125	129.48	6740	2.5
	27	239	100	103.64	6260	2.7

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
0.75	37	174	75	75.55	5630	3.0	HKM1103 80B5/B14	8012
	9.1	706	150	153.33	8980	1.1	HKM1103 80B5/B14	8024
	10.8	596	125	129.48	8490	1.3
	13.5	477	100	103.64	7880	1.4
	18.5	348	75	75.55	7090	1.5
	22	296	60	64.18	6720	2.5
	27	237	50	51.37	6240	2.7
	24	279	60	59.22	6540	2.7	HKM1102 80B5/B14	8024
	29	230	50	48.86	6130	3.3
	34	194	40	41.26	5800	3.9
	8.7	742	100	103.64	9130	0.88	HKM1103 90B5/B14	90S6
	11.9	541	75	75.55	8220	0.96
	14.0	460	60	64.18	7780	1.6
	17.5	368	50	51.37	7230	1.8
	15.2	434	60	59.22	7580	1.7	HKM1102 90B5/B14	90S6
	18.4	358	50	48.86	7110	2.1
	22	302	40	41.26	6720	2.5
	29	225	30	30.67	6090	3.3
	35	190	25	25.90	5750	4.0
	43	152	20	20.73	5340	4.3
1.1	112	86	12.5	12.47	1770	1.5	HKM0502 90B5/B14	90S4
	134	72	10	10.47	1670	1.4
	181	53	7.5	7.73	1510	1.5
	72	134	12.5	12.47	2050	0.97	HKM0502 90B5/B14	90L6
	86	112	10	10.47	1930	0.89
	116	83	7.5	7.73	1750	0.96
	46	209	30	30.31	2720	0.96	HKM0632 90B5/B14	90S4
	57	169	25	24.44	2530	1.1
	69	140	20	20.25	2380	1.1
	95	101	15	14.67	2130	1.1
	110	87	12.5	12.67	2030	2.1
	133	72	10	10.50	1910	2.1
	184	52	7.5	7.60	1710	2.1
	71	136	12.5	12.67	2360	1.3	HKM0632 90B5/B14	90L6
	86	113	10	10.50	2210	1.3
	118	82	7.5	7.60	1990	1.3
	45	211	60	62.43	3750	1.4	HKM0753 80B5/B14	8022
	57	166	50	49.18	3470	1.4	HKM0753 80B5/B14	8022
	24	410	60	59.44	4660	0.85	HKM0752 90B5/B14	90S4
	29	333	50	48.18	4340	1.1	HKM0752 90B5/B14	90S4

HKM.. PERFORMANCE PARAMETER
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
1.1	35	277	40	40.13	4080	1.1	HKM0752 90B5/B14	90S4
	46	209	30	30.24	3720	1.7
	56	174	25	25.19	3500	1.7
	71	137	20	19.84	3230	1.8
	93	104	15	15.09	2950	1.9
	112	86	12.5	12.49	2770	3.5
	142	68	10	9.84	2550	3.5
	187	52	7.5	7.48	2330	3.9
	30	325	30	30.24	4310	1.1	HKM0752 90B5/B14	90L6
	36	271	25	25.19	4050	1.1
	45	213	20	19.84	3740	1.1
	60	162	15	15.09	3410	1.2
	72	134	12.5	12.49	3210	2.2
	91	106	10	9.84	2960	2.3
	120	80	7.5	7.48	2700	2.5
	18.5	511	150	151.20	6390	1.0	HKM0903 80B5/B14	8022
	22	425	125	125.95	6010	1.1
	28	335	100	99.22	5550	1.1
	37	255	75	75.45	5070	1.2
	45	211	60	62.43	4760	2.3
	57	166	50	49.18	4390	2.3
	22	422	60	62.43	6000	1.1	HKM0903 90B5/B14	90S4
	28	332	50	49.18	5540	1.1	HKM0903 90B5/B14	90S4
	24	408	60	59.04	5890	1.2	HKM0902 90B5/B14	90S4
	29	333	50	48.18	5500	1.5
	35	277	40	40.13	5170	1.7
	46	209	30	30.24	4710	2.4
	56	174	25	25.19	4430	2.8
	71	137	20	19.84	4090	2.8
	93	104	15	15.09	3730	2.9
	15.2	634	60	59.04	6820	0.8	HKM0902 90B5/B14	90L6
	18.7	517	50	48.18	6370	0.97
	22	431	40	40.13	6000	1.1
	30	325	30	30.24	5460	1.5
	36	271	25	25.19	5130	1.8
	45	213	20	19.84	4740	1.8
	60	162	15	15.09	4330	1.9
	72	134	12.5	12.49	4060	3.6
	91	106	10	9.84	3750	3.6
	120	80	7.5	7.48	3420	3.7

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
1.1	11.5	825	250	244.29	8330	0.91	HKM1103 80B5/B14	8022
	13.6	697	200	206.29	7870	1.1
	18.3	518	150	153.33	7130	1.4
	22	437	125	129.48	6740	1.7
	27	350	100	103.64	6260	1.9
	37	255	75	75.55	5630	2.0
	44	217	60	64.18	5330	3.5
	55	173	50	51.37	4950	3.7
	10.8	874	125	129.48	8490	0.86	HKM1103 90B5/B14	90S4
	13.5	700	100	103.64	7880	0.93
	18.5	510	75	75.55	7090	1.0
	22	433	60	64.18	6720	1.7
	27	347	50	51.37	6240	1.9
	24	409	60	59.22	6540	1.8	HKM1102 90B5/B14	90S4
	29	337	50	48.86	6130	2.2
	34	285	40	41.26	5800	2.6
	46	212	30	30.67	5250	3.5
	54	179	25	25.90	4960	4.2
	68	143	20	20.73	4610	4.5
	14.0	674	60	64.18	7780	1.1	HKM1103 90B5/B14	90L6
	17.5	540	50	51.37	7230	1.2	HKM1103 90B5/B14	90L6
	15.2	636	60	59.22	7580	1.2	HKM1102 90B5/B14	90L6
	18.4	525	50	48.86	7110	1.4
	22	443	40	41.26	6720	1.7
	29	329	30	30.67	6090	2.3
	35	278	25	25.90	5750	2.7
	43	223	20	20.73	5340	2.9
	60	162	15	15.11	4810	3.2
1.5	112	117	12.5	12.47	1770	1.1	HKM0502 90B5/B14	90L4
	134	99	10	10.47	1670	1.0
	181	73	7.5	7.73	1510	1.1
	57	230	25	24.44	2530	0.8	HKM0632 90B5/B14	90L4
	69	191	20	20.25	2380	0.8
	95	138	15	14.67	2130	0.8
	110	119	12.5	12.67	2030	1.5
	133	99	10	10.50	1910	1.5
	184	72	7.5	7.60	1710	1.5
	45	287	60	62.43	3750	1.0	HKM0753 90B5/B14	90S2
	57	226	50	49.18	3470	1.1	HKM0753 90B5/B14	90S2
	29	454	50	48.18	4340	0.77	HKM0752 90B5/B14	90L4

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
1.5	35	378	40	40.13	4080	0.79	HKM0752 90B5/B14	90L4
	46	285	30	30.24	3720	1.2
	56	237	25	25.19	3500	1.3
	71	187	20	19.84	3230	1.3
	93	142	15	15.09	2950	1.4
	112	118	12.5	12.49	2770	2.6
	142	93	10	9.84	2550	2.6
	187	70	7.5	7.48	2330	2.8
	45	291	20	19.84	3740	0.83	HKM0752 100B5/B14	100L6
	60	221	15	15.09	3410	0.91
	72	183	12.5	12.49	3210	1.6
	91	144	10	9.84	2960	1.7
	120	110	7.5	7.48	2700	1.8
	22	580	125	125.95	6010	0.83	HKM0903 90B5/B14	90S2
	28	457	100	99.22	5550	0.85
	37	347	75	75.45	5070	0.86
	45	287	60	62.43	4760	1.7
	57	226	50	49.18	4390	1.7
	24	556	60	59.04	5890	0.9	HKM0902 90B5/B14	90L4
	29	454	50	48.18	5500	1.1
	35	378	40	40.13	5170	1.3
	46	285	30	30.24	4710	1.8
	56	237	25	25.19	4430	2.0
	71	187	20	19.84	4090	2.0
	93	142	15	15.09	3730	2.1
	112	118	12.5	12.49	3510	4.1
	142	93	10	9.84	3240	4.1
	187	70	7.5	7.48	2950	4.3
	30	443	30	30.24	5460	1.1	HKM0902 100B5/B14	100L6
	36	369	25	25.19	5130	1.3
	45	291	20	19.84	4740	1.3
	60	221	15	15.09	4330	1.4
	72	183	12.5	12.49	4060	2.6
	91	144	10	9.84	3750	2.6
	120	110	7.5	7.48	3420	2.7
	18.3	706	150	153.33	7130	1.1	HKM1103 90B5/B14	90S2
	22	596	125	129.48	6740	1.3
	27	477	100	103.64	6260	1.4
	37	348	75	75.55	5630	1.5
	44	296	60	64.18	5330	2.5

HKM.. PERFORMANCE PARAMETER
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal i	Actual i	F_r2 [N]	f_s	Gear Unit Model	Motor Model
1.5	55	237	50	51.37	4950	2.7	HKM1103 90B5/B14	90S2
	22	591	60	64.18	6720	1.3	HKM1103 90B5/B14	90L4
	27	473	50	51.37	6240	1.4	HKM1103 90B5/B14	90L4
	24	557	60	59.22	6540	1.3	HKM1102 HKM110B	90L4
	29	460	50	48.86	6130	1.6
	34	388	40	41.26	5800	1.9
	46	289	30	30.67	5250	2.6
	54	244	25	25.90	4960	3.1
	68	195	20	20.73	4610	3.3
	93	142	15	15.11	4150	3.7
	15.2	867	60	59.22	7580	0.86	HKM1102 100B5/B14	100L6
	18.4	715	50	48.86	7110	1.0
	22	604	40	41.26	6720	1.2
	29	449	30	30.67	6090	1.7
	35	379	25	25.90	5750	2.0
	43	304	20	20.73	5340	2.1
	60	221	15	15.11	4810	2.4
	70	188	12.5	12.84	4550	4.0
	88	150	10	10.27	4220	4.3
	120	110	7.5	7.49	3800	4.7
2.2	46	418	30	30.24	3720	0.84	HKM0752 100B5/B14	100L1-4
	56	348	25	25.19	3500	0.86
	71	274	20	19.84	3230	0.88
	93	208	15	15.09	2950	0.96
	112	172	12.5	12.49	2770	1.7
	142	136	10	9.84	2550	1.8
	187	103	7.5	7.48	2330	1.9
	72	268	12.5	12.49	3210	1.1	HKM0752 112B5/B14	112M6
	91	211	10	9.84	2960	1.1
	120	161	7.5	7.48	2700	1.2
	45	422	60	62.43	4760	1.1	HKM0903 90B5/B14	90L2
	57	332	50	49.18	2390	1.1	HKM0903 90B5/B14	90L2
	35	554	40	40.13	5170	0.87	HKM0902 100B5/B14	100L1-4
	46	418	30	30.24	4710	1.2
	56	348	25	25.19	4430	1.4
	71	274	20	19.84	4090	1.4
	93	208	15	15.09	3730	1.4
	112	172	12.5	12.49	3510	2.8
	142	136	10	9.84	3240	2.8
	187	103	7.5	7.48	2950	2.9

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
2.2	36	541	25	25.19	5130	0.9	HKM0902 112B5/B14	112M6
	45	426	20	19.84	4740	0.9
	60	324	15	15.09	4330	0.93
	72	268	12.5	12.49	4060	1.8
	91	211	10	9.84	3750	1.8
	120	161	7.5	7.48	3420	1.9
	22	874	125	129.48	6740	0.86	HKM1103 90B5/B14	90L2
	27	700	100	103.64	6260	0.93
	37	510	75	75.55	5630	1.0
	44	433	60	64.18	5330	1.7
	55	347	50	51.37	4950	1.9
	24	818	60	59.22	6540	0.92	HKM1102 100B5/B14	100L1-4
	29	675	50	48.86	6130	1.1
	34	570	40	41.26	5800	1.3
	46	423	30	30.67	5250	1.8
	54	358	25	25.90	4960	2.1
	68	286	20	20.73	4610	2.3
	93	209	15	15.11	4150	2.5
	109	177	12.5	12.84	3930	4.2
	136	142	10	10.27	3650	4.6
	187	103	7.5	7.49	3280	5.0
	29	659	30	30.67	6090	1.1	HKM1102 112B5/B14	112M6
	35	556	25	25.90	5750	1.3
	43	445	20	20.73	5340	1.5
	60	325	15	15.11	4810	1.6
	70	276	12.5	12.84	4550	2.7
	88	221	10	10.27	4220	2.9
	120	161	7.5	7.49	3800	3.2
3.0	112	235	12.5	12.49	2770	1.3	HKM0752 100B5/B14	100L2-4
	142	185	10	9.84	2550	1.3
	187	141	7.5	7.48	2330	1.4
	46	569	30	30.24	4710	0.9	HKM0902 100B5/B14	100L2-4
	56	474	25	25.19	4430	1.0
	71	374	20	19.84	4090	1.0
	93	284	15	15.09	3730	1.1
	112	235	12.5	12.49	3510	2.0
	142	185	10	9.84	3240	2.1
	187	141	7.5	7.48	2950	2.1
	44	591	60	64.18	5330	1.3	HKM1103 100B5/B14	100L2
	55	473	50	51.37	4950	1.4	HKM1103 100B5/B14	100L2

HKM.. PERFORMANCE PARAMETERS
P_1n [kW]	n₂ [r/min]	M_2max [Nm]	Nominal	Actual	F_r2 [N]	f_s	Gear Unit Model	Motor Model
3.0	34	777	40	41.26	5800	0.97	HKM1102 100B5/B14	100L2-4
	46	577	30	30.67	5250	1.3
	54	488	25	25.90	4960	1.5
	68	390	20	20.73	4610	1.7
	93	284	15	15.11	4150	1.8
	109	242	12.5	12.84	3930	3.1
	136	193	10	10.27	3650	3.4
	187	141	7.5	7.49	3280	3.7
	35	759	25	25.90	5750	1.0	HKM1102 132B5	132S6
	43	607	20	20.73	5340	1.1
	60	443	15	15.11	4810	1.2
	70	376	12.5	12.84	4550	2.0
	88	301	10	10.27	4220	2.2
	120	219	7.5	7.49	3800	2.4
4.0	112	314	12.5	12.49	2770	0.96	HKM0752 112B5/B14	112M4
	142	247	10	9.84	2550	1.0
	187	188	7.5	7.48	2330	1.1
	112	314	12.5	12.49	3510	1.5	HKM0902 112B5/B14	112M4
	142	247	10	9.84	3240	1.5
	187	188	7.5	7.48	2950	1.6
	46	770	30	30.67	5250	1.0	HKM1102 112B5/B14	112M4
	54	650	25	25.90	4960	1.2
	68	520	20	20.73	4610	1.2
	93	379	15	15.11	4150	1.4
	109	322	12.5	12.84	3930	2.3
	136	258	10	10.27	3650	2.5
	187	188	7.5	7.49	3280	2.8
5.5	68	716	20	20.73	4610	0.9	HKM1102 132B5	132S4
	93	522	15	15.11	4150	1.0
	109	443	12.5	12.84	3930	1.7
	136	354	10	10.27	3650	1.8
	187	259	7.5	7.49	3280	2.0

📥 Download PDF Specs

📥 Download STEP Specs

■ Features For Hypoid Gearbox

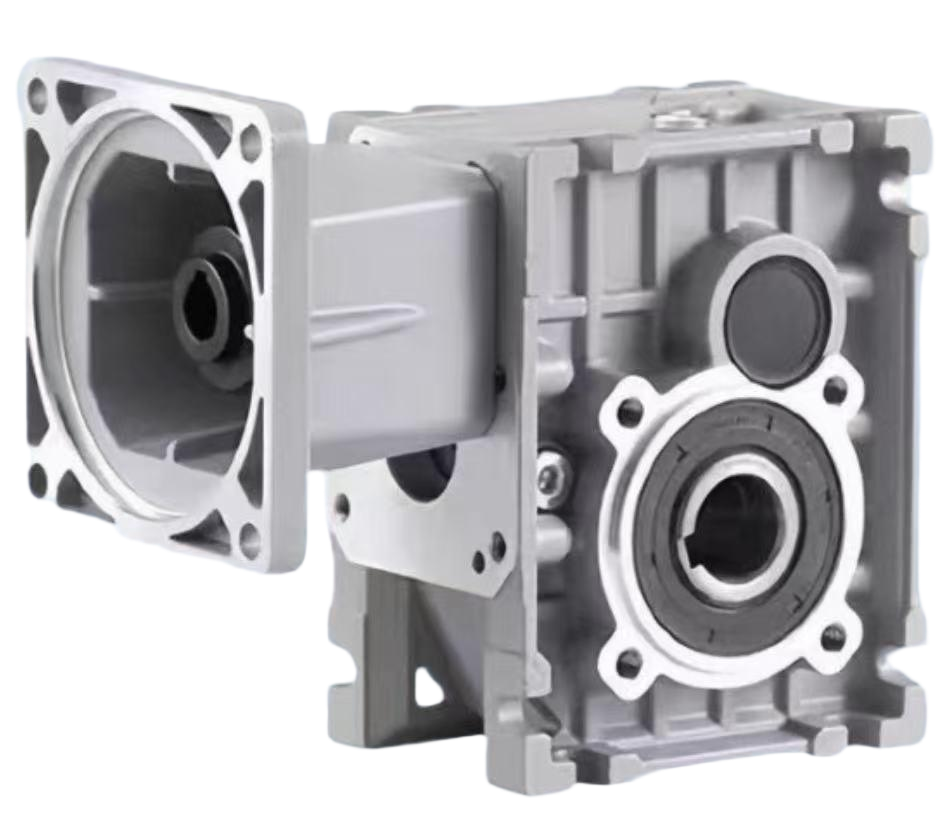

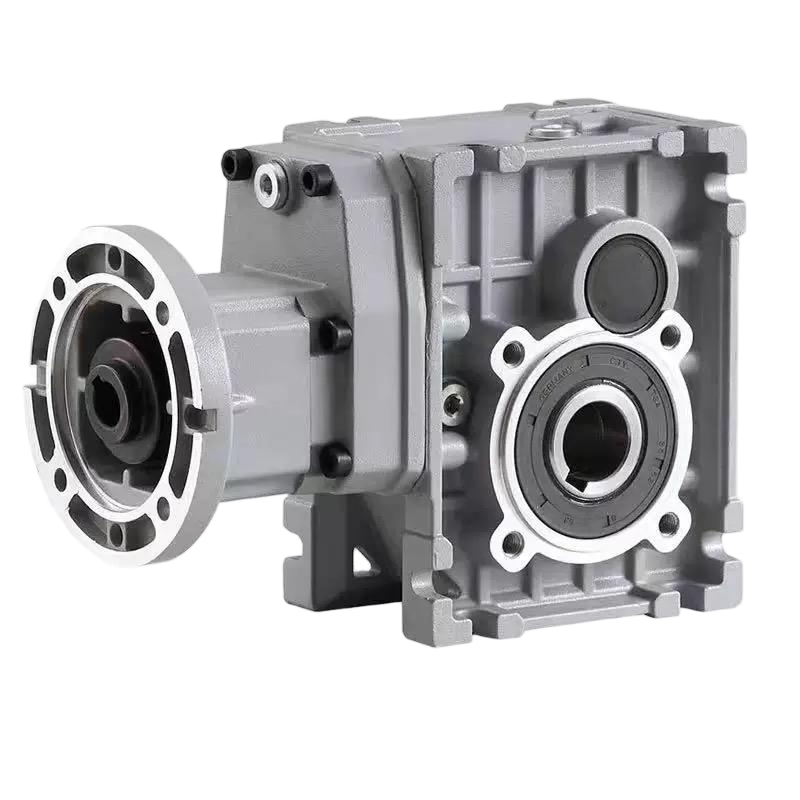

This high-efficiency Hypoid Gearbox engineered with spiral hypoid bevel gearing provides a superior, energy-saving alternative to conventional worm gear units. By delivering up to 92%–95% efficiency across wide reduction ratios, it significantly minimizes power loss and thermal buildup during continuous operation. Designed with standardized NMRV-interchangeable mounting geometry, an IEC motor flange, and a keyway hollow output shaft, it allows seamless, hassle-free replacement on existing machinery without mechanical modifications. Encased in a rugged, lightweight die-cast aluminum alloy housing with flexible multi-face mounting options, this gearbox delivers reliable torque, quiet performance, and exceptional durability for conveyor systems, packaging automation, textile machinery, and material handling equipment.

Products Catalog

Inquire About This Product

Direct Contact

■ Features For Hypoid Gearbox
