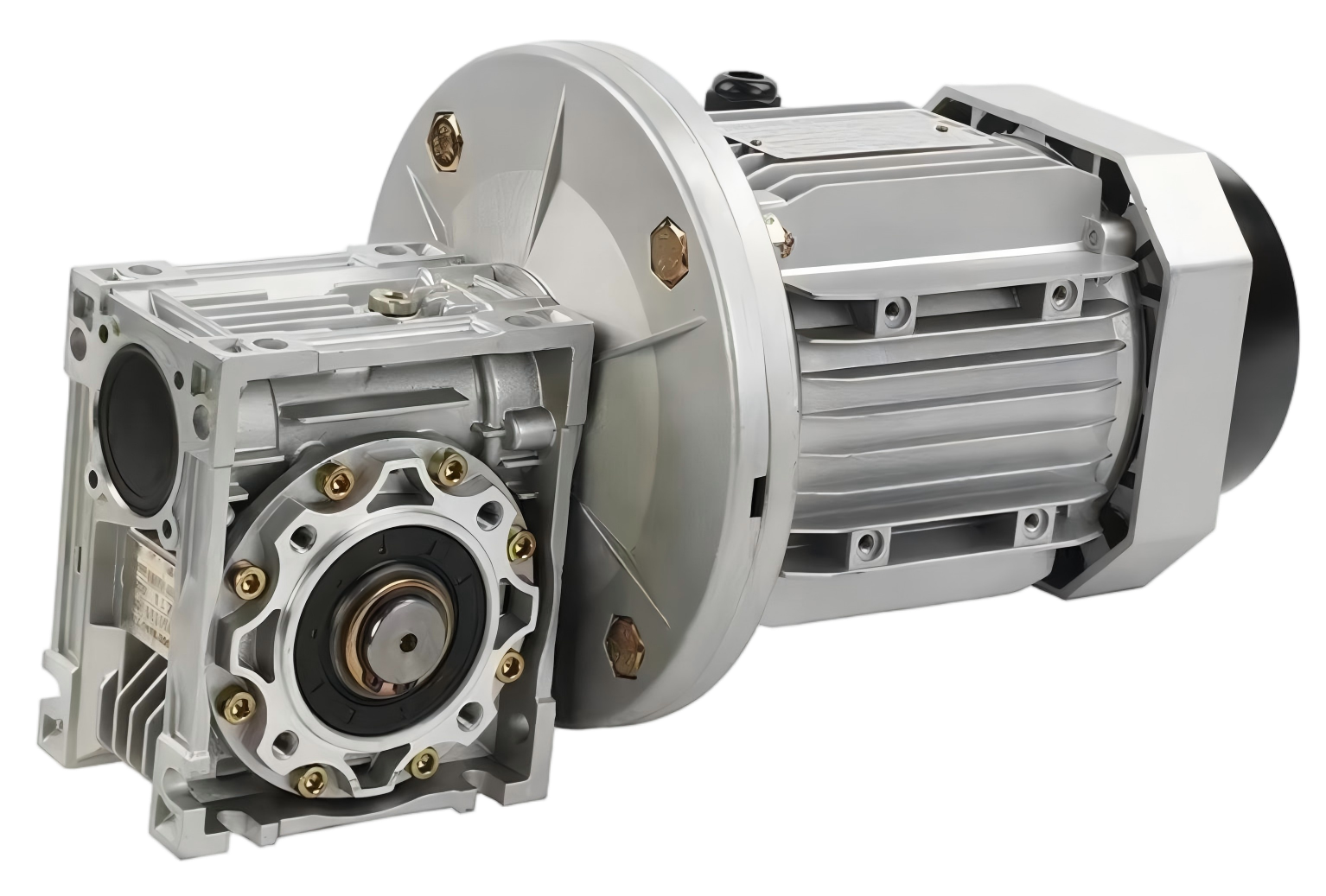

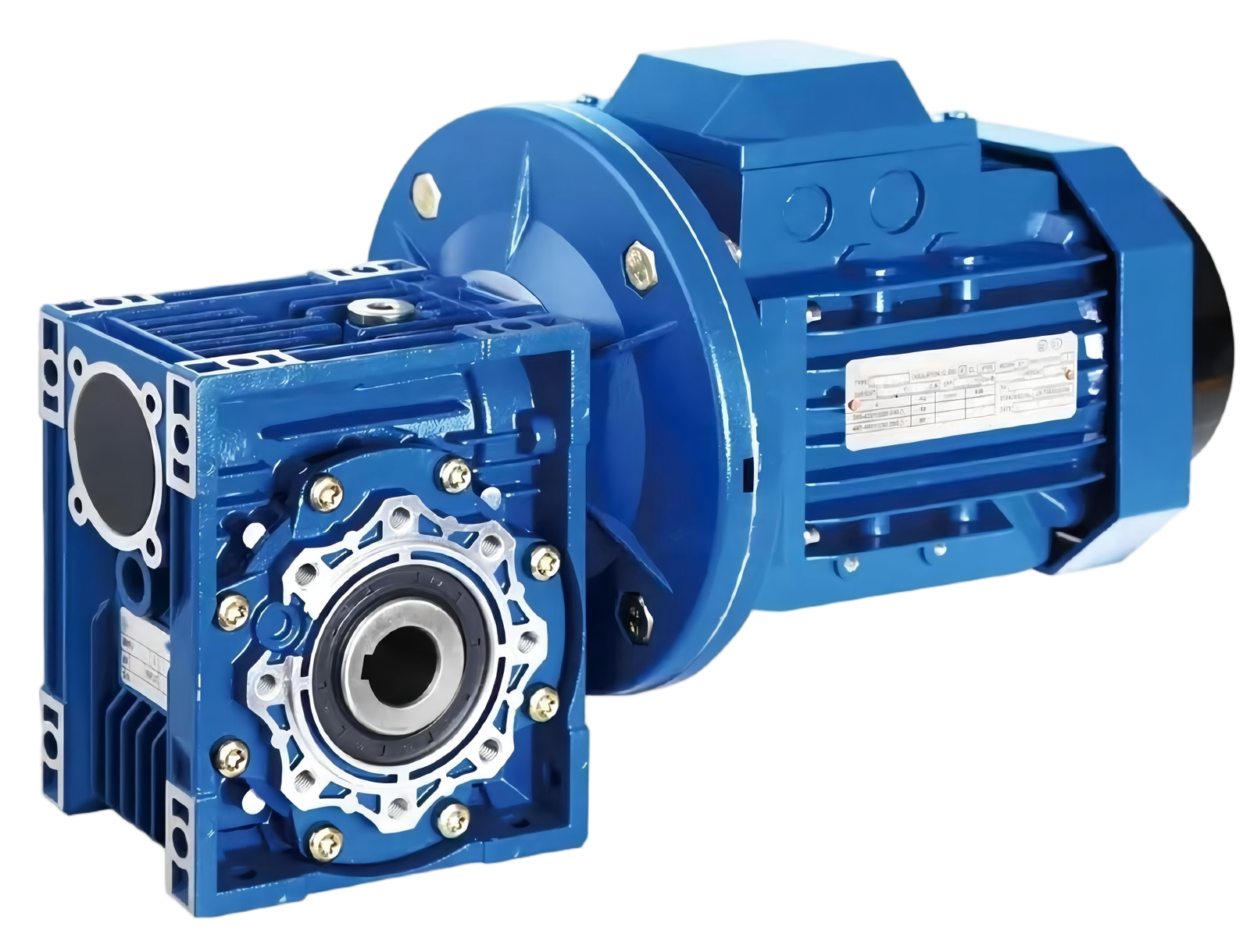

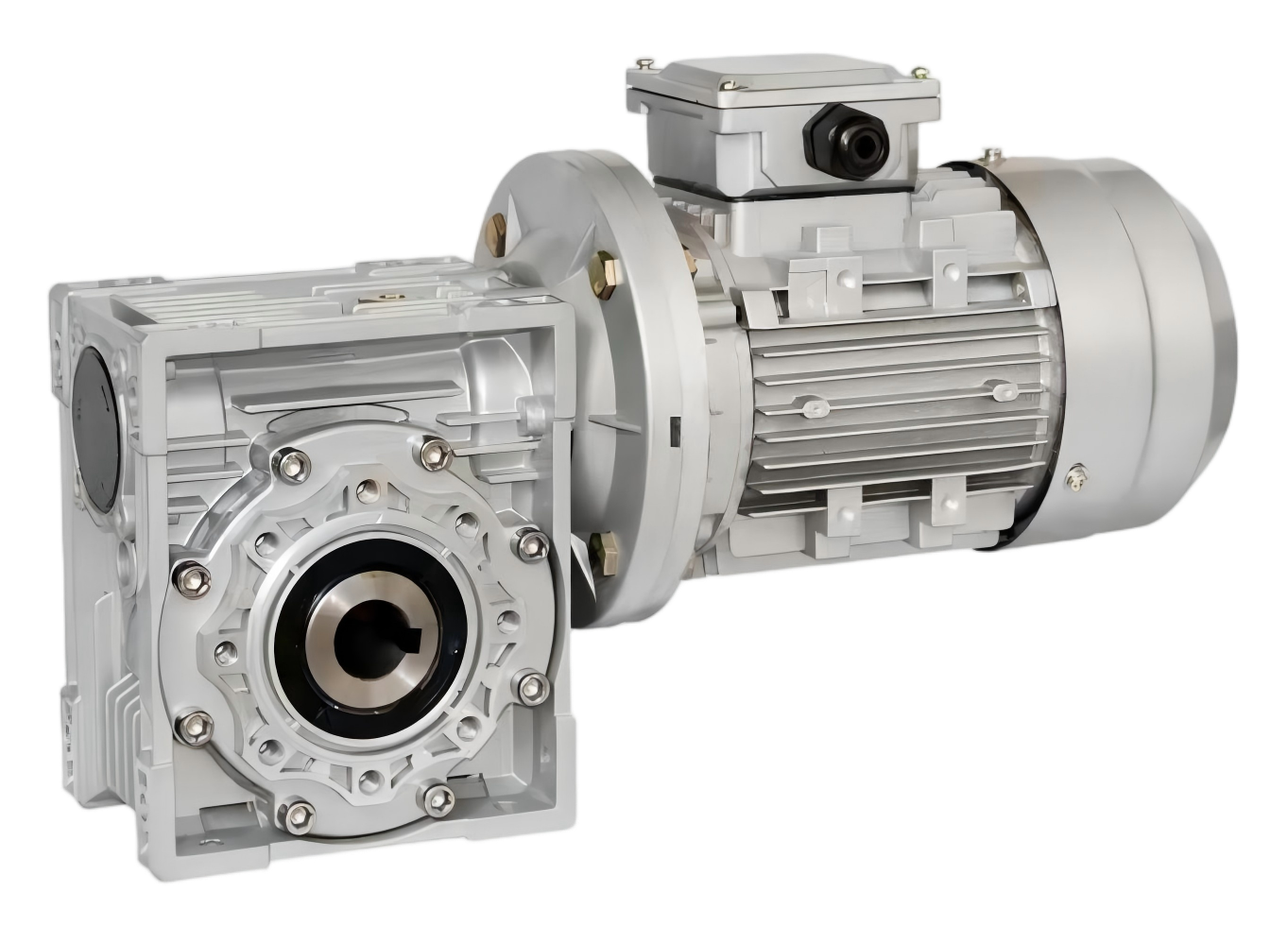

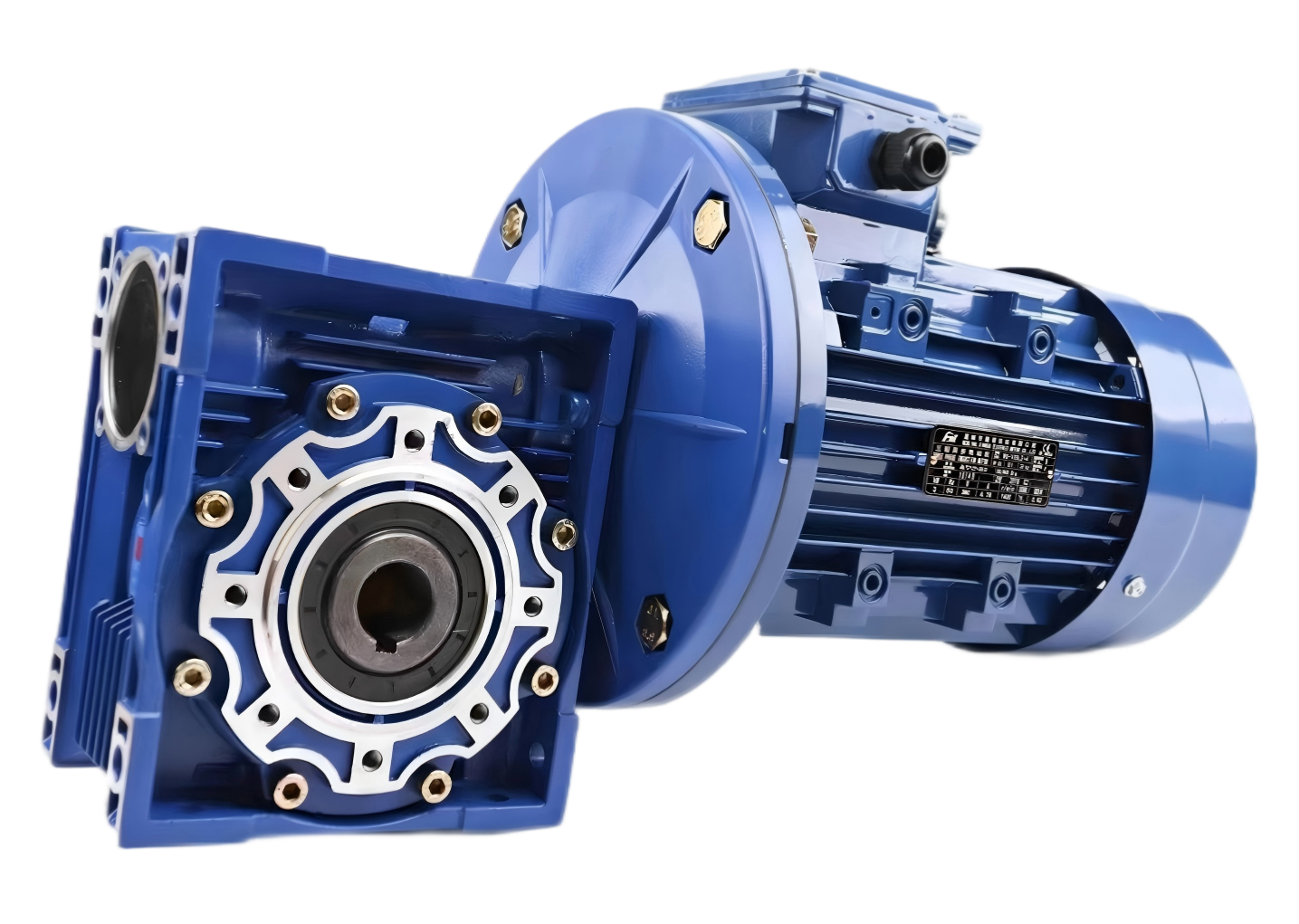

NMRV-Motor

· Made of high-quality aluminum alloy (025-090), light weight and non-rusting;iron case 110-150.

· Smooth in running and low in noise, can work long time in dreadful conditions.

· Large output torque;High in radiating efficiency.

· Good-looking in appearance,durable in service life and small in volume; Suitable for omnibearing installation.

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.06	280	5	1.8	439	6.2	NMRV025	56B14	5614
	186.7	7.5	2.6	503	4.2
	140	10	3.4	553	3.5
	93.3	15	4.9	633	2.5
	70	20	6.2	697	1.9
	46.7	30	8.3	798	1.6
	35	40	10	878	1.2
	28	50	12	946	0.9
	23.3	60	14	1006	0.7
	186.7	7.5	2.6	683	7.0	NMRV030	56B5/B14	5614
	140	10	3.4	752	5.4
	93.3	15	4.7	861	3.9
	70	20	6	948	3.1
	56	25	7	1021	3.1
	46.7	30	8	1085	2.5
	35	40	9.7	1194	1.9
	28	50	11	1286	1.5
	23.3	60	13	1367	1.3
	17.5	80	14	1504	0.9
0.09	373.3	7.5	2.0	399	3.9	NMRV025	56B14	5612
	280	10	2.6	439	3.4
	186.7	15	3.8	503	2.4
	140	20	4.9	553	1.8
	93.3	30	6.7	633	1.3
	70	40	8.5	697	1.1
	56	50	10	751	0.9
	186.7	7.5	3.9	503	2.8	NMRV025	56B14	5624
	140	10	5.1	553	2.4
	93.3	15	7.3	633	1.6
	70	20	9.3	697	1.3
	46.7	30	13	798	1.0
	35	40	16	878	0.8
	373.3	7.5	2.0	542	6.5	NMRV030	56B5/B14	5612
	280	10	2.6	597	5.0
	186.7	15	3.7	683	3.5
	140	20	4.7	752	2.5
	112	25	5.5	810	2.9
	93.3	30	6.4	861	2.3
	70	40	8.0	948	1.8
	56	50	9.4	1021	1.4
	46.7	60	10	1085	1.1
	35	80	13	1194	0.9

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.09	186.7	7.5	3.9	683	4.7	NMRV030	56B5/B14	5624
	140	10	5.0	752	3.6
	93.3	15	7.0	861	2.6
	70	20	8.8	948	2.0
	56	25	10	1021	2.1
	46.7	30	12	1085	1.7
	35	40	14	1194	1.2
	28	50	17	1286	1.0
	23.3	60	18	1367	0.9
	28	50	19	2475	2.1	NMRV040	56B5	5624
	23.3	60	21	2630	1.7
	17.5	80	25	2895	1.3
	14	100	29	3118	1.0
0.12	373.3	7.5	2.7	399	3.0	NMRV025	56B14	5622
	280	10	3.5	439	2.6
	186.7	15	5.1	503	1.8
	140	20	6.5	553	1.4
	93.3	30	9.0	633	1.0
	70	40	11	697	0.8
	186.7	7.5	5.2	683	3.5	NMRV030	63B5/B14	6314
	140	10	6.6	752	2.7
	93.3	15	9.3	861	1.9
	70	20	12	948	1.5
	56	25	14	1021	1.6
	46.7	30	16	1085	1.3
	35	40	19	1194	0.9
	28	50	22	1286	0.8
	46.7	30	17	2087	2.7	NMRV040	63B5/B14	6314
	35	40	21	2298	1.9
	28	50	25	2475	1.6
	23.3	60	28	2630	1.3
	17.5	80	33	2895	1.0
	14	100	38	3118	0.8
	23.3	60	29	3610	2.3	NMRV050	63B5	6314
	17.5	80	35	3973	1.9
	14	100	39	4280	1.4
0.18	373.3	7.5	4.0	542	3.2	NMRV030	63B5/B14	6312
	280	10	5.2	597	2.5
	186.7	15	7.4	683	1.8
	140	20	9.5	752	1.3
	112	25	11	810	1.4
	93.3	30	13	861	1.2
	70	40	16	948	0.9
	186.7	7.5	7.7	683	2.3	NMRV030	63B5/B14	6324
	140	10	10	752	1.8
	93.3	15	14	861	1.3
	70	20	18	948	1.0
	56	25	20	1021	1.0
	46.7	30	24	1085	0.8

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.18	93.3	30	14	1657	2.5	NMRV040	63B5/B14	6312
	70	40	17	1824	1.8
	56	50	21	1964	1.4
	70	20	19	1824	2.1	NMRV040	63B5/B14	6324
	56	25	23	1964	1.7
	46.7	30	25	2087	1.8
	35	40	32	2298	1.3
	28	50	37	2475	1.0
	23.3	60	42	2630	0.9
	45	20	28	2113	1.6	NMRV040	71B5/B14	7116
	36	25	34	2276	1.3
	30	30	38	2419	1.3
	22.5	40	47	2662	1.0
	46.7	60	24	2865	2.1	NMRV050	63B5	6312
	35	80	30	3153	1.5
	28	100	34	3397	1.2
	35	40	33	3153	2.3	NMRV050	63B5	6324
	28	50	39	3397	1.9
	23.3	60	43	3610	1.6
	17.5	80	52	3973	1.2
	14	100	59	4280	0.9
	18	50	56	3936	1.4	NMRV050	71B5/B14	7116
	15	60	63	4183	1.1
	11.3	80	75	4604	0.9
	15	60	66	5467	2.1	NMRV063	71B5/B14	7116
	11.3	80	79	6018	1.6
	9	100	90	6270	1.4
0.25	373.3	7.5	5.6	542	2.3	NMRV030	63B5/B14	6322
	280	10	7.2	597	1.8
	186.7	15	10	683	1.3
	140	20	13	752	0.9
	112	25	15	810	1.0
	93.3	30	18	861	0.8
	186.7	7.5	11	1315	3.6	NMRV040	71B5/B14	7114
	140	10	14	1447	2.8
	93.3	15	20	1657	2.0
	70	20	26	1824	1.5
	56	25	32	1964	1.2
	46.7	30	35	2087	1.3
	35	40	44	2298	0.9
	120	7.5	17	1524	2.6	NMRV040	71B5/B14	7126
	90	10	22	1677	2.0
	60	15	31	1920	1.4
	45	20	39	2113	1.1
	36	25	48	2276	0.9
	30	30	53	2419	0.9

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.25	35	80	42	3153	1.1	NMRV050	63B5/B14	6322
	28	100	48	3397	0.8	NMRV050	63B5/B14	6322
	70	20	27	2503	2.7	NMRV050	71B5/B14	7114
	56	25	32	2696	2.2
	46.7	30	36	2865	2.3
	35	40	46	3153	1.7
	28	50	54	3397	1.4
	23.3	60	60	3610	1.1
	17.5	80	72	3973	0.9
	45	20	40	2900	1.9	NMRV050	71B5/B14	7126
	36	25	48	3124	1.5
	30	30	54	3320	1.7
	22.5	40	67	3654	1.2
	18	50	78	3936	1.0
	15	60	88	4183	0.8
	28	50	55	4440	2.4	NMRV063	71B5/B14	7114
	23.3	60	63	4719	2.0
	17.5	80	76	5193	1.6
	14	100	87	5595	1.4
	18	50	81	5145	1.8	NMRV063	71B5/B14	7126
	15	60	92	5467	1.5
	11.3	80	110	6018	1.2
	9	100	125	6270	1.0
	17.5	80	80	6130	2.4	NMRV075	71B5	7114
	14	100	94	6603	1.9	NMRV075	71B5	7114
	11.3	80	117	7103	1.7	NMRV075	71B5	7126
	9	100	133	7380	1.4	NMRV075	71B5	7126
0.37	373.3	7.5	8.3	1044	3.4	NMRV040	71B5/B14	7112
	280	10	11	1149	2.6
	186.7	15	16	1315	1.9
	140	20	20	1447	1.4
	112	25	25	1559	1.1
	186.7	7.5	16	1315	2.5	NMRV040	71B5/B14	7124
	140	10	21	1447	1.9
	93.3	15	30	1657	1.3
	70	20	39	1824	1.0
	56	25	47	1964	0.8
	46.7	30	52	2087	0.9
	112	25	25	2140	2.0	NMRV050	71B5/B14	7112
	93.3	30	29	2274	2.2
	70	40	37	2503	1.6
	56	50	44	2696	1.2
	46.7	60	50	2865	1.0
	35	80	62	3153	0.7
	140	10	21	1987	3.4	NMRV050	71B5/B14	7124
	93.3	15	31	2274	2.4
	70	20	39	2503	1.9

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.37	56	25	47	2696	1.5	NMRV050	71B5/B14	7124
	46.7	30	54	2865	1.6
	35	40	68	3153	1.1
	28	50	80	3397	0.9
	23.3	60	89	3610	0.8
	120	7.5	25	2091	3.4	NMRV050	80B5/B14	8016
	90	10	33	2302	2.6
	60	15	47	2635	1.8
	45	20	59	2900	1.3
	36	25	72	3124	1.0
	30	30	80	3320	1.1
	35	40	70	4122	2.1	NMRV063	71B5/B14	7124
	28	50	82	4440	1.6
	23.3	60	94	4719	1.4
	17.5	80	113	5193	1.1
	14	100	129	5595	0.9
	45	20	60	3791	2.4	NMRV063	80B5/B14	8016
	36	25	73	4084	1.9
	30	30	82	4339	2.1
	22.5	40	102	4776	1.6
	18	50	120	5145	1.2
	15	60	137	5467	1.0
	23.3	60	97	5569	2.1	NMRV075	71B5	7124
	17.5	80	119	6130	1.6
	14	100	139	6603	1.3
	18	50	124	6073	1.8	NMRV075	80B5/B14	8016
	15	60	141	6453	1.5
	11.3	80	173	7103	1.2
	9	100	196	7380	1.0
	11.3	80	185	7859	1.7	NMRV090	80B5/B14	8016
	9	100	212	8180	1.3	NMRV090	80B5/B14	8016
0.55	373.3	7.5	12	1044	2.3	NMRV040	71B5/B14	7122
	280	10	16	1149	1.8
	186.7	15	24	1315	1.3
	140	20	30	1447	1.0
	112	25	37	1559	0.8
	140	20	31	1987	1.7	NMRV050	71B5/B14	7122
	112	25	38	2140	1.4
	93.3	30	43	2274	1.5
	70	40	55	2503	1.1
	56	50	65	2696	0.8
	46.7	60	74	2865	0.7
	186.7	7.5	24	1805	2.9	NMRV050	80B5/B14	8014
	140	10	32	1987	2.3
	93.3	15	46	2274	1.6
	70	20	59	2503	1.2
	56	25	70	2696	1.0
	46.7	30	80	2865	1.1

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.55	120	7.5	37	2091	2.3	NMRV050	80B5/B14	8026
	90	10	48	2302	1.7
	60	15	69	2635	1.2
	45	20	88	2900	0.9
	70	40	56	3272	1.9	NMRV063	71B5/B14	7122
	56	50	68	3524	1.5
	46.7	60	78	3745	1.2
	35	80	96	4122	0.9
	28	100	111	4440	0.7
	70	20	60	3272	2.2	NMRV063	80B5/B14	8014
	56	25	72	3524	1.8
	46.7	30	82	3745	1.9
	35	40	104	4122	1.4
	28	50	122	4440	1.1
	23.3	60	140	4719	0.9
	60	15	70	3444	2.2	NMRV063	80B5/B14	8026
	45	20	90	3791	1.6
	36	25	108	4084	1.3
	30	30	123	4339	1.4
	22.5	40	152	4776	1.1
	35	80	99	4865	1.3	NMRV075	71B5	7122
	28	100	116	5241	1.0	NMRV075	71B5	7122
	35	40	108	4865	2.0	NMRV075	80B5/B14	8014
	28	50	128	5241	1.6
	23.3	60	144	5569	1.4
	17.5	80	177	6130	1.1
	14	100	206	6603	0.9
	30	30	124	5122	2.1	NMRV075	80B5/B14	8026
	22.5	40	156	5637	1.5
	18	50	184	6073	1.2
	15	60	210	6453	1.0
	17.5	80	189	6783	1.5	NMRV090	80B5/B14	8014
	14	100	221	7306	1.2	NMRV090	80B5/B14	8014
	18	50	196	6719	2.0	NMRV090	80B5/B14	8026
	15	60	224	7140	1.6
	11.3	80	275	7859	1.1
	9	100	315	8180	0.9
	17.5	80	201	8571	2.6	NMRV110	80B5	8014
	14	100	236	9232	2.0	NMRV110	80B5	8014
	11.3	80	294	9931	1.9	NMRV110	80B5	8026
	9	100	344	10320	1.5	NMRV110	80B5	8026

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.75	373.3	7.5	17	1433	3.0	NMRV050	80B5/B14	8012
	280	10	22	1577	2.4
	186.7	15	31	1805	1.7
	140	20	41	1987	1.3
	112	25	49	2140	1.0
	93.3	30	56	2274	1.1
	280	5	23	1577	2.7	NMRV050	80B5/B14	8024
	186.7	7.5	33	1805	2.1
	140	10	43	1987	1.7
	93.3	15	62	2274	1.2
	70	20	80	2503	0.9
	140	20	43	2597	2.3	NMRV063	80B5/B14	8012
	112	25	52	2797	1.8
	93.3	30	60	2973	2.0
	70	40	77	3272	1.4
	56	50	92	3524	1.1
	46.7	60	106	3745	0.9
	93.3	15	63	2973	2.2	NMRV063	80B5/B14	8024
	70	20	82	3272	1.6
	56	25	98	3524	1.3
	46.7	30	112	3745	1.4
	35	40	141	4122	1.0
	120	7.5	51	2734	2.9	NMRV063	90B5/B14	90S6
	90	10	67	3009	2.3
	60	15	96	3444	1.6
	45	20	123	3791	1.2
	36	25	147	4084	0.9
	30	30	167	4339	1.0
	46.7	60	107	4421	1.3	NMRV075	80B5/B14	8012
	35	80	135	4865	1.0
	28	100	159	5241	0.8
	56	25	101	4160	2.0	NMRV075	80B5/B14	8024
	46.7	30	117	4421	2.0
	35	40	147	4865	1.5
	28	50	174	5241	1.2
	23.3	60	196	5569	1.0
	60	15	97	4065	2.4	NMRV075	90B5/B14	90S6
	45	20	124	4474	1.9
	36	25	149	4820	1.4
	30	30	170	5122	1.5
	22.5	40	213	5637	1.1
	35	80	143	5383	1.6	NMRV090	80B5/B14	8012
	28	100	169	5799	1.2	NMRV090	80B5/B14	8012
	28	50	182	5799	1.9	NMRV090	80B5/B14	8024
	23.3	60	209	6163	1.5
	17.5	80	258	6783	1.1
	14	100	302	7306	0.9

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
0.75	30	30	179	5667	2.6	NMRV090	90B5/B14	90S6
	22.5	40	226	6238	1.8
	18	50	267	6719	1.5
	15	60	306	7140	1.1
	17.5	80	274	8571	1.9	NMRV110	80B5	8024
	14	100	322	9232	1.5	NMRV110	80B5	8024
	15	60	325	9023	2.1	NMRV110	90B5/B14	90S6
	11.3	80	401	9931	1.4
	9	100	470	10320	1.1
	11.3	80	401	12989	2.1	NMRV130	90B5	90S6
	9	100	470	13500	1.7	NMRV130	90B5	90S6
1.1	373.3	7.5	25	1433	2.1	NMRV050	80B5/B14	8022
	280	10	33	1577	1.7
	186.7	15	48	1805	1.2
	140	20	62	1987	0.9
	186.7	15	46	2359	2.1	NMRV063	80B5/B14	8022
	140	20	60	2597	1.6
	112	25	72	2797	1.2
	93.3	30	82	2973	1.4
	70	40	104	3272	1.0
	120	7.5	75	2734	2.0	NMRV063	90B5/B14	90L6
	90	10	98	3009	1.6
	60	15	140	3444	1.1
	45	20	180	3791	0.8
	186.7	7.5	50	2359	2.6	NMRV063	90B5/B14	90S4
	140	10	65	2597	2.0
	93.3	15	92	2973	1.5
	70	20	120	3272	1.1
	56	25	144	3524	0.9
	46.7	30	164	3745	1.0
	112	25	77	3302	2.0	NMRV075	80B5/B14	8022
	93.3	30	89	3509	1.9
	70	40	114	3862	1.4
	56	50	137	4160	1.1
	46.7	60	158	4421	0.9
	90	10	98	3551	2.3	NMRV075	90B5/B14	90L6
	60	15	142	4065	1.7
	45	20	182	4474	1.3
	36	25	219	4820	1.0
	30	30	249	5122	1.0

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
1.1	93.3	15	95	3509	2.1	NMRV075	90B5/B14	90S4
	70	20	122	3862	1.7
	56	25	148	4160	1.3
	46.7	30	171	4421	1.3
	35	40	216	4865	1.0
	35	80	210	5383	1.1	NMRV090	80B5/B14	8022
	28	100	248	5799	0.8	NMRV090	80B5/B14	8022
	36	25	228	5333	1.6	NMRV090	90B5/B14	90L6
	30	30	263	5667	1.8
	22.5	40	331	6238	1.2
	18	50	391	6719	1.0
	15	60	448	7140	0.8
	35	40	222	5383	1.6	NMRV090	90B5/B14	90S4
	28	50	266	5799	1.3
	23.3	60	306	6163	1.0
	22.5	40	345	7882	2.3	NMRV110	90B5/B14	90L6
	18	50	414	8491	1.8
	15	60	476	9023	1.4
	11.3	80	588	9931	1.0
	28	50	278	7328	2.4	NMRV110	90B5/B14	90S4
	23.3	60	324	7787	1.9
	17.5	80	402	8571	1.3
	14	100	473	9232	1.0
	11.3	80	588	12989	1.5	NMRV130	90B5	90L6
	9	100	689	13500	1.1	NMRV130	90B5	90L6
	17.5	80	408	11210	2.1	NMRV130	90B5	90S4
	14	100	480	12076	1.5	NMRV130	90B5	90S4
1.5	373.3	7.5	34	1433	1.5	NMRV050	80B5/B14	8032
	280	10	45	1577	1.2
	186.7	15	65	1805	0.9
	186.7	7.5	68	2359	1.9	NMRV063	90B5/B14	90L4
	140	10	88	2597	1.5
	93.3	15	126	2973	1.1
	70	20	164	3272	0.8
	373.3	7.5	35	1873	2.7	NMRV063	90B5/B14	90S2
	280	10	45	2061	2.2	NMRV063	90B5/B14	90S2
	186.7	15	66	2359	1.6	NMRV063	90B5/B14	90S2
	140	20	86	2597	1.2
	112	25	105	2797	0.9
	93.3	30	120	2973	1.0
	120	7.5	103	3227	2.1	NMRV075	100B5/B14	100L6
	90	10	134	3551	1.7
	60	15	193	4065	1.2
	56	50	187	4160	1.3	NMRV075	90B5/B14	90S2
	46.7	60	215	4421	1.1	NMRV075	90B5/B14	90S2
	140	10	89	3065	2.2	NMRV075	90B5/B14	90L4
	93.3	15	129	3509	1.6
	70	20	166	3862	1.3
	56	25	202	4160	1.0

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
2.2	112	25	154	3302	1.0	NMRV075	100B5/B14	90L2
	93.3	30	178	3509	1.0	NMRV075	100B5/B14	90L2
	186.7	7.5	100	3081	2.9	NMRV090	100B5/B14	100L1-4
	140	10	132	3391	2.3
	93.3	15	191	3882	1.9
	70	20	249	4273	1.4
	56	25	304	4603	1.1
	46.7	30	351	4891	1.2
	120	7.5	154	3570	2.2	NMRV090	112B5/B14	112M6
	90	10	201	3929	1.8
	60	15	291	4498	1.4
	45	20	378	4951	1.0
	140	20	129	3391	2.0	NMRV090	90B5/B14	90L2
	112	25	159	3653	1.6
	93.3	30	185	3882	1.7
	70	40	237	4273	1.2
	56	50	289	4603	0.9
	70	20	255	5399	2.5	NMRV110	100B5	100L1-4
	56	25	311	5816	2.2
	46.7	30	356	6181	2.0
	35	40	462	6803	1.5
	28	50	555	7328	1.2
	23.3	60	648	7787	1.0
	90	10	203	4965	3.5	NMRV110	112B5	112M6
	60	15	294	5684	2.6
	45	20	388	6256	1.9
	36	25	473	6739	1.6
	30	30	532	7161	1.6
	112	25	161	4616	3.1	NMRV110	90B5/B14	90L2
	93.3	30	187	4905	3.0
	70	40	243	5399	2.2
	56	50	296	5816	1.7
	46.7	60	347	6181	1.4
	35	40	468	8897	2.2	NMRV130	100B5	100L1-4
	28	50	563	9584	1.7
	23.3	60	657	10185	1.4
	17.5	80	816	11210	1.0
	36	25	473	8814	2.2	NMRV130	112B5	112M6
	30	30	539	9366	2.2
	22.5	40	691	10309	1.6
	18	50	829	11105	1.3
	15	60	966	11801	1.0
	35	80	444	8897	1.3	NMRV130	90B5	90L2
	28	100	525	9584	1.0	NMRV130	90B5	90L2
	28	50	570	13103	2.5	NMRV150	100B5	100L1-4
	23.3	60	657	13924	1.9
	17.5	80	816	15325	1.4
	14	100	960	16508	1.0

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
3.0	373.3	7.5	68	2210	1.9	NMRV075	100B5/B14	100L2
	280	10	90	2433	1.6	NMRV075	100B5/B14	100L2
	186.7	7.5	135	2785	1.4	NMRV075	100B5/B14	100L2-4
	140	10	178	3065	1.1
	93.3	15	258	3509	0.8
	373.3	7.5	70	2446	3.0	NMRV090	100B5/B14	100L2
	280	10	92	2692	2.6	NMRV090	100B5/B14	100L2
	186.7	7.5	137	3081	2.1	NMRV090	100B5/B14	100L2-4
	140	10	180	3391	1.7
	93.3	15	261	3882	1.4
	70	20	340	4273	1.0
	56	25	414	4603	0.8
	46.7	30	479	4891	0.9
	93.3	15	264	4905	2.5	NMRV110	100B5	100L2-4
	70	20	348	5399	1.9
	56	25	425	5816	1.6
	46.7	30	485	6181	1.5
	35	40	630	6803	1.1
	28	50	757	7328	0.9
	120	7.5	210	4511	3.1	NMRV110	132B5	132S6
	90	10	277	4965	2.6
	60	15	401	5684	1.9
	45	20	528	6256	1.4
	56	25	430	7607	2.2	NMRV130	100B5	100L2-4
	46.7	30	491	8084	2.1
	35	40	638	8897	1.6
	28	50	767	9584	1.3
	23.3	60	896	10185	1.0
	17.5	80	1113	11210	0.8
	90	10	277	6494	3.5	NMRV130	132B5	132S6
	60	15	406	7434	2.6
	45	20	528	8182	2.0
	36	25	645	8814	1.6
	30	30	735	9366	1.6
	22.5	40	942	10309	1.2
	28	50	778	13103	1.8	NMRV150	100B5	100L2-4
	23.3	60	896	13924	1.4
	17.5	80	1113	15325	1.0
	14.0	100	1310	16508	0.8
4.0	373.3	7.5	91	2210	1.4	NMRV075	112B5/B14	112M2
	280	10	120	2433	1.2	NMRV075	112B5/B14	112M2
	186.7	7.5	180	2785	1.0	NMRV075	112B5/B14	112M4
	140	10	237	3065	0.8	NMRV075	112B5/B14	112M4
	373.3	7.5	93	2446	2.3	NMRV090	112B5/B14	112M2
	280	10	123	2692	1.9	NMRV090	112B5/B14	112M2
	186.7	7.5	182	3081	1.6	NMRV090	112B5	112M4
	140	10	240	3391	1.3
	93.3	15	348	3882	1.0
	70	20	453	4273	0.8

GEAR UNIT SELECTION TABLES
P_1n (kW)	n₂ (r/min)	i	M_2n (Nm)	F_r2 (N)	f_s	Model	IEC Flange	Motor Frame
4.0	140	10	240	4285	2.5	NMRV110	112B5	112M4
	93.3	15	352	4905	1.9
	70	20	464	5399	1.4
	56	25	566	5816	1.2
	46.7	30	647	6181	1.1
	120	7.5	280	4511	2.3	NMRV110	132B5	132M1-6
	90	10	369	4965	1.9
	60	15	535	5684	1.4
	56	25	573	7607	1.6	NMRV130	112B5	112M4
	46.7	30	655	8084	1.6
	35	40	851	8897	1.2
	28	50	1023	9584	1.0
	23.3	60	1195	10185	0.8
	120	7.5	283	5901	3.1	NMRV130	132B5	132M1-6
	90	10	369	6494	2.6
	60	15	541	7434	2.0
	45	20	705	8182	1.5
	36	25	860	8814	1.2
	28	50	1037	13103	1.4	NMRV150	112B5	112M4
	23.3	60	1195	13924	1.1
	17.5	80	1484	15325	0.8
5.5	186.7	7.5	250	3893	2.2	NMRV110	132B5	132S4
	140	10	330	4285	1.8
	93.3	15	484	4905	1.4
	70	20	638	5399	1.0
	140	10	334	5605	2.5	NMRV130	132B5	132S4
	93.3	15	490	6416	1.9
	70	20	638	7062	1.4
	56	25	788	7607	1.2
	46.7	30	900	8084	1.2
	35	40	1171	8897	0.9
	70	20	645	9654	2.0	NMRV150	132B5	132S4
	56	25	788	10400	1.5
	46.7	30	934	11051	1.3
	35.0	40	1171	12163	1.3
	28.0	50	1426	13103	1.0
	23.3	60	1643	13924	0.8
7.5	186.7	7.5	341	3893	1.6	NMRV110	132B5	132M4
	140	10	450	4285	1.3
	93.3	15	660	4905	1.0
	186.7	7.5	345	5092	2.2	NMRV130	132B5	132M4
	140	10	455	5605	1.8
	93.3	15	668	6416	1.4
	70	20	870	7062	1.0
	56	25	1074	7607	0.9
	46.7	30	1228	8084	0.8
	35	40	1596	8897	0.7
	70	20	880	9654	1.5	NMRV150	132B5	132M4
	56	25	1074	10400	1.1
	46.7	30	1274	11051	0.9
	35	40	1596	12163	1.0
11	186.7	7.5	512	6962	2.3	NMRV150	160B5	160M4
	140	10	675	7663	1.8
	93.3	15	990	8771	1.3
	70.0	20	1291	9654	1.0
	56.0	25	1576	10400	0.8
15	186.7	7.5	698	6962	1.7	NMRV150	160B5	160L4
	140	10	921	7663	1.3
	93.3	15	1351	8771	0.9
	70.0	20	1760	9654	0.7

📥 Download PDF Specs

📥 Download STEP Specs

■ Features For NMRV Worm Gearbox with AC Motor

This high-performance NMRV Worm Gearbox with AC Motor features a compact, direct-coupled design that combines a reliable AC motor with a precision worm reduction unit. Encased in a durable die-cast aluminum alloy housing, it delivers excellent heat dissipation, lightweight structural strength, and outstanding corrosion resistance. Inside, a precision-machined bronze worm wheel and hardened alloy steel shaft ensure high torque output, smooth power transmission, and exceptionally quiet, low-vibration operation. Designed with a standardized keyway hollow output shaft and a versatile IEC motor flange, it enables direct shaft mounting and multi-directional installation to optimize spatial efficiency. Furthermore, its inherent self-locking capabilities at higher reduction ratios provide reliable load safety, making it an ideal drive solution for conveyor systems, packaging machinery, food processing equipment, and industrial automation.

Products Catalog

Inquire About This Product

Direct Contact

■ Features For NMRV Worm Gearbox with AC Motor
