Torque arms & Output shafts
· Torque Arms with Vibration Damping.
· Precision-Ground Solid Output Shafts.
· Complete Plug-and-Play Hardware Kit.
· Complete Plug-and-Play Hardware Kit.
| NMRV OUTPUT SHAFT & DIMENSIONS PARAMETER | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NMRV | G1 | K1 | L | L1 | b2 | t2 | d(h6) | m | V1 | V2 |
| 030 | 63 | 64 | 102 | 128 | 5 | 16 | 14 | M6 | 30 | 32.5 |
| 040 | 78 | 82 | 128 | 164 | 6 | 20.5 | 18 | M6 | 40 | 43 |
| 050 | 92 | 99.5 | 153 | 199 | 8 | 28 | 25 | M10 | 50 | 53.5 |
| 063 | 112 | 109.5 | 173 | 219 | 8 | 28 | 25 | M10 | 50 | 53.5 |
| 075 | 120 | 123.5 | 192 | 247 | 8 | 31 | 28 | M10 | 60 | 63.5 |
| 090 | 140 | 154.5 | 234 | 309 | 10 | 38 | 35 | M12 | 80 | 84.5 |
| 110 | 155 | 162 | 249 | 324 | 12 | 45 | 42 | M16 | 80 | 84.5 |
| 130 | 170 | 170 | 265 | 340 | 14 | 48.5 | 45 | M16 | 80 | 85 |
| 150 | 200 | 187 | 297 | 374 | 14 | 53.5 | 50 | M16 | 82 | 87 |

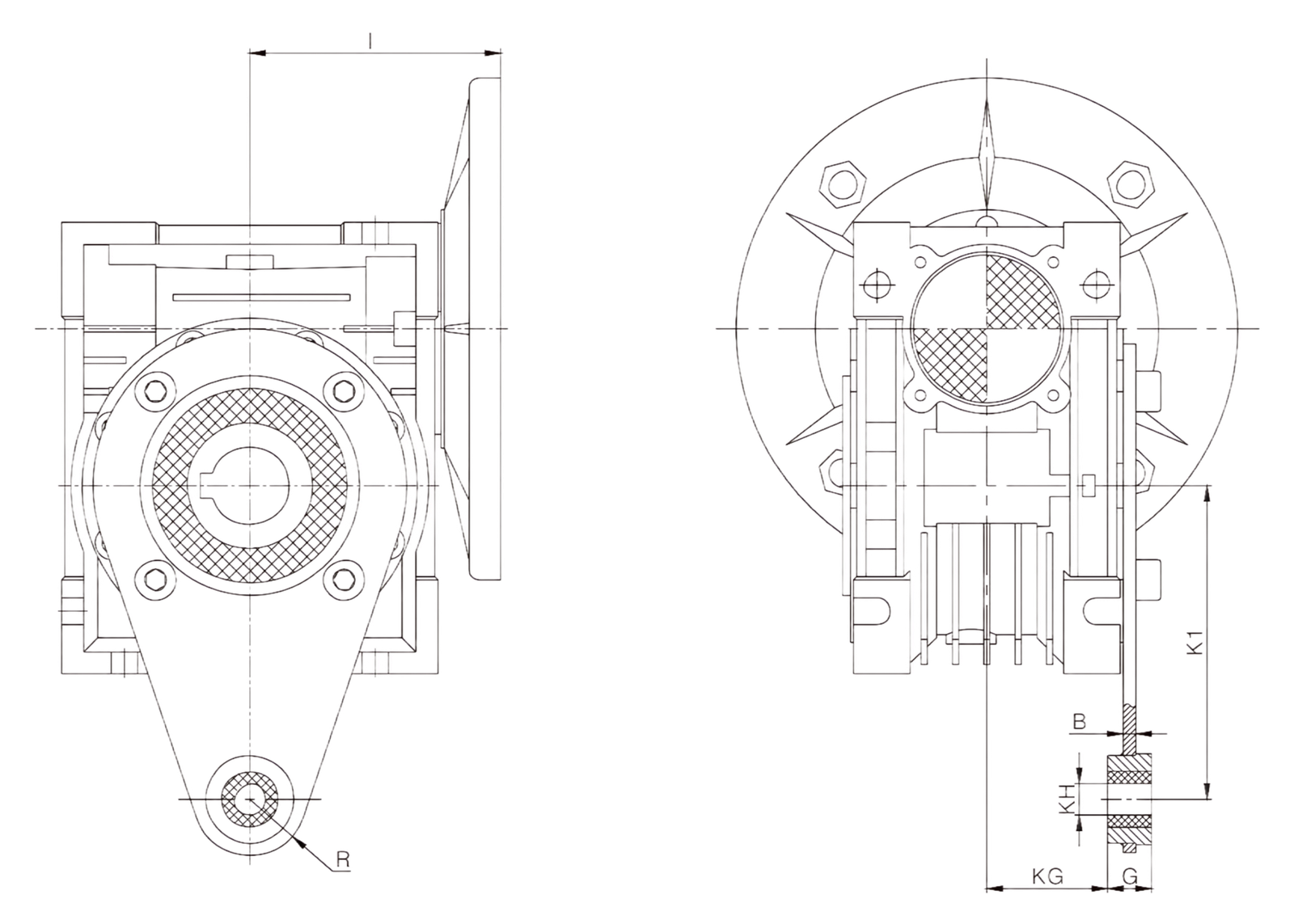

| NMRV TORQUE ARM & DIMENSIONS PARAMETER | |||||||
|---|---|---|---|---|---|---|---|
| NMRV | B | I | K1 | G | KG | KH | R |
| 025 | 4 | 45 | 70 | 14 | 17.5 | 8 | 15 |
| 030 | 4 | 55 | 85 | 14 | 24 | 8 | 15 |
| 040 | 4 | 70 | 100 | 14 | 31.5 | 10 | 18 |
| 050 | 4 | 80 | 100 | 14 | 38.5 | 10 | 18 |
| 063 | 6 | 95 | 150 | 14 | 49 | 10 | 18 |
| 075 | 6 | 112.5 | 200 | 25 | 47.5 | 20 | 30 |
| 090 | 6 | 129.5 | 200 | 25 | 57.5 | 20 | 30 |
| 110 | 6 | 160 | 250 | 30 | 62 | 25 | 35 |
| 130 | 6 | 179 | 250 | 30 | 69 | 25 | 35 |
| 150 | 8 | 210 | 250 | 30 | 84 | 25 | 35 |

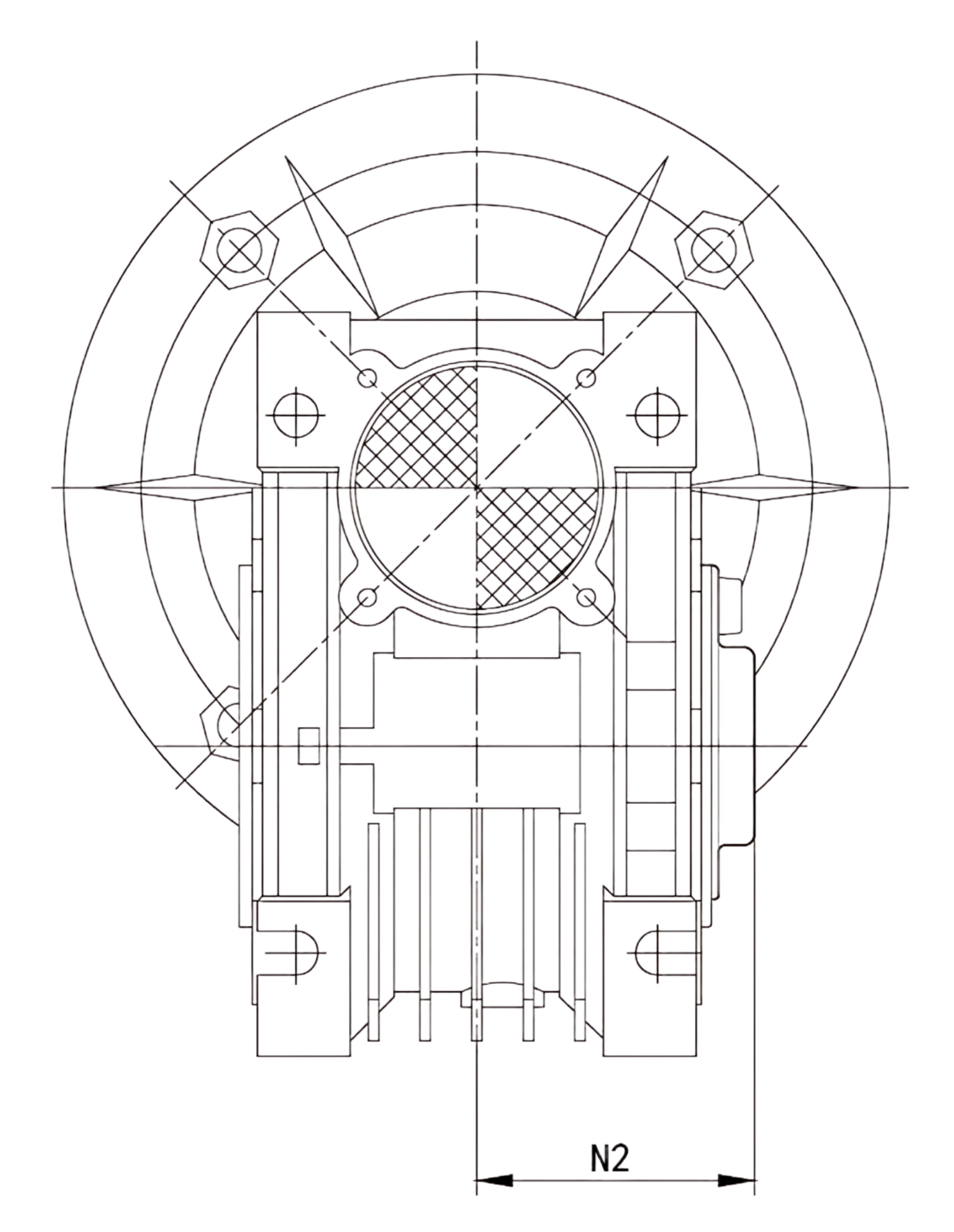

| NMRV COVER | |
|---|---|
| NMRV | N2 |
| 030 | 42 |
| 040 | 50 |
| 050 | 58 |
| 063 | 69 |
| 075 | 74 |
| 090 | 85 |
| 110 | 94 |
| 130 | 102 |
| 150 | 117 |
■ Features For Torque arm & Output shaft

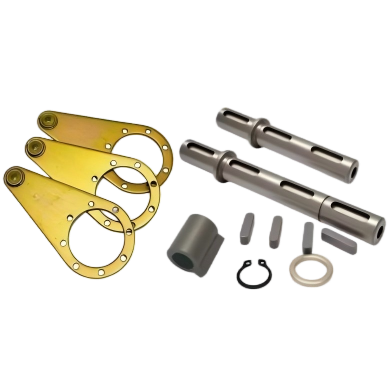

Designed specifically for NMRV series worm gearboxes, these high-grade torque arms and plug-in output shaft kits offer maximum versatility for modular power transmission systems. The heavy-duty steel torque arms feature an anti-corrosion zinc-plated finish and integrated rubber dampers, effectively cushioning operational shock and eliminating the requirement for rigid foot mounting. Complementing the mounting arms, the precision-machined alloy steel solid output shafts—available in both single and double shaft extensions—allow instant conversion of hollow-bore gearboxes into solid shaft drives. Supplied complete with drive keys, circlips, and spacer sleeves, these essential accessories ensure rapid assembly, reliable torque transfer, and long service life in automated machinery, conveyors, and industrial processing systems.
