PLEK Series

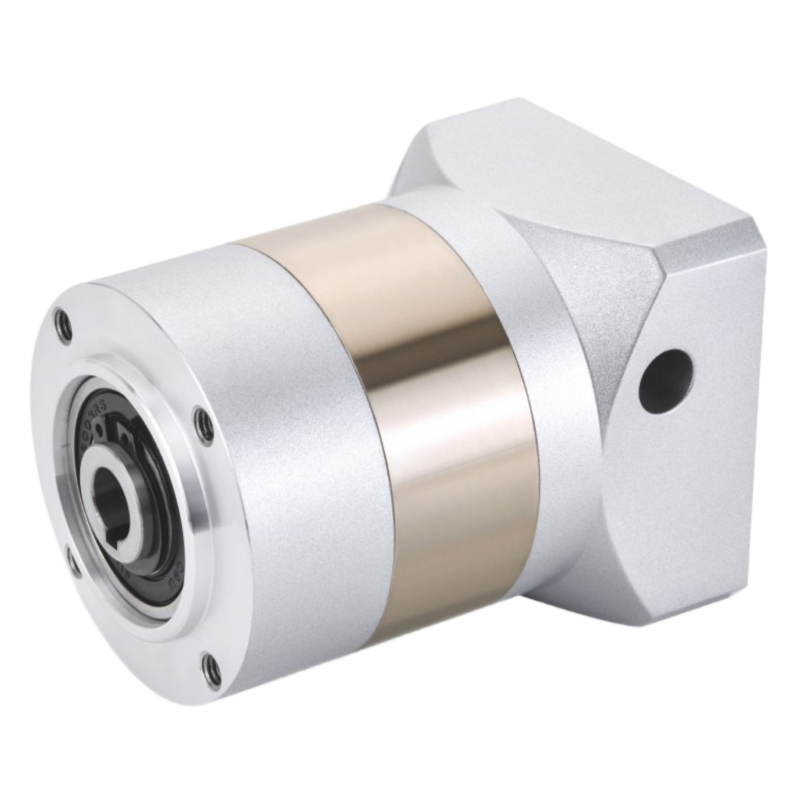

plek spur gear planetary gearbox yc motor

· Advanced Spur Gear Heat Treatment.

· High Cost Performance & Rapid Delivery.

· Complete Range & Market Versatility.

· Full Size Coverage (PLEK060 – PLEK120).

Gearbox Performance Information
Model	Unit	PLEK060	PLEK090	PLEK120	Ratio	Stage
Rated Output Torque	N·m	16.5	60	148	3	1
		27	86	222	4
		27	94.5	235	5
		19.5	64	158	7
		8.5	39.5	93	10
		-	96	250	12	2
		-	96	250	15
		30	96	250	16
		30	96	250	20
		33	105.5	264	25
		30	96	250	28
		33	105.5	264	35
		30	96	250	40
		33	105.5	264	50
		21.5	71.5	177	70
		37.5	120	310	64	3
		37.5	120	310	80
		37.5	120	310	100
		41.0	132.5	329	125
		37.5	120	310	140
		41.0	132.5	329	175
		37.5	120	310	200
		41.0	132.5	329	250
		37.5	120	310	280
		41.0	132.5	329	350
Emergency Stop Torque	N·m	2 times Rated Output Torque			-	-
Nominal Input Speed	rpm	3000	3000	2000	-	-
Maximum Input Speed	rpm	6000	6000	3500	-	-
Maximum Radial Force	N	170	1020	2230	-	-
Maximum Axial Force	N	120	850	1550	-	-
Efficiency	%	Single [97%] / Double [95%]			-	-
Average Lifetime	h	20000			-	-
Moment of Inertia	kgcm²	0.107	0.4	1.65	3	1
		0.094	0.309	1.22	4
		0.092	0.291	1.15	5
		0.091	0.285	1.13	7
		0.091	0.283	1.11	10
		-	0.4	1.65	12	2
		-	0.309	1.65	15
		0.094	0.291	1.22	16
		0.092	0.291	1.15	20
		0.092	0.291	1.15	25
		0.091	0.285	1.13	28
		0.091	0.285	1.13	35
		0.091	0.2835	1.11	40
		0.091	0.283	1.11	50
		0.091	0.283	1.11	70
		0.092	0.291	1.15	64	3
		0.092	0.291	1.15	80
		0.092	0.291	1.15	100
		0.092	0.291	1.15	125
		0.091	0.291	1.13	140
		0.091	0.291	1.13	175
		0.091	0.283	1.11	200
		0.091	0.283	1.11	250
Noise	dB	60	65	68	-	-
Lubrication	-	Synthetic grease lubrication			-	-
Protection Level	-	IP65			-	-
Weight	kg	1.4	4.7	6.9	-	1
		1.6	5.3	8.9	-	2
		1.8	5.9	11.2	-	3

📥 Download PDF Specs 📥 Download STEP Specs

■ Features For PLEK Series Planetaty Gearbox ( Spur Gear )

The PLEK Series Inline Planetary Gearbox is a high-precision coaxial motion control solution featuring a round flange output design engineered for direct coupling with AC servo motors and stepper motors. Its straight-through inline architecture directly aligns input and output drive axes, achieving high power transmission efficiency exceeding 95% along with excellent output torque. Crafted with high-strength alloy steel spur gears treated with carburizing, quenching, and precision tooth profile modification, this gearbox provides superior tooth surface durability, smooth meshing, and low-vibration performance during continuous duty. To satisfy broad industrial automation requirements, the series covers a complete line of standard frame sizes, including PLEK060, PLEK090, PLEK120. With its precise mounting positioning, long service life, and high cost performance, the PLEK round-flange planetary gearbox is an ideal choice for packaging lines, CNC equipment, automated assembly systems, and precision positioning machinery.
