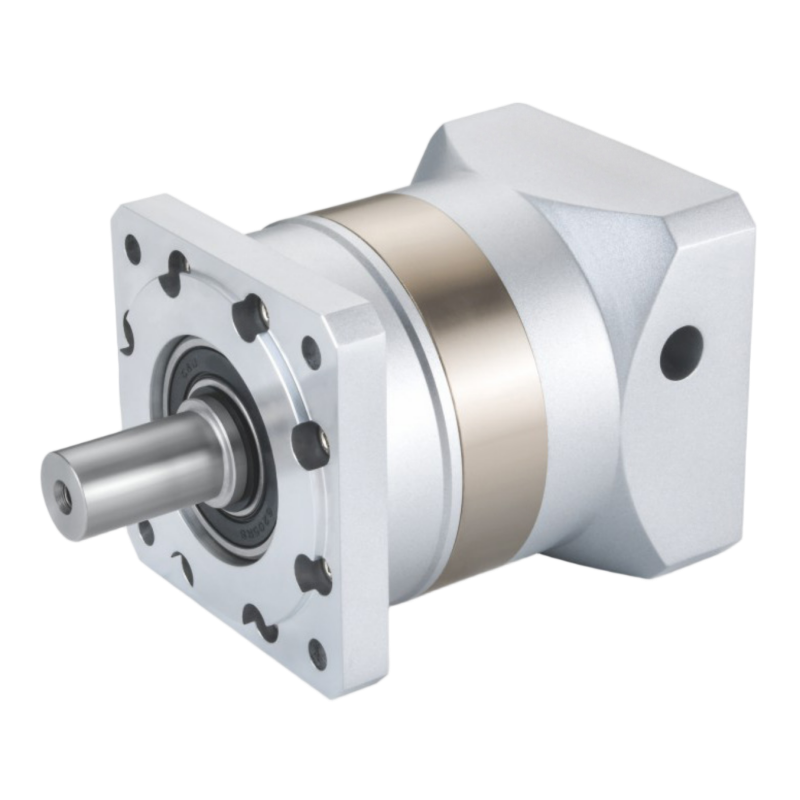

PLF Series
· Advanced Spur Gear Heat Treatment.
· High Cost Performance & Rapid Delivery.
· Complete Range & Market Versatility.
· Full Size Coverage (PLF060 – PLF160).
| Gearbox Performance Information | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Unit | PLF060 | PLF080 | PLF090 | PLF120 | PLF160 | Ratio | Stage |
| Rated Output Torque | N·m | 16.5 | 60 | 60 | 148 | 310 | 3 | 1 |
| 27 | 86 | 86 | 222 | 605 | 4 | |||
| 27 | 94.5 | 94.5 | 235 | 420 | 5 | |||
| 19.5 | 64 | 64 | 158 | (270) | 7(8) | |||
| 8.5 | 39.5 | 39.5 | 93 | - | 10 | |||
| - | 96 | 96 | 250 | 680 | 12 | 2 | ||
| - | 96 | 96 | 250 | - | 15 | |||
| 30 | 96 | 96 | 250 | 680 | 16 | |||
| 30 | 96 | 96 | 250 | 680 | 20 | |||
| 33 | 105.5 | 105.5 | 264 | 460 | 25 | |||
| 30 | 96 | 96 | 250 | (680) | 28(32) | |||
| 33 | 105.5 | 105.5 | 264 | - | 35 | |||
| 30 | 96 | 96 | 250 | 460 | 40 | |||
| 33 | 105.5 | 105.5 | 264 | (310) | 50(64) | |||
| 21.5 | 71.5 | 71.5 | 177 | - | 70 | |||
| 37.5 | 120 | 120 | 310 | 900 | 64 | 3 | ||
| 37.5 | 120 | 120 | 310 | 900 | 80 | |||
| 37.5 | 120 | 120 | 310 | 900 | 100 | |||
| 41.0 | 132.5 | 132.5 | 329 | 580 | 125 | |||
| 37.5 | 120 | 120 | 310 | (580) | 140(160) | |||
| 41.0 | 132.5 | 132.5 | 329 | - | 175 | |||
| 37.5 | 120 | 120 | 310 | 580 | 200 | |||
| 41.0 | 132.5 | 132.5 | 329 | (900) | 250(256) | |||
| 37.5 | 120 | 120 | 310 | (580) | 280(320) | |||
| 41.0 | 132.5 | 132.5 | 329 | (400) | 350(512) | |||
| Emergency Stop Torque | N·m | 2 times Rated Output Torque | - | - | ||||
| Nominal Input Speed | rpm | 3000 | 3000 | 3000 | 2000 | 2000 | - | - |
| Maximum Input Speed | rpm | 6000 | 6000 | 6000 | 3500 | 3500 | - | - |
| Maximum Radial Force | N | 170 | 1020 | 1020 | 2230 | 3200 | - | - |
| Maximum Axial Force | N | 120 | 850 | 850 | 1550 | 3000 | - | - |
| Efficiency | % | Single [97%] | Double [95%] | - | - | |||
| Moment of Inertia | kgcm² | 0.107 | 0.4 | 0.4 | 1.65 | 4.31 | 3 | 1 |
| 0.094 | 0.309 | 0.309 | 1.22 | 5.15 | 4 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 5 | |||
| 0.091 | 0.285 | 0.285 | 1.13 | (4.84) | 7(8) | |||
| 0.091 | 0.283 | 0.283 | 1.11 | - | 10 | |||
| - | 0.4 | 0.4 | 1.65 | 6.31 | 12 | 2 | ||
| - | 0.309 | 0.309 | 1.65 | - | 15 | |||
| 0.094 | 0.291 | 0.291 | 1.22 | 5.15 | 16 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 20 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 25 | |||
| 0.091 | 0.285 | 0.285 | 1.13 | (4.84) | 28(32) | |||
| 0.091 | 0.285 | 0.285 | 1.13 | - | 35 | |||
| 0.091 | 0.2835 | 0.2835 | 1.11 | 4.84 | 40 | |||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 50(64) | |||
| 0.091 | 0.283 | 0.283 | 1.11 | - | 70 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 64 | 3 | ||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 80 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.93 | 100 | |||
| 0.092 | 0.291 | 0.291 | 1.15 | 4.84 | 125 | |||
| 0.091 | 0.291 | 0.291 | 1.13 | (4.84) | 140(160) | |||
| 0.091 | 0.291 | 0.291 | 1.13 | - | 175 | |||
| 0.091 | 0.283 | 0.283 | 1.11 | 4.84 | 200 | |||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 250(256) | |||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 280(320) | |||
| 0.091 | 0.283 | 0.283 | 1.11 | (4.84) | 350(512) | |||
| Noise | dB | 60 | 65 | 65 | 68 | 70 | - | - |
| Lubrication | - | Synthetic grease lubrication | - | - | ||||
| Protection Level | - | IP65 | - | - | ||||
| Average Lifetime | h | 20000 | - | - | ||||
| Weight | kg | 1.4 | 3.7 | 4.7 | 6.9 | 19 | - | 1 |
| 1.6 | 4.2 | 5.3 | 8.9 | 25 | - | 2 | ||
| 1.8 | 4.7 | 5.9 | 11.2 | 31 | - | 3 | ||
■ Features For PLF Series Planetaty Gearbox ( Spur Gear )
The PLF Series Planetary Gearbox is a highly versatile, cost-effective motion control solution engineered to meet the broad demands of modern industrial automation. Utilizing straight tooth spur gear transmission treated with advanced carburizing, quenching, and tooth profile modification, this gearbox delivers reliable torque transfer, smooth engagement, and exceptionally low operating noise. Designed with a simplified structure optimized for mass production, the series achieves outstanding cost performance while guaranteeing fast delivery times for volume orders. To serve as a universal drive option across diverse industries, the lineup covers a complete range of specifications, including the PLF060, PLF080, PLF090, PLF120, and PLF160 frame sizes. This extensive size availability ensures hassle-free integration with most standard servo and stepper motors found in packaging, CNC machinery, robotics, and material handling systems.
