PLFS - YC Motor

PLFS Series

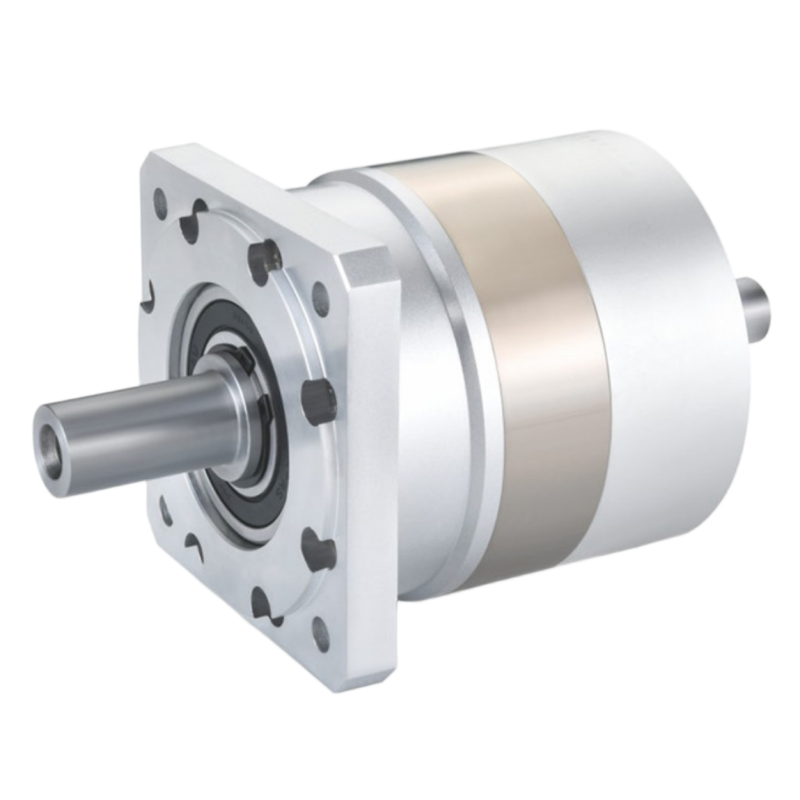

plfs spur gear planetary gearbox yc motor

· Advanced Spur Gear Heat Treatment.

· High Cost Performance & Rapid Delivery.

· Complete Range & Market Versatility.

· Full Size Coverage (PLFS060 – PLFS160).

PLFS Series Gearbox Performance Information
Model	Unit	PLFS060	PLFS090	PLFS120	PLFS160	Ratio	Stage
Rated Output Torque	N·m	16.5	60	148	310	3	1
		27	86	222	605	4
		27	94.5	235	420	5
		19.5	64	158	270	7(8)
		8.5	39.5	93	-	10
		-	96	250	680	12	2
		-	96	250	-	15
		30	96	250	680	16
		30	96	250	680	20
		33	105.5	264	460	25
		30	96	250	680	28(32)
		33	105.5	264	-	35
		30	96	250	460	40
		33	105.5	264	-	50
		21.5	71.5	177	310	70(64)
		37.5	120	310	900	64	3
		37.5	120	310	900	80
		37.5	120	310	900	100
		41.0	132.5	329	580	125
		37.5	120	310	-	140
		41.0	132.5	329	580	175(160)
		37.5	120	310	580	200
		41.0	132.5	329	900	250(256)
		37.5	120	310	580	280(320)
		41.0	132.5	329	400	350(512)
Emergency Stop Torque	N·m	2 times Rated Output Torque				-	-
Nominal Input Speed	rpm	3000	3000	2000	2000	-	-
Maximum Input Speed	rpm	6000	6000	3500	3500	-	-
Maximum Radial Force	N	170	1020	2230	3200	-	-
Maximum Axial Force	N	120	850	1550	3000	-	-
Efficiency	%	Single [97%] / Double [95%]				-	-
Average Lifetime	h	20000				-	-
Weight	kg	1.4	4.7	6.9	19	-	1
		1.6	5.3	8.9	25	-	2
		1.8	5.9	11.2	31	-	3
Moment of Inertia	kgcm²	0.107	0.4	1.65	4.31	3	1
		0.094	0.309	1.22	5.15	4
		0.092	0.291	1.15	4.93	5
		0.091	0.285	1.13	4.84	7(8)
		0.091	0.283	1.11	-	10
		-	0.4	1.65	6.31	12	2
		-	0.309	1.65	-	15
		0.094	0.291	1.22	5.15	16
		0.092	0.291	1.15	4.93	20
		0.092	0.291	1.15	4.93	25
		0.091	0.285	1.13	4.84	28(32)
		0.091	0.285	1.13	-	35
		0.091	0.2835	1.11	4.84	40
		0.091	0.283	1.11	-	50
		0.091	0.283	1.11	4.84	70(64)
		0.092	0.291	1.15	4.93	64	3
		0.092	0.291	1.15	4.93	80
		0.092	0.291	1.15	4.93	100
		0.092	0.291	1.15	4.84	125
		0.091	0.291	1.13	-	140
		0.091	0.291	1.13	4.84	175(160)
		0.091	0.283	1.11	4.84	200
		0.091	0.283	1.11	4.84	250(256)
		0.091	0.283	1.11	4.84	280(320)
		0.091	0.283	1.11	4.84	350(512)
Noise	dB	60	65	68	70	-	-
Lubricating	-	Synthetic grease lubrication				-	-
Levels of Protection	-	IP65				-	-

📥 Download PDF Specs 📥 Download STEP Specs

■ Features For PLFS Series Planetaty Gearbox ( Spur Gear )

The PLFS Series Inline Planetary Gearbox is a high-performance coaxial motion control solution engineered for precision integration with AC servo motors and stepper motors. Featuring a straight-through inline architecture and a sturdy square output flange, this series enhances overall structural rigidity and mounting stability while achieving power transmission efficiency exceeding 95%. Internal precision planetary gears undergo rigorous carburizing, quenching, and tooth profile modification, ensuring maximum torque output, reduced wear, and quiet, low-vibration operation during continuous duty. To meet broad industrial automation requirements—from light positioning stages to heavy-duty automation—the series encompasses a complete range of frame sizes, including PLFS060, PLFS090, PLFS120, and PLFS160. With its high concentricity, durable build quality, and exceptional cost performance, the PLFS planetary gearbox is widely applied in packaging machinery, CNC equipment, automated assembly lines, industrial robotics, and precision drive systems.
