PLS Series

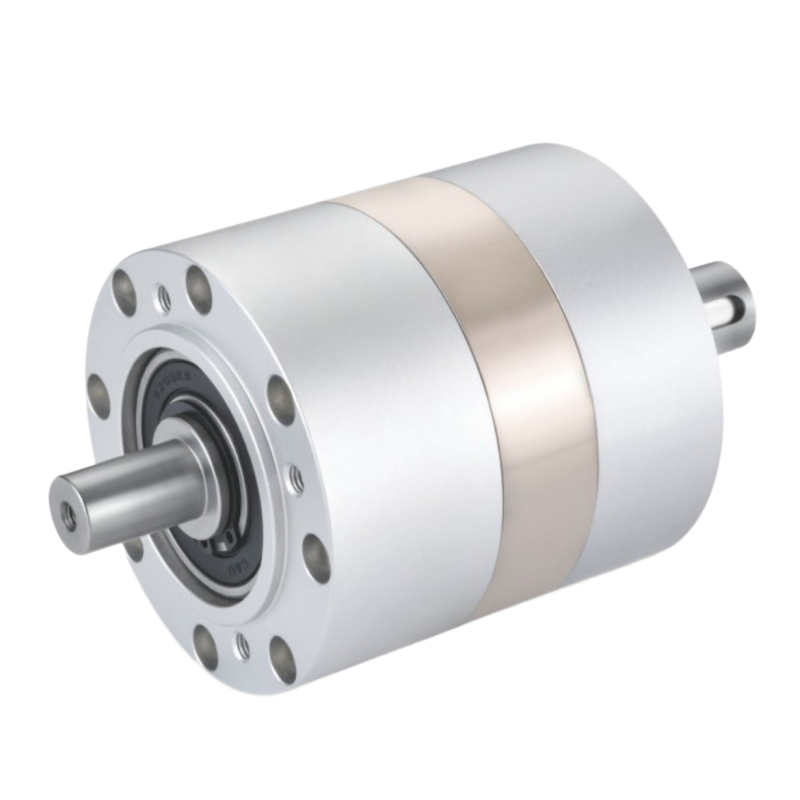

pls spur gear planetary gearbox yc motor

· Advanced Spur Gear Heat Treatment.

· High Cost Performance & Rapid Delivery.

· Complete Range & Market Versatility.

· Full Size Coverage (PLS060 – PLS160).

PLS Series Gearbox Performance Information
Model	Unit	PLS060	PLS090	PLS120	PLS160	Ratio	Stage
Rated Output Torque	N·m	16.5	60	148	310	3	1
		27	86	222	605	4
		27	94.5	235	420	5
		19.5	64	158	270	7(8)
		8.5	39.5	93	-	10
		-	96	250	680	12	2
		-	96	250	-	15
		30	96	250	680	16
		30	96	250	680	20
		33	105.5	264	460	25
		30	96	250	680	28(32)
		33	105.5	264	-	35
		30	96	250	460	40
		33	105.5	264	-	50
		21.5	71.5	177	310	70(64)
		37.5	120	310	900	64	3
		37.5	120	310	900	80
		37.5	120	310	900	100
		41.0	132.5	329	580	125
		37.5	120	310	-	140
		41.0	132.5	329	580	175(160)
		37.5	120	310	580	200
		41.0	132.5	329	900	250(256)
		37.5	120	310	580	280(320)
		41.0	132.5	329	400	350(512)
Emergency Stop Torque	N·m	2 times Rated Output Torque				-	-
Nominal Input Speed	rpm	3000	3000	2000	2000	-	-
Maximum Input Speed	rpm	6000	6000	3500	3500	-	-
Maximum Radial Force	N	170	1020	2230	3200	-	-
Maximum Axial Force	N	120	850	1550	3000	-	-
Efficiency	%	Single [97%] / Double [95%]				-	-
Average Lifetime	h	20000				-	-
Weight	kg	1.4	4.7	6.9	19	-	1
		1.6	5.3	8.9	25	-	2
		1.8	5.9	11.2	31	-	3
Moment of Inertia	kgcm²	0.107	0.4	1.65	4.31	3	1
		0.094	0.309	1.22	5.15	4
		0.092	0.291	1.15	4.93	5
		0.091	0.285	1.13	4.84	7(8)
		0.091	0.283	1.11	-	10
		-	0.4	1.65	6.31	12	2
		-	0.309	1.65	-	15
		0.094	0.291	1.22	5.15	16
		0.092	0.291	1.15	4.93	20
		0.092	0.291	1.15	4.93	25
		0.091	0.285	1.13	4.84	28(32)
		0.091	0.285	1.13	-	35
		0.091	0.2835	1.11	4.84	40
		0.091	0.283	1.11	-	50
		0.091	0.283	1.11	4.84	70(64)
		0.092	0.291	1.15	4.93	64	3
		0.092	0.291	1.15	4.93	80
		0.092	0.291	1.15	4.93	100
		0.092	0.291	1.15	4.84	125
		0.091	0.291	1.13	-	140
		0.091	0.291	1.13	4.84	175(160)
		0.091	0.283	1.11	4.84	200
		0.091	0.283	1.11	4.84	250(256)
		0.091	0.283	1.11	4.84	280(320)
		0.091	0.283	1.11	4.84	350(512)
Noise	dB	60	65	68	70	-	-
Lubricating	-	Synthetic grease lubrication				-	-
Levels of Protection	-	IP65				-	-

📥 Download PDF Specs 📥 Download STEP Specs

■ Features For PLS Series Planetaty Gearbox ( Spur Gear )

The PLS Series Inline Planetary Gearbox is a high-performance precision transmission component engineered for seamless integration with AC servo motors and stepper motors. Featuring a straight-through inline architecture and a round flange face-mounting design, it significantly reduces axial space requirements while providing superior concentricity and structural mounting rigidity, achieving power transmission efficiency exceeding 95%. Internal precision planetary gears undergo rigorous carburizing, quenching, and tooth profile modification, ensuring high torque output, exceptional wear resistance, and smooth, quiet operation. To meet diverse load demands across industrial automation, the PLS series covers a full range of standard frame sizes, including PLS060, PLS090, PLS120, and PLS160. With its precise positioning capability, long-term durability, and high cost performance, the PLS planetary gearbox is widely applied in packaging machinery, CNC equipment, automated assembly lines, semiconductor manufacturing, and precision drive systems.
