PLX - YC Motor

PLX Series

plx spur gear planetary gearbox yc motor

· Advanced Spur Gear Heat Treatment.

· High Cost Performance & Rapid Delivery.

· Complete Range & Market Versatility.

· Full Size Coverage (PLX042 – PLX330).

PLX Series Gearbox Performance Information
Model	Unit	PLX042	PLX142	PLX190	PLX242	PLX285	PLX330	Ratio	Stage
Rated Output Torque	N·m	8	310	-	-	-	-	3	1
		9	605	1780	3200	5800	10190	4
		9	420	1345	2500	4400	7180	5
		7	270	745	1360	2595	4080	8
		-	680	2035	-	-	-	12	2
		12	680	2035	3390	6400	10800	16
		12	680	2035	3390	6400	10800	20
		10.5	460	1485	2650	4710	7550	25
		12	680	2035	3390	6400	10800	32
		10.5	460	1485	2650	4710	7550	40
		8	310	840	1450	4710	4430	64
		15.5	900	2035	3390	8130	13700	64	3
		15.5	900	2590	4420	8130	13700	80
		15.5	900	2590	3420	9130	13700	100
		15.5	580	1855	3420	6030	9800	125
		15.5	580	2590	4420	8130	13700	160
		13.5	580	1855	3420	6030	9800	200
		15.5	900	2590	4420	6030	9800	256
		13.5	580	1855	3420	6030	9800	320
		9.5	400	1070	1840	3560	8450	512
Emergency Stop Torque	N·m	2 times Rated Output Torque						-	-
Nominal Input Speed	rpm	3000	2000	1500	1000	1000	1000	-	-
Maximum Input Speed	rpm	6000	3500	2500	1500	1500	1500	-	-
Maximum Radial Force	N	185	3200	13000	12000	15000	17000	-	-
Maximum Axial Force	N	150	3000	20000	6400	12000	15000	-	-
Efficiency	%	Single [97%] / Double [95%]						-	-
Average Lifetime	h	20000						-	-
Weight	kg	0.5	17	42	71	113	245	-	1
		0.6	23	50	75	136	290	-	2
		0.7	29	58	92	140	326	-	3
Moment of Inertia	kgcm²	0.022	4.31	-	-	-	-	3	1
		0.022	5.15	15.6	34.6	34.5	65.4	4
		0.019	4.93	15.6	34.6	34.5	65.4	5
		0.017	4.84	15.6	34.6	34.5	65.4	8
		-	6.31	6.31	-	-	-	12	2
		0.022	5.15	5.15	15.6	38.5	68.5	16
		0.019	4.93	4.93	15.6	38.5	68.5	20
		0.019	4.93	4.93	15.6	38.5	68.5	25
		0.017	4.84	4.84	15.6	38.5	68.5	32
		0.016	4.84	4.84	15.6	38.5	68.5	40
		0.016	4.84	4.84	15.6	38.5	68.5	64
		0.019	4.93	4.93	15.6	38.5	73.4	64	3
		0.019	4.93	4.93	15.6	38.5	73.4	80
		0.019	4.93	4.93	15.6	38.5	73.4	100
		0.029	4.84	4.84	15.6	38.5	73.4	125
		0.016	4.84	4.84	15.6	38.5	73.4	160
		0.016	4.84	4.84	15.6	38.5	73.4	200
		0.016	4.84	4.84	15.6	38.5	73.4	256
		0.016	4.84	4.84	15.6	38.5	73.4	320
		0.016	4.84	4.84	15.6	38.5	73.4	512
Noise	dB	60	70	70	70	70	70	-	-
Lubricating	-	Synthetic grease lubrication						-	-
Levels of Protection	-	IP65						-	-

📥 Download PDF Specs 📥 Download STEP Specs

■ Features For PLX Series Planetaty Gearbox ( Spur Gear )

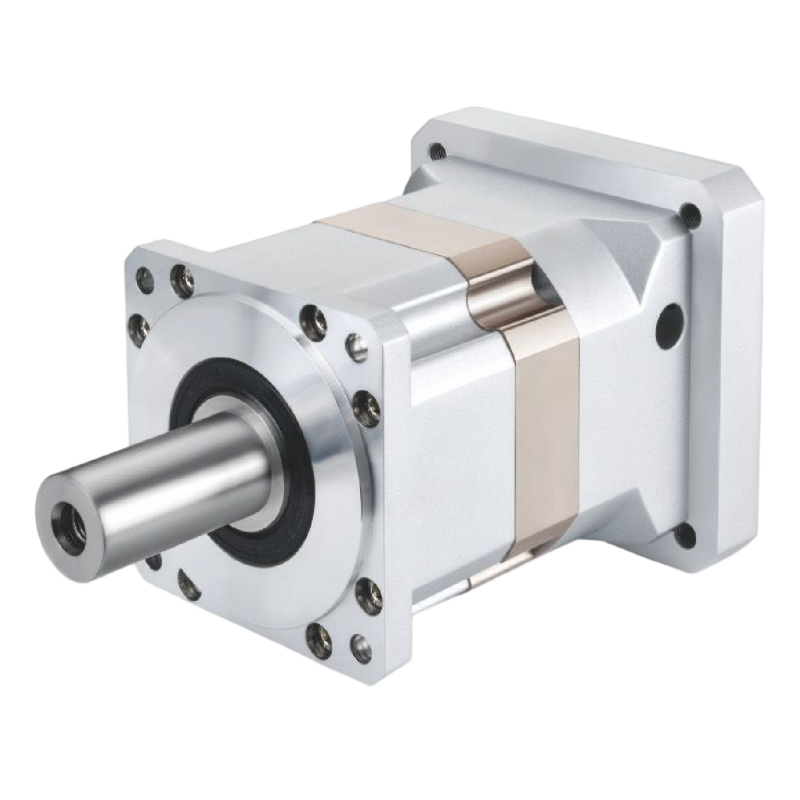

The PLX Series Inline Planetary Gearbox is a high-performance precision motion control solution engineered for direct integration with AC servo motors and stepper motors. Featuring a straight-through inline architecture paired with a high-rigidity square output flange, this series delivers high positioning accuracy, exceptional resistance to bending moments, and power transmission efficiency exceeding 95%. Internal precision planetary gears undergo rigorous carburizing, quenching, and tooth profile modification, ensuring maximum output torque, superior wear resistance, and smooth, low-vibration operation during continuous duty cycles. To satisfy broad industrial automation requirements—from compact positioning drives to heavy-duty automated machinery—the series encompasses a complete range of frame sizes, including PLX042, PLX142, PLX190, PLX242, PLX285, and PLX330. With its robust build quality, high concentricity, and outstanding cost performance, the PLX planetary gearbox is widely applied in packaging machinery, CNC equipment, automated assembly lines, industrial robotics, and precision motion control systems.
