ZPT Series

zpt spur gear planetary gearbox yc motor

· Advanced Spur Gear Heat Treatment.

· High Cost Performance & Rapid Delivery.

· Complete Range & Market Versatility.

· Full Size Coverage (ZPT,ZPTK,ZPTS,ZPSK).

ZPT Series Gearbox Performance Information
Model	Unit	ZPT070	ZPT090	ZPT110	ZPT140	Ratio	Stage
Rated Output Torque	N·m	-	45	80	170	1	1
		35	-	-	-	2
		-	45	80	170	3
		-	45	80	170	4
		-	45	80	170	5
		-	45	80	170	7
		35	-	-	-	8
		35	45	80	170	10
		-	45	80	170	12	2
		35	-	-	-	14
		-	45	80	170	15
		-	45	80	170	16
		35	45	80	170	20
		-	45	80	170	25
		-	45	80	170	28
		35	-	-	-	32
		-	45	80	170	35
		35	45	80	170	40
		35	45	80	170	50
		35	-	-	-	56
		35	45	80	170	70
		-	45	80	170	64	3
		35	45	80	170	80
		35	45	80	170	100
		-	45	80	170	125
		35	45	80	170	140
		-	45	80	170	175
		-	45	80	170	200
		-	45	80	170	250
		-	45	80	170	280
		-	45	80	170	350
Emergency Stop Torque	N·m	2 times Rated Output Torque				-	-
Nominal Input Speed	rpm	3000	2500	2000	2000	-	-
Maximum Input Speed	rpm	4000	3500	3000	3000	-	-
Maximum Radial Force	N	950	1450	2100	2700	-	-
Maximum Axial Force	N	425	725	1050	1350	-	-
Efficiency	%	Single [97%] / Double [95%]				-	-
Average Lifetime	h	20000				-	-
Weight	kg	4.2	6.8	11.6	19.8	-	1
		4.6	7.4	13.8	23.9	-	2
		-	8.0	16.0	28.0	-	3
Moment of Inertia	kgcm²	-	0.4	0.4	1.65	3	1
		-	0.309	0.309	1.22	4
		-	0.291	0.291	1.15	5
		-	0.285	0.285	1.13	7
		0.094	-	-	-	8
		0.092	0.283	0.283	1.13	10
		-	0.4	0.4	1.65	12	2
		0.092	-	-	-	14
		-	0.309	0.309	1.22	15
		-	0.291	0.291	1.22	16
		0.091	0.291	0.291	1.15	20
		-	0.291	0.291	1.15	25
		-	0.285	0.285	1.13	28
		0.094	-	-	-	32
		-	0.285	0.285	1.13	35
		0.092	0.283	0.283	1.11	40
		0.092	0.285	0.285	1.11	50
		0.091	-	-	-	56
		0.091	0.285	0.285	1.11	70
		-	0.291	0.291	1.15	64	3
		0.091	0.291	0.291	1.15	80
		0.091	0.291	0.291	1.15	100
		-	0.291	0.291	1.15	125
		0.091	0.285	0.285	1.13	140
		-	0.285	0.285	1.13	175
		-	0.283	0.283	1.11	200
		-	0.283	0.283	1.11	250
		-	0.283	0.283	1.11	280
		-	0.283	0.283	1.11	350
Noise	dB	70	70	70	70	-	-
Lubricating	-	Synthetic grease lubrication				-	-
Levels of Protection	-	IP65				-	-

📥 Download PDF Specs 📥 Download STEP Specs

■ Features For ZPLT Series Planetaty Gearbox ( Spur Gear )

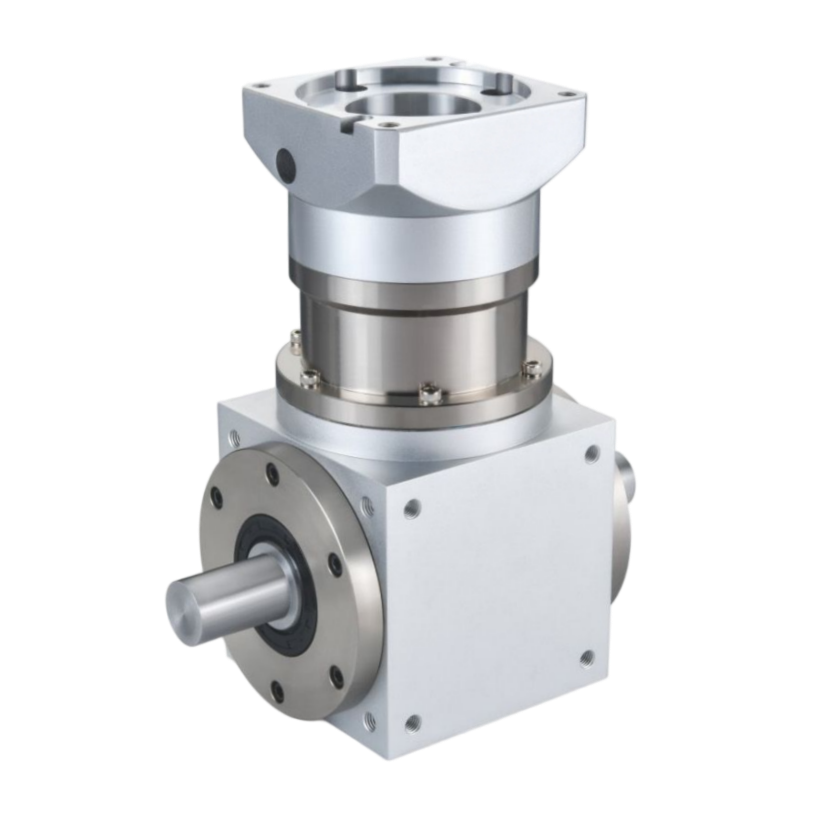

The ZPT Series Right-Angle Planetary Gearbox is a high-performance 90° corner motion control solution engineered specifically for demanding industrial automation and precision drive systems. Featuring a rugged cubic housing and high-efficiency right-angle transmission layout, the ZPT series effectively solves restricted axial space constraints while offering multi-face mounting flexibility. Internal high-strength alloy steel spiral bevel gears paired with precision planetary gearing undergo rigorous carburizing, quenching, and tooth profile modification, guaranteeing high surface hardness, strong torque density, and exceptional positioning accuracy. Equipped with a high-rigidity round output flange, it ensures structural mounting stability and reliable load-carrying capacity against heavy external forces. To satisfy broad load requirements across automated lines, the series encompasses a full range of standard frame sizes, including ZPT, ZPTK, ZPTS, and ZPSK. With its precise positioning control, long-term durability, and outstanding cost performance, the ZPT right-angle planetary gearbox is widely applied in packaging machinery, CNC machine tools, industrial robotics, automated assembly lines, and precision motion control systems.
